Overview

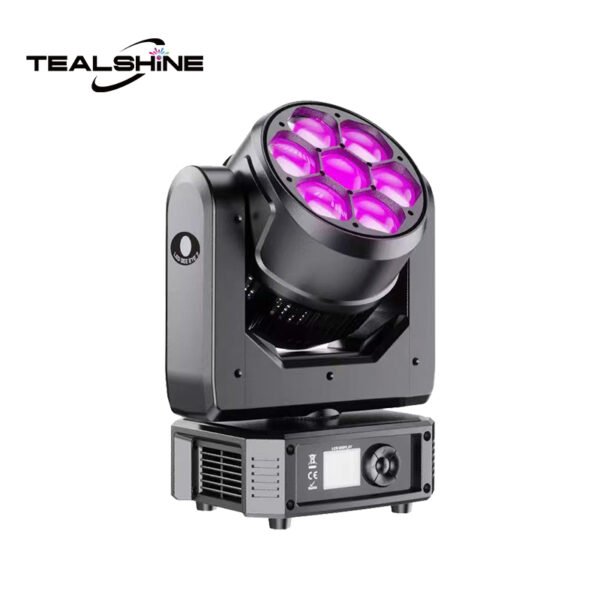

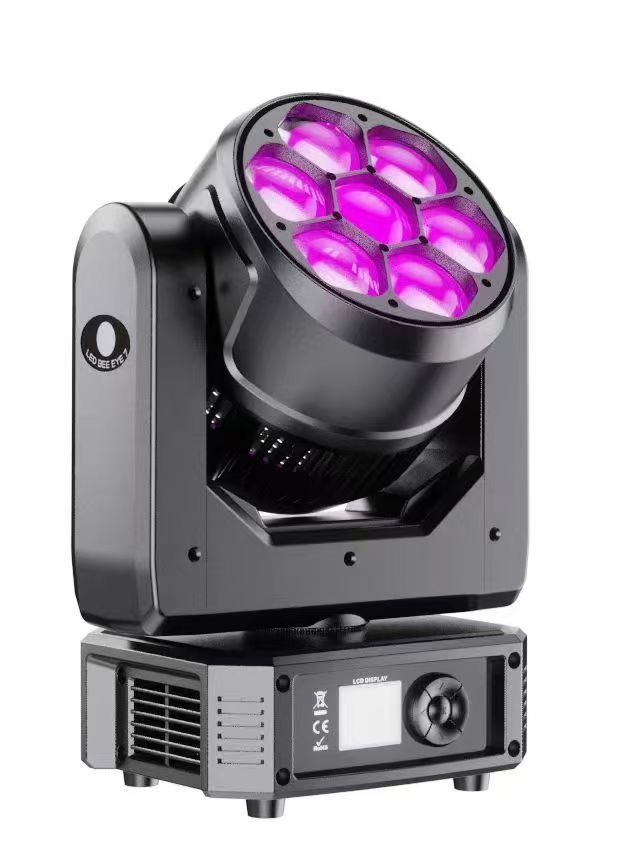

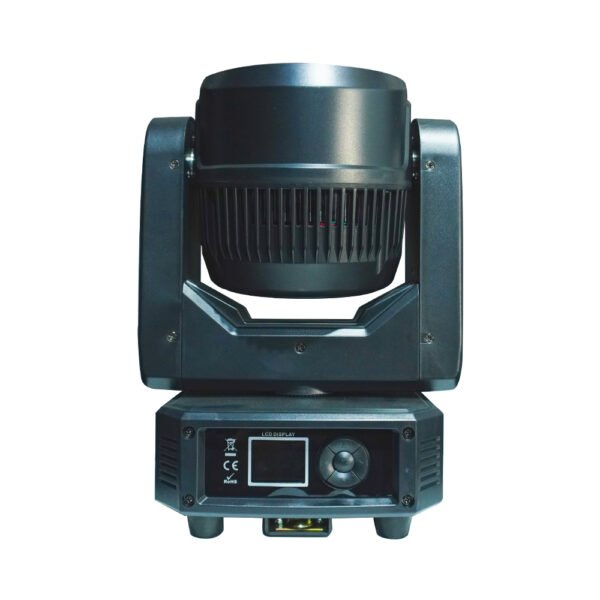

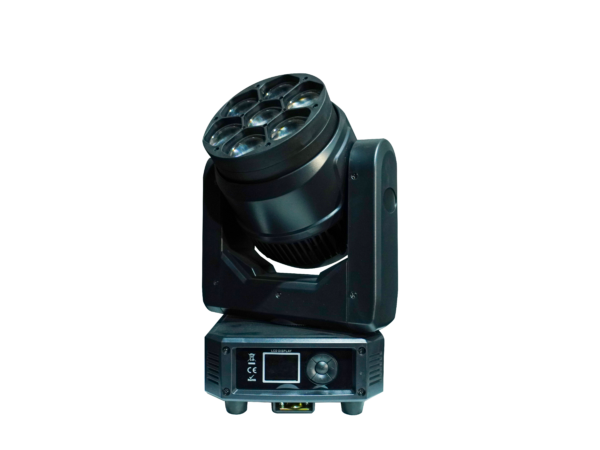

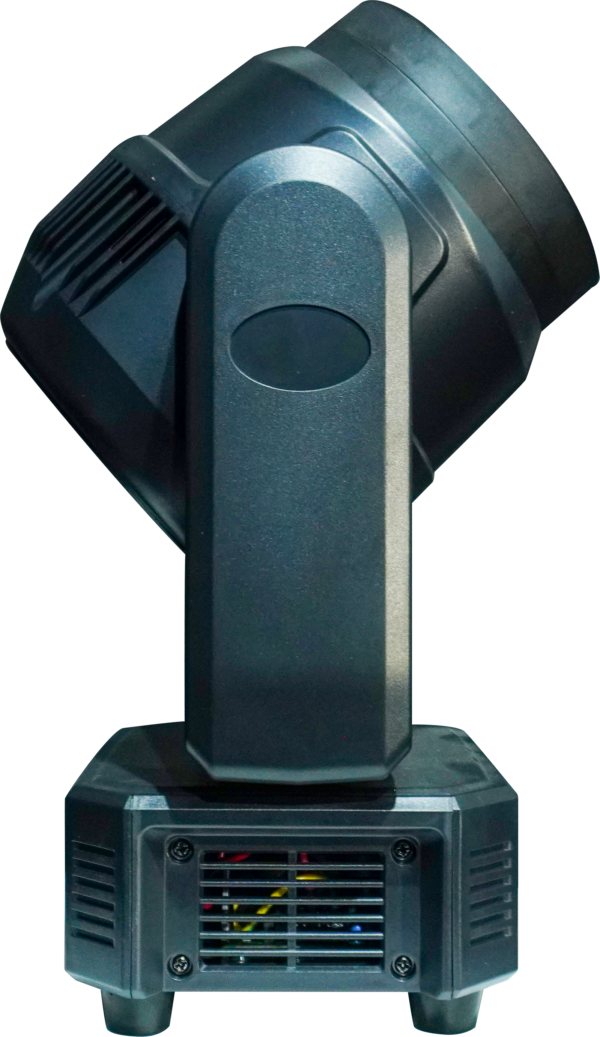

The TS-740W is a wash moving head featuring each pixel control and a linear 6-60 degree motorized zoom. The light source is equipped with 7 ultra-bright 40 Watt 4-in-1 LEDs according to the latest technology. This compact moving head is setup with extremely powerful noise-reducing motors, enabling ultra-fast pan and tilt movement while keeping the noise to a bare minimum. This true all-round fixture can be controlled via DMX, built-in automatic programs and presets, including a master/slave mode. Engineered for stage show, production, event, DJs, Band, Venues etc. A custom heavy-duty case is also available (option) to protect your fixtures during transport or storage.

IP20 Protection rate, is suitable for indoor applications.

Technical & Specification

Model

Model Name: IP20 7x40W BEE EYE WASH ZOOM
Model Code:TS-740W

Light Source

Light Source: 7X40W RGBW
Life Expectancy: 50,000 hours

Optical System

Beam Angle: 6°-60°

Control

4 touch button control panel
Display: 1.4 inch LCD display
Protocols: DMX512,sound activated or auto operation
Control Channels: 23/35/51

Other Effects

Dimming: 0~100%
Each pixel control
Front lens can rotate to create Petal-like effect
Different kinds of preset macro effects with variable speed
Outstanding strobe effect with variable speed
Pure smooth Color Mixing
CTO linear 2500K-8000K
Preset static patterns
Preset dynamic patterns with variable speed
Preset dynamic color macro with variable speed
1-30Hz shutter/strobe effect with variable speed
Preset pulse strobe effect with variable speed
Random strobe effect with variable speed

Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 280W
Power In/Out: IP20 power connector IN/OUT
Data In/Out: IP20 3-pin XLR connector IN/OUT

Housing

Material: Metal+Nylon Plastic
Finishing:Matt black
IP Rate: IP20
Net Weight: 6 kgs(13.2 lbs)
Gross Weight:7.5 kgs (16.5 lbs)

Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management

Work Environment

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -10°C
Protection Rating: IP20

Approvals

CE compliant
RoHS compliant
