IP65 Eye 380 Rgblac Stage Lighting

Light Source 380W RGBLAC LED
LED Life Expectancy 50,000 hours
Beam Angle 26°
Protection Rate IP65
Product Dimension 228.8x217x288mm
Net Weight 5.8 kg (12.8 lbs)



par can lightings

Overview

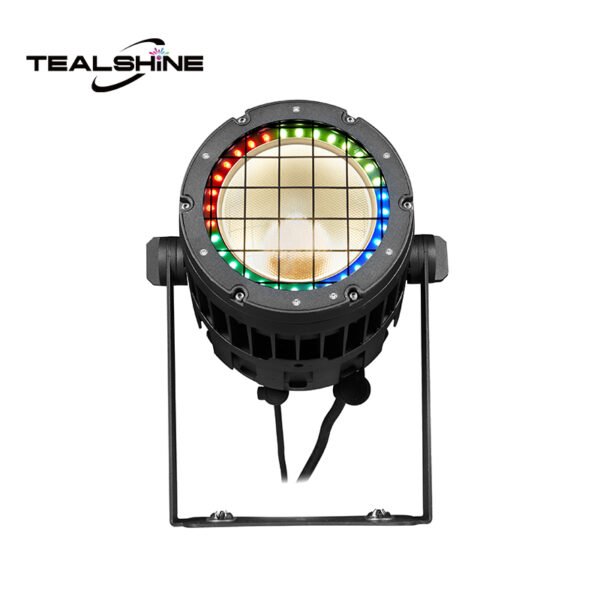

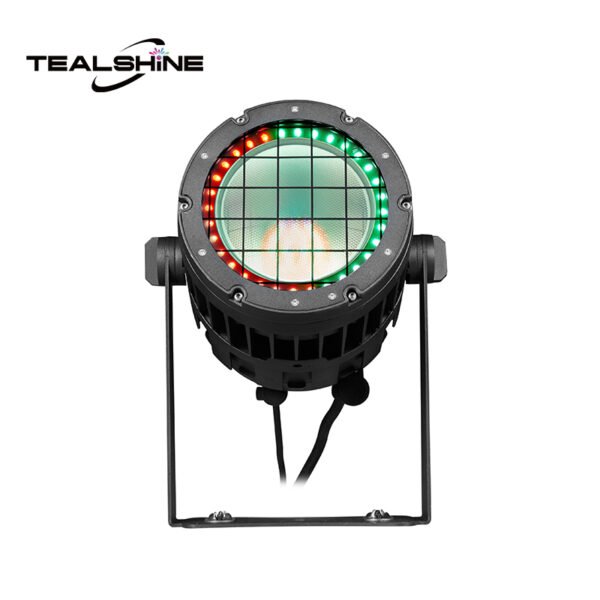

IP65 COB Eye 380 is an outdoor LED par light with halo effect, featuring 380-Watt RGBLAC LEDs and 30×0.2 RGB strip effect, it is innovative mini par with light weight design.

The equidistant LED design ensures uniform output and 26° angles could meet wash beam application, covering a larger area with superior color mixing and spread wash.

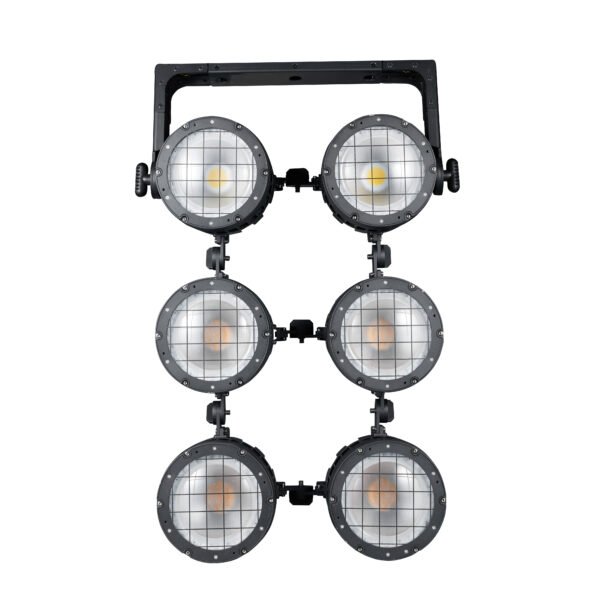

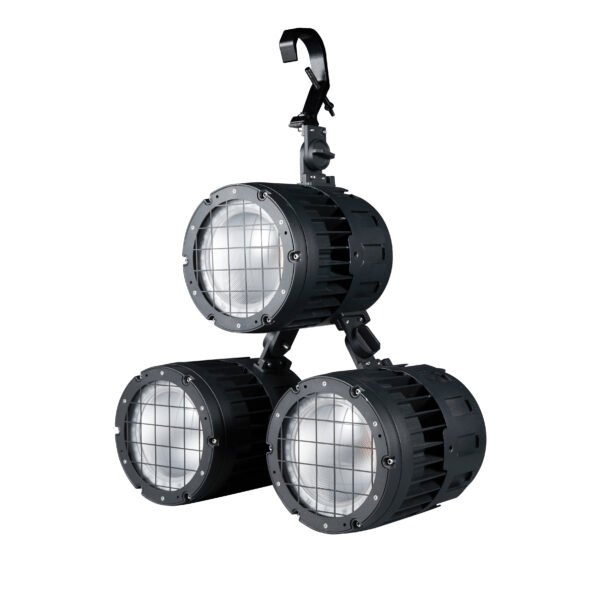

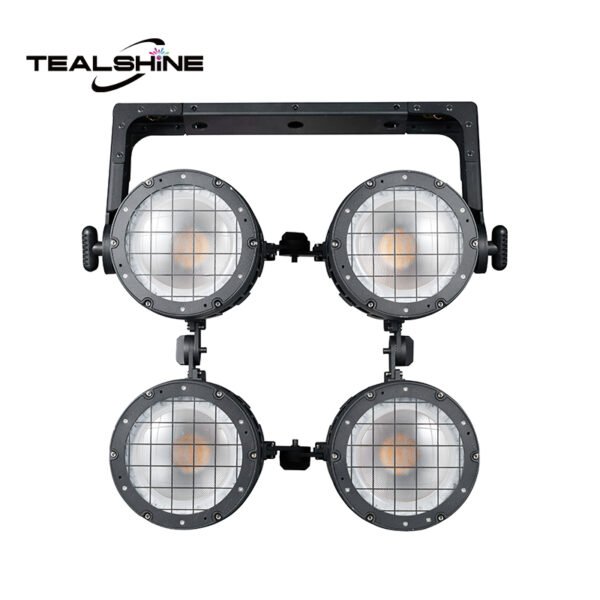

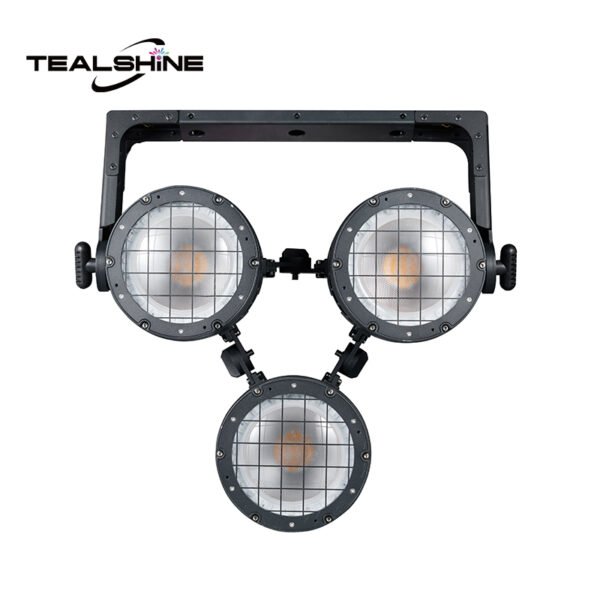

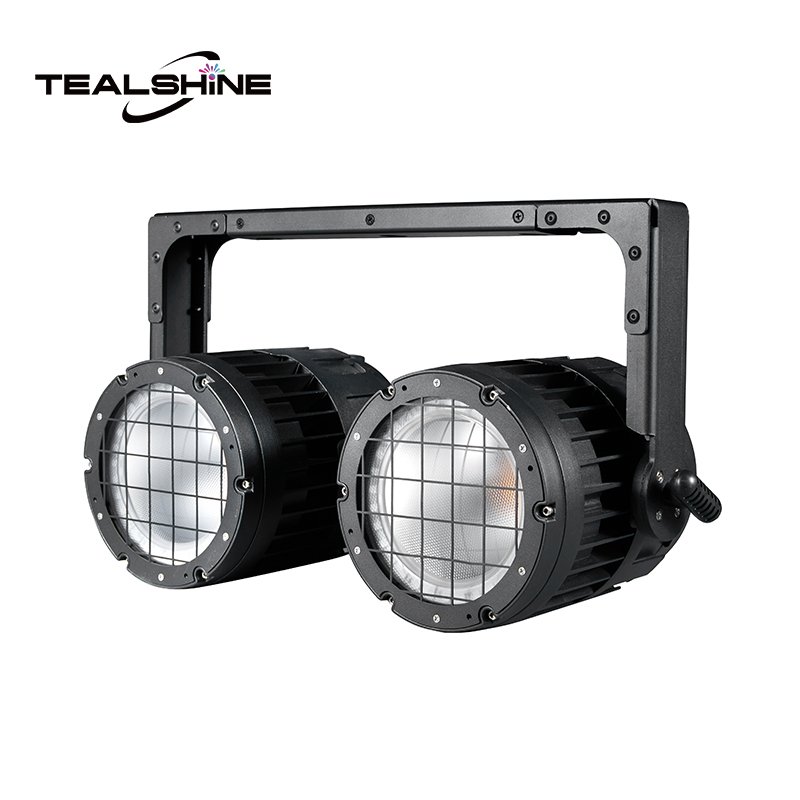

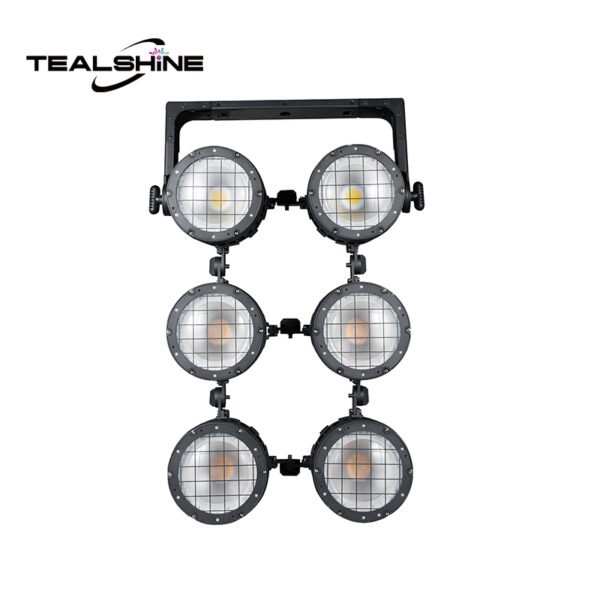

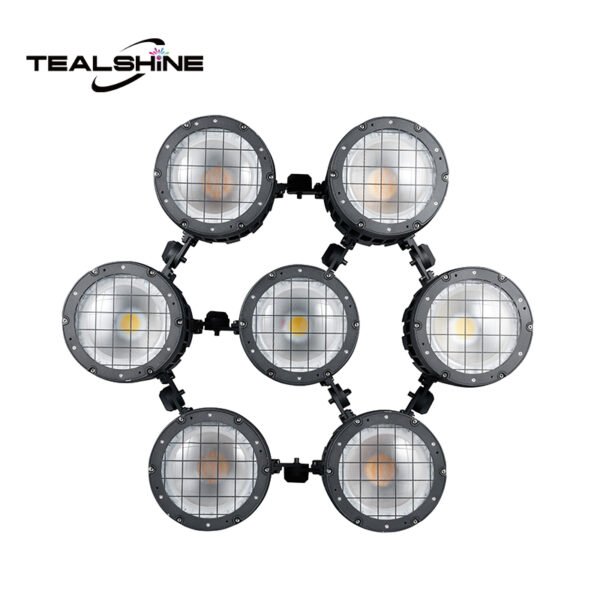

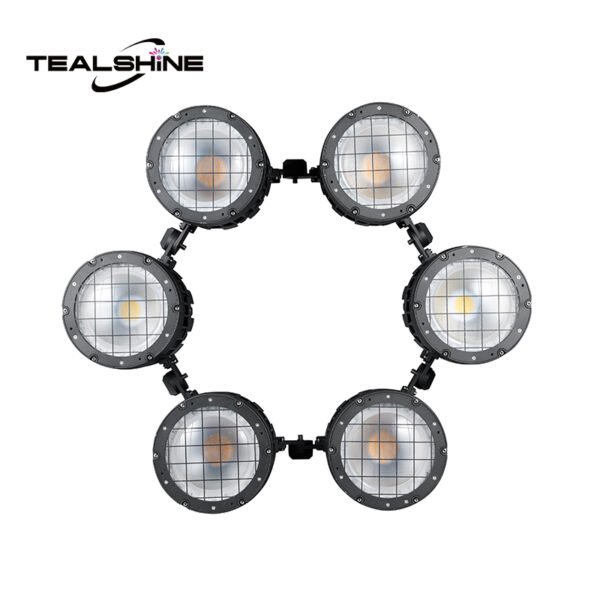

IP65  Eye 380 makes installation faster and easier, thanks to the splicing surfaces,use it as a single-cell,2-or 4-cell  par can or connect even more fixtures together for a versatile effects panels that is perfect for eye-candy looks.

IP65 Protection rate, the exterior par stage light, is suitable for indoor and outdoor stage applications.



Technical & Specification



Model

Model Name: IP65 COB EYE 380
Model Code: PC-380IP



Light Source

Light Source: 380 RGBLAC LED,30×0.2w RGB SMD LEDs
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 26°



Control

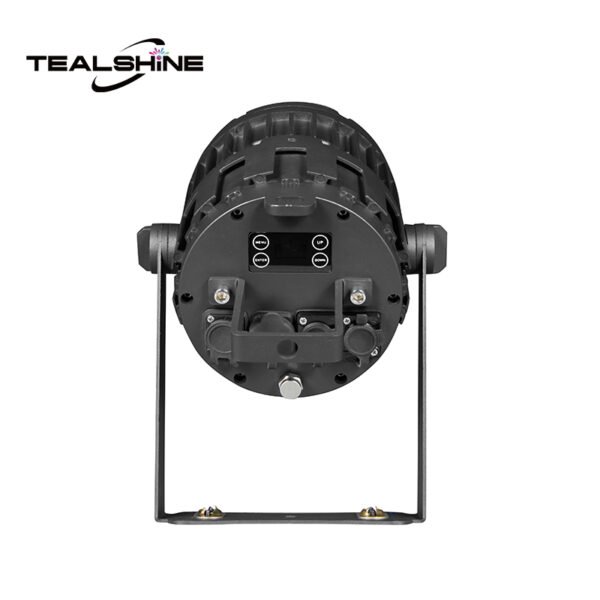

4 touch button control panel
Display: 1.4inch display
Protocols: DMX512
Control Channels: 17
Firmware Upgrade: Upgrade via DMX link



Other Effects

Outstanding strobe effect with variable speed
Smooth dimming 0-100% (4 user selectable dimming curves)
Flicker-free management
Strobe:1-30Hz
Pure smooth color mixing
Color temperature linear up and down in 1800k-10000k





 Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 500W
Power In/Out: Waterproof power connector IN/OUT
Data In/Out: Waterproof 3-pin waterproof XLR



Housing

Material: Aluminum die-cast
Finishing:Matt black
IP Rate: 65
Net Weight: 5.8 kgs(12.8lbs)
Gross Weight: 6.8 kgs (15 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Protection Rating: IP65



Approvals

CE compliant
RoHS compliant



单眼拼接三视图 pdf











Optional Accessories



信号线 1

NAME: 3-PIN XLR Signal Cable
ORDER CODE:3-PIN Signal cable

 电源线 1

NAME: PowerCon Cable
ORDER CODE : PowerCon Cable

 灯钩jpg 1

NAME: Clamp
ORDER CODE : Bclamp,Mclamp,Sclamp
安全绳

NAME: Black Safety Chain
ORDER CODE : Bchain

 omega

NAME: Omega Blacket
ORDER CODE :Lomega,Momega,Somega

 flight case 1

NAME: 2 IN 1 Flight Case
ORDER CODE : 2IN1 FC
