Overview

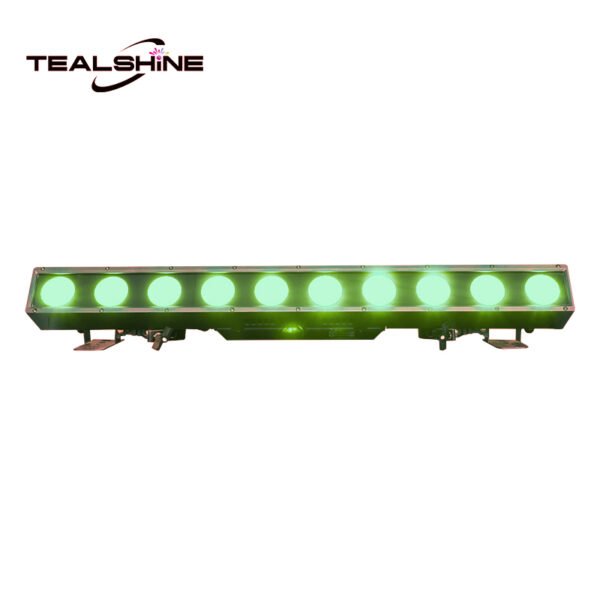

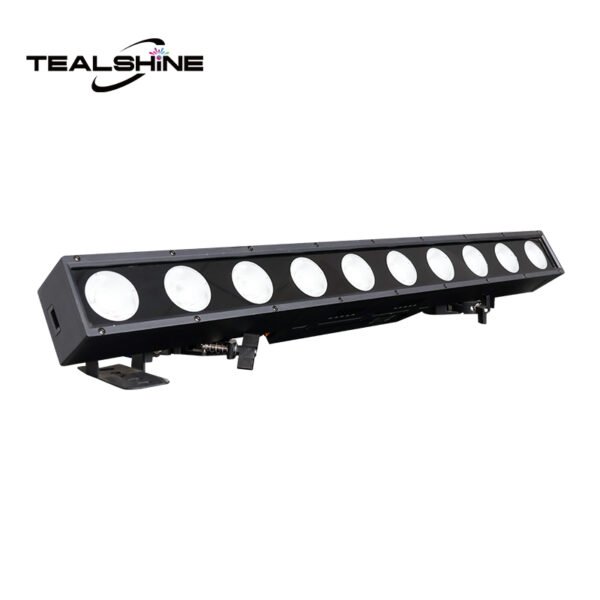

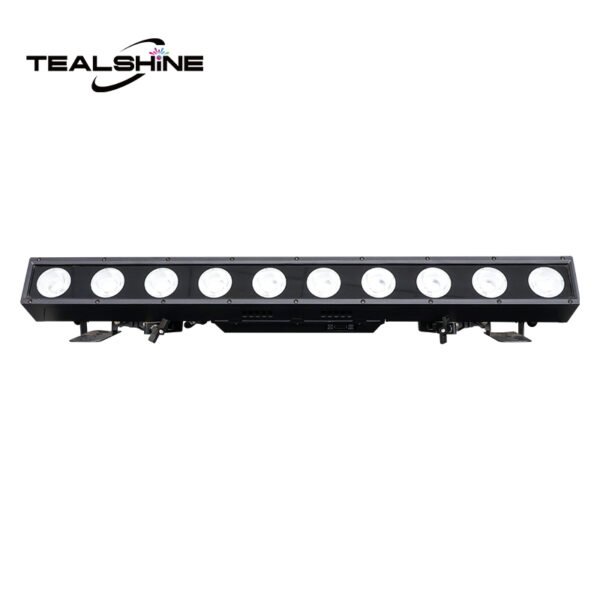

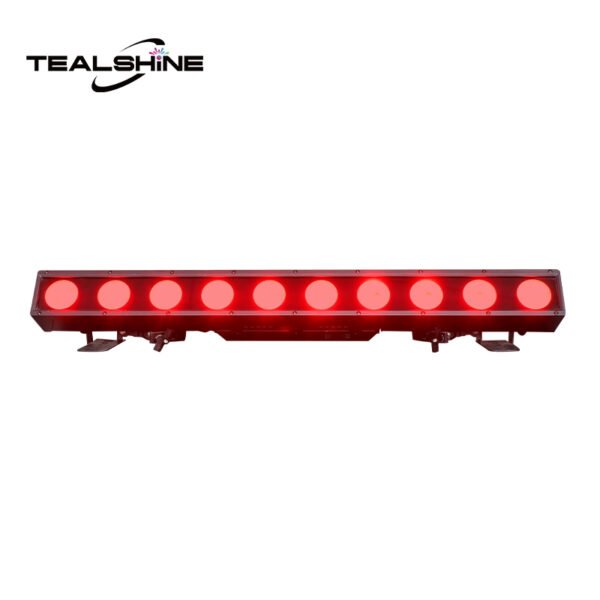

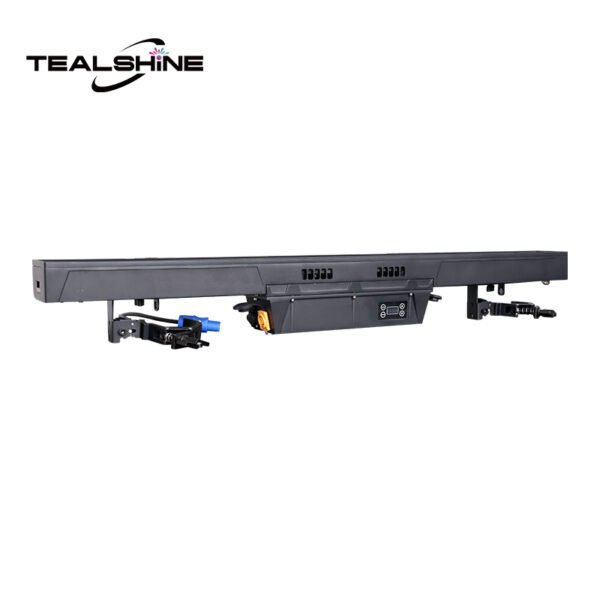

IP65 1050 LED Bar is an outdoor LED effect light, featuring 10x50w LEDs,it is an impressive LED led bar with super light weight design and each pixel control.

This powerful led bar wash light is a specialized stage or decorative lighting fixture featuring each pixel controlled, designed to create dynamic visual effects and patterns,often used for clubs,events,and architectural lighting,studio,wedding.Key features include different zone color mixing,multiple control modes,and flexible installation options,making them versatile for various entertainment and decorative purposes.

IP65 Protection rate, is suitable for indoor&outdoor event applications.

Technical & Specification

Model

Model Name: IP65 1050 LED BAR
Model Code: LB-1050IP

Light Source

Light Source: 10x50W RGBW
Life Expectancy: 50,000 hours

Optical System

Beam Angle: 60°

Control

4 touch button control panel
Display: OLED display
Protocols: DMX512,sound activated or auto operation
Control Channels: 21/17/8/6
Firmware Upgrade: Upgrade via DMX link

Other Effects

Outstanding strobe effect with variable speed
Flicker-free managementSmooth Dimmer: 0~100%
Pulse effect
Strobe:1-30Hz
Each Pixel Control
Pure smooth Color Mixing
Color temperature linear up and down in 1800K-10000K
Different kinds of preset macro effects with variable speed
Impressive cross-fade effect

Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 550W
Power In/Out: IP65 power connector IN/OUT
Data In/Out: IP65 3-pin XLR connector IN/OUT

Housing

Material: Aluminum die-cast
Finishing:Matt black
IP Rate: IP65
Net Weight: 9.8 kgs(21.6 lbs)
Gross Weight: 10.5 kgs (23 lbs)

Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management

Work Environment

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Protection Rating: IP65

Approvals

CE compliant
RoHS compliant
