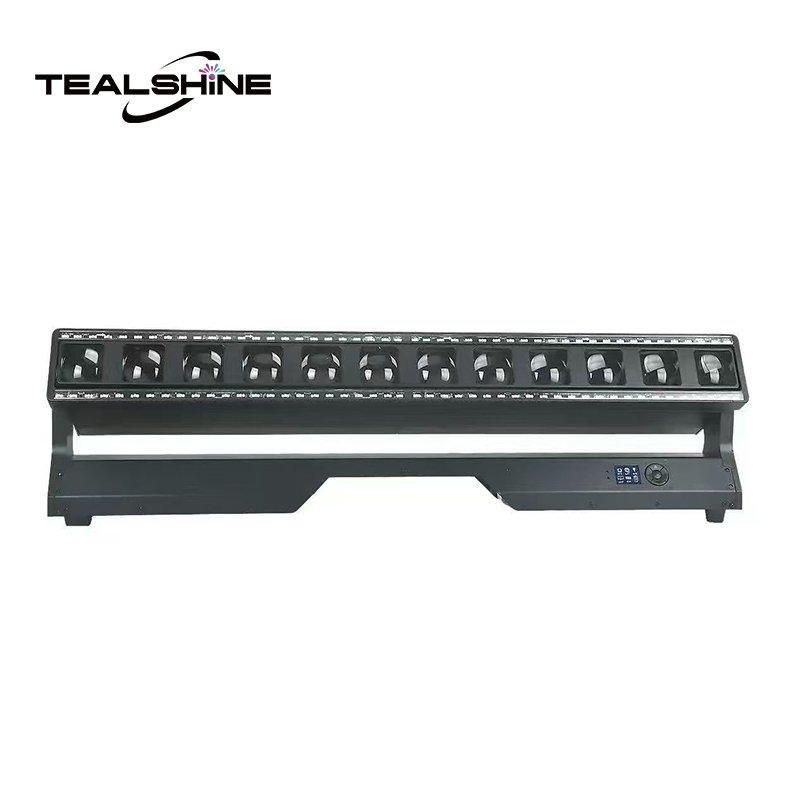

IP20 12x40W RGBW Powerful Moving Beam Bar with Ring Strip

IP20 12x40W RGBW Powerful Moving Beam Bar with Ring Strip

Light Source 12x40W RGBW LEDs+288×0.2W RGB SMD
LED Life Expectancy 50,000 hours
Beam Angle 3°
Protection Rate IP20
Product Dimension 1000*130*272mm
Net Weight  11kgs (24.3 lbs)



Overview

IP20 12x40W RGBW led moving beam bar light is an indoor LED dj stage lighting, featuring 12x40RGBW LEDs+288×0.2W RGB SMD,it is an impressive LED beam bar light with super light weight design.

This latest stage light is a specialized stage or decorative lighting fixture,featuring multi beam effect and ring strip effect,designed to create dynamic visual effects and patterns,often used for backdrops,events,and architectural lighting.Key features include 12×40 RGBW LED,multiple control modes,each pixel control,energy efficiency,and flexible installation options,making them versatile for various entertainment and decorative purposes.

IP20 Protection rate, is suitable for indoor applications.

Technical & Specification



Model

Model Name: IP20 12X40W RGBW LED MOVING BEAM BAR
Model Code:TS-1240B



Light Source

Light Source: 12x40W RGBW&288×0.2w RGB SMD
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 3°



Control

4 touch button control panel
Display: 1.4 inch LCD display
Protocols: DMX512,sound activated or auto operation
Control Channels: 14



Other Effects

Outstanding strobe effect with variable speed
Smooth dimming 0-100%
Flicker-free management
Pulse effect
Strobe:1-30Hz
Pure smooth Color Mixing
Different kinds of preset macro effects with variable speed
2500-8000K Linear CTO
Dual mounted bracket design
Preset pulse strobe effect with variable speed
Random strobe effect with variable speed
270°TILT

 Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 250W
Power In/Out: IP20 power connector IN/OUT
Data In/Out: IP20 3-pin XLR connector IN/OUT



Housing

Material: Metal+ABS Plastic
Finishing:Matt black
IP Rate: IP20
Net Weight: 14.6 kgs(32.2 lbs)
Gross Weight:16.6 kgs (36.6 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -10°C
Protection Rating: IP20



Approvals

CE compliant
RoHS compliant
