Overview

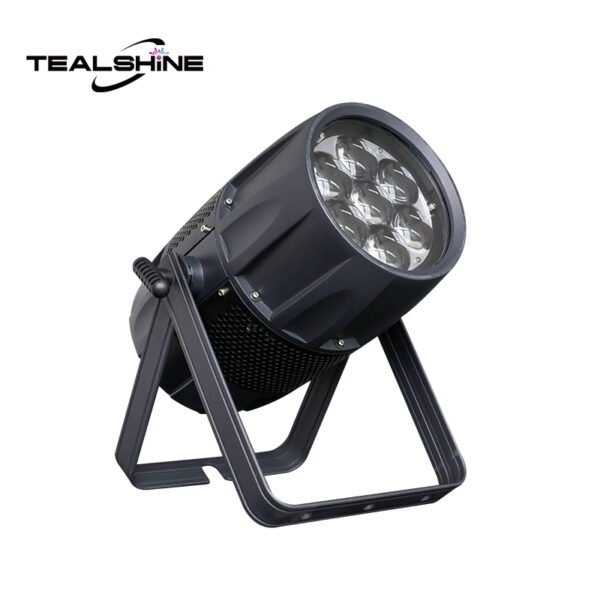

IP65 7x40W Par Can Zoom is an outdoor LED stage light, featuring 7x40W RGBW LEDs,it is an impressive LED par can with super light weight design.

This powerful par can stage lighting is a specialized stage or decorative lighting fixture feacturing 7 LEDs full pixel controlled with zoom, designed to create dynamic visual effects and patterns,often used for clubs,events,and architectural lighting.Key features include full RGBW color mixing,multiple control modes,impressive fade-color setting,and flexible installation options,making them versatile for various entertainment and decorative purposes.

IP65 Protection rate, is suitable for indoor&outdoor stage applications.

Technical & Specification

Model

Model Name: IP65 Par Can Zoom
Model Code: PC-740IP

Light Source

Light Source: 7x40w RGBW LEDs
Life Expectancy: 50,000 hours

Optical System

Beam Angle: 6°-60°

Control

4 touch button control panel
Display: 1.8 inch display
Protocols: DMX512,sound activated or auto operation
Control Channels: 21/17/8/6
Firmware Upgrade: Upgrade via DMX link

Other Effects

Outstanding strobe effect with variable speed
Flicker-free management
Smooth Dimmer: 0~100%
Pulse effect
Strobe:1-30Hz
Full Pixel Control
Pure smooth Color Mixing
6-60 degree Zoom
Different kinds of preset macro effects with variable speed
Impressive cross-fade effect

Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 300W

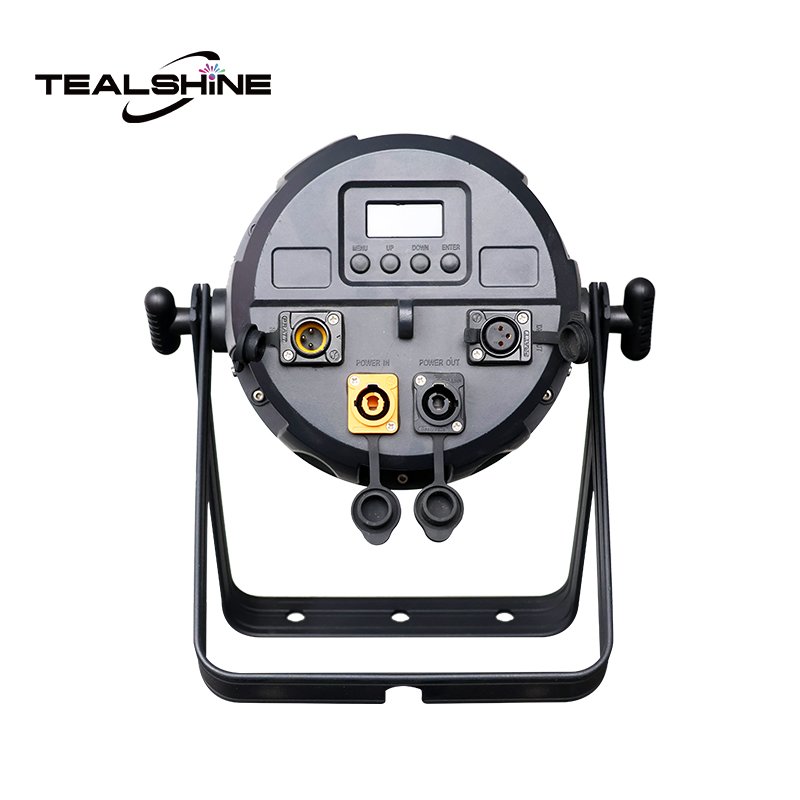

Power In/Out: IP65 power connector IN/OUT
Data In/Out: IP65 3-pin XLR connector IN/OUT

Housing

Material: Aluminum die-cast
Finishing:Matt black
IP Rate: IP65
Net Weight: 9.8 kgs(21.6 lbs)
Gross Weight: 10.5 kgs (23 lbs)

Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management

Work Environment

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Protection Rating: IP65

Approvals

CE compliant
RoHS compliant
