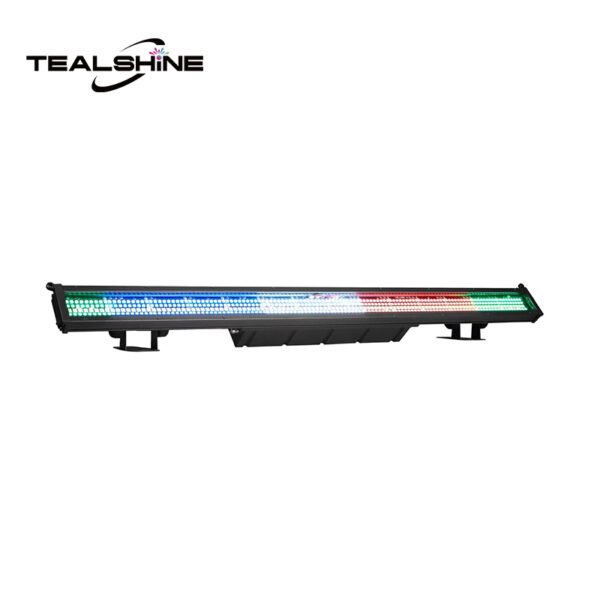

IP65 COLORFUL LED STRIP DJ BAR STAGE LIGHTING

Light Source 504*0.3 SMD 5050 LEDs+112*1W SMD 7070 white LEDs
LED Life Expectancy50,000 hours
Beam Angle160°
Protection RateIP65
Product Dimension1003x90x120mm
Net Weight 4 kgs (8.8 lbs)



Edit Content

LED STRIP DJ BAR STAGE LIGHTING
LB-616IP LED BAR LIGHT

Overview

IP65 616 LED strip bar is an outdoor LED dj bar, equipped with 504×0.3w RGB LEDs&112x1W LEDs,it is an impressive LED led bar with super light weight design and full pixel control.

This powerful led bar stage lighting is a specialized stage or decorative lighting fixture featuring full pixel controlled, designed to create stunning visual effects and patterns,often used for clubs,events,and architectural lighting,studio,wedding.Main features include different zone color mixing,multiple control modes,and flexible installation options,making them versatile for various entertainment and decorative purposes.

IP65 Protection rate, is suitable for indoor&outdoor stage lighting applications.



Technical & Specification



Model

Model Name: IP65 616 LED STRIP BAR STAGE LIGHTING
Model Code: LB-616IP



Light Source

Light Source: 504X0.3W RGB SMD 5050 LEDs+112x1W White SMD 7070 LEDs
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 120°



Control

4 touch button control panel
Display: OLED display
Protocols: DMX512,sound activated or auto operation
Control Channels: 4/7/56/98
Firmware Upgrade: Upgrade via DMX link



Other Effects

Outstanding strobe effect with variable speed
Smooth Dimmer: 0~100%
Pulse effect
Strobe:1-30Hz
Pure smooth color mixing
28 RGB-zones+14 W-zones
Full pixel control individually
Different kinds of preset macro effects with variable speed
Impressive cross-fade effect







Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 108W
Power In/Out: IP65 power connector IN/OUT
Data In/Out: IP65 3-pin XLR connector IN/OUT



Housing

Material: Aluminum die-cast
Finishing:Matt black
IP Rate: IP65
Net Weight:4 kgs(8.8lbs)
Gross Weight: 4.8 kgs (10.6 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Protection Rating: IP65



Approvals

CE compliant
RoHS compliant







LB 616IP led bar lights







Optional Accessories



信号线



NAME: 3-PIN XLR Signal Cable
ORDER CODE:3-PIN Signal cable

电源线



NAME: PowerCon Cable
ORDER CODE : PowerCon Cable

灯钩jpg 1



NAME: Clamp
ORDER CODE : Bclamp,Mclamp,Sclamp

安全绳

NAME: Black Safety Chain
ORDER CODE : Bchain

omega

NAME: Omega Blacket
ORDER CODE :Lomega,Momega,Somega

flight case

NAME: 2 IN 1 FLIGHT CASE
ORDER CODE : 2IN1 FC
