LED BAR LIGHTS

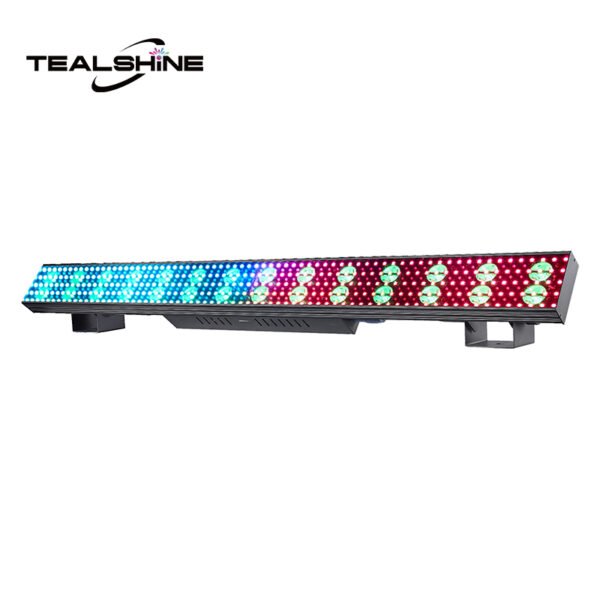

The IP20 28x3W RGB LED Bar Stage Light features a rectangular design that showcases a vibrant grid of multicolored lights. Mounted on two black brackets, this fixture emits an array of dynamic colors along its length.

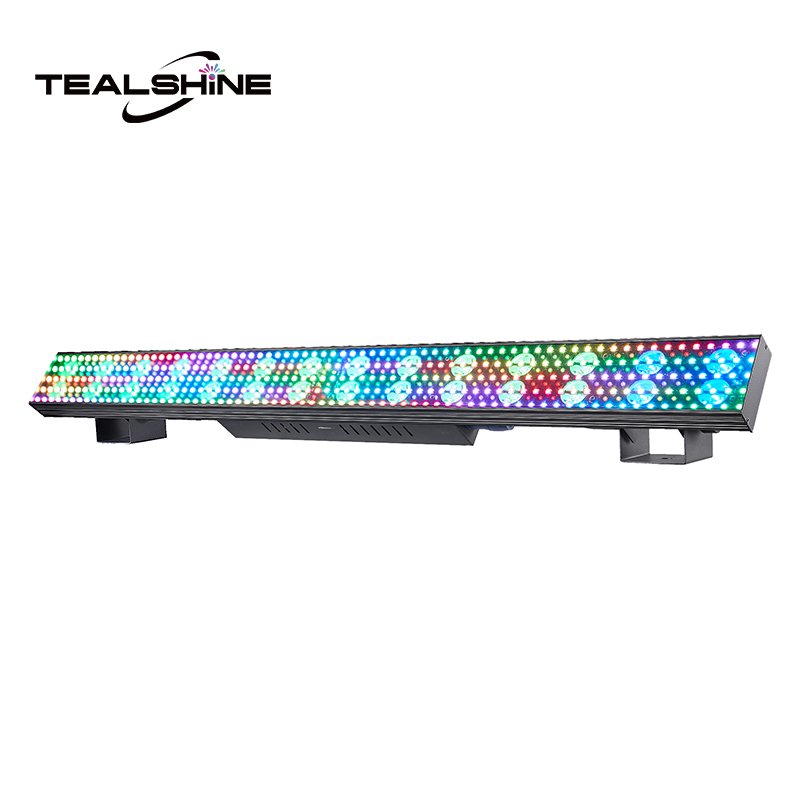

IP20 28x3W RGB LED Bar Stage Light featuring multiple rows of vibrant red, blue, green, and white LEDs arranged in a rectangular bar and mounted on black brackets. The TEALSHINE logo appears in the top left corner.
  1. LED BAR LIGHTS
  2. The IP20 28x3W RGB LED Bar Stage Light features a rectangular design that showcases a vibrant grid of multicolored lights. Mounted on two black brackets, this fixture emits an array of dynamic colors along its length.
  3. IP20 28x3W RGB LED Bar Stage Light featuring multiple rows of vibrant red, blue, green, and white LEDs arranged in a rectangular bar and mounted on black brackets. The TEALSHINE logo appears in the top left corner.

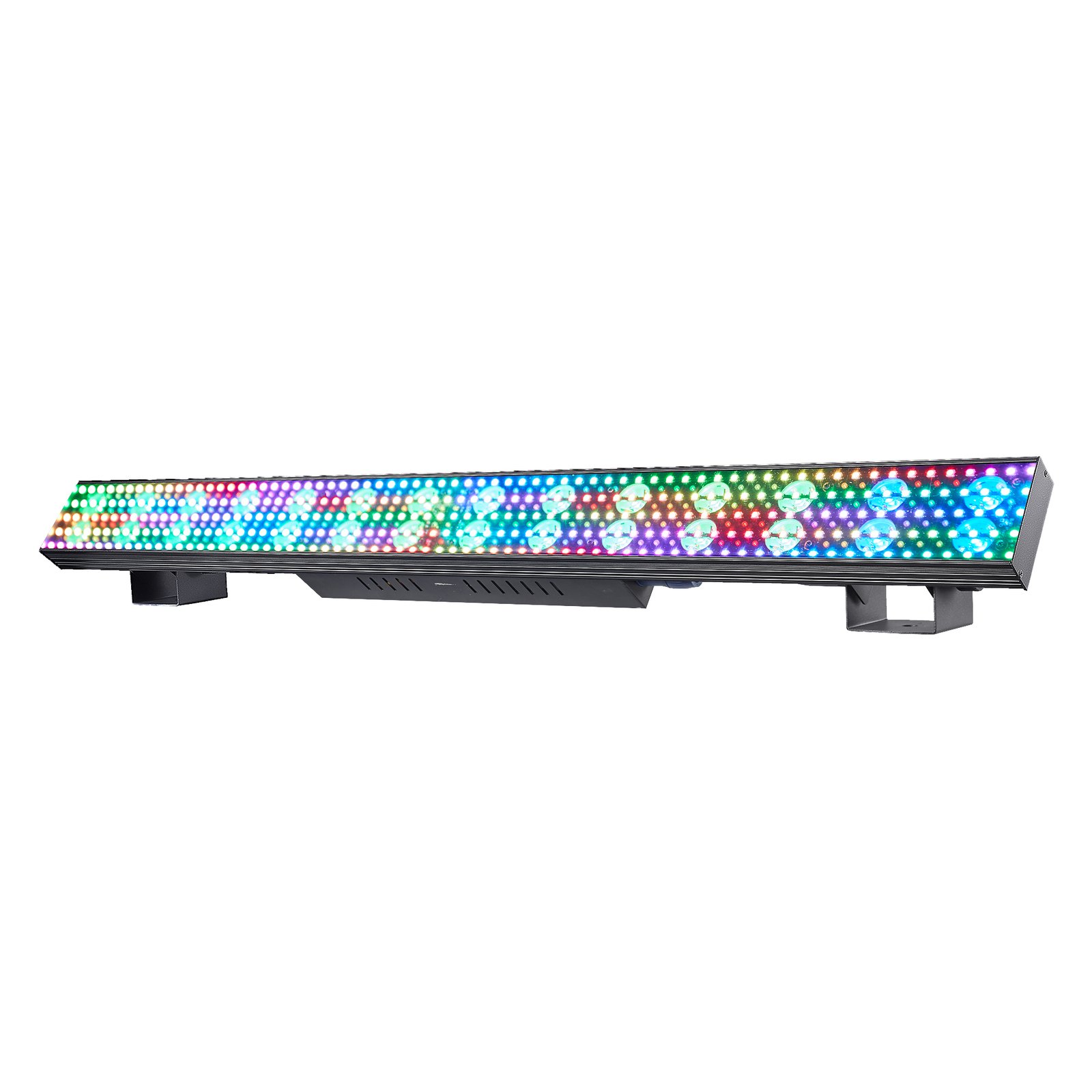

IP20 28x3W Rgb Led Bar Stage Light

Light Source28*3W RGB LEDs+350*3W RGB SMD LEDs
LED Life Expectancy50,000 hours
Beam Angle8°
Protection RateIP20
Product Dimension1000*96*116mm
Net Weight2.8 kgs (6.2 lbs)

Overview

IP20 28x3W Led Bar Light is an indoor dj stage light bar, equipped with 28*3W RGB LEDs&350*0.3W RGB SMD LEDs,it is an impressive LED stage light bar light with super light weight design.

This latest wall washer bar is a specialized stage or decorative lighting fixture,featuring each pixel controlled&halo effect,designed to create dynamic visual effects and patterns,often used for backdrops,events,stage and architectural lighting.Key features include RGB color mixing,halo strip effect,multiple control modes,energy efficiency,and flexible installation options,making them versatile for various entertainment and decorative purposes.

IP20 Protection rate,is widely used for indoor led stage applications.

Technical & Specification



Model

Model Name: IP20 28X3W RGB+350X0.3W RGB LED BAR LIGHT
Model Code:LB-283



Light Source

Light Source: 40X3W RGB LEDs
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 8°



Control

4 touch button control panel
Display: OLED display
Protocols: DMX512,sound activated or auto operation
Control Channels: 7/9/100



Other Effects

Outstanding strobe effect with variable speed
Smooth dimming 0-100%
Flicker-free management
Pulse effect
Strobe:1-30Hz
Pure smooth Color Mixing&halo strip effects
Different kinds of preset macro effects with variable speed
Each pixel controlled
Dual mounted bracket design







Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 150W
Power In/Out: IP20 power connector IN/OUT
Data In/Out: IP20 3-pin XLR connector IN/OUT



Housing

Material: Metal
Finishing:Matt black
IP Rate: IP20
Net Weight: 2.8 kgs(6.2 lbs)
Gross Weight:3.6 kgs (7.9 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -10°C
Protection Rating: IP20



Approvals

CE compliant
RoHS compliant
