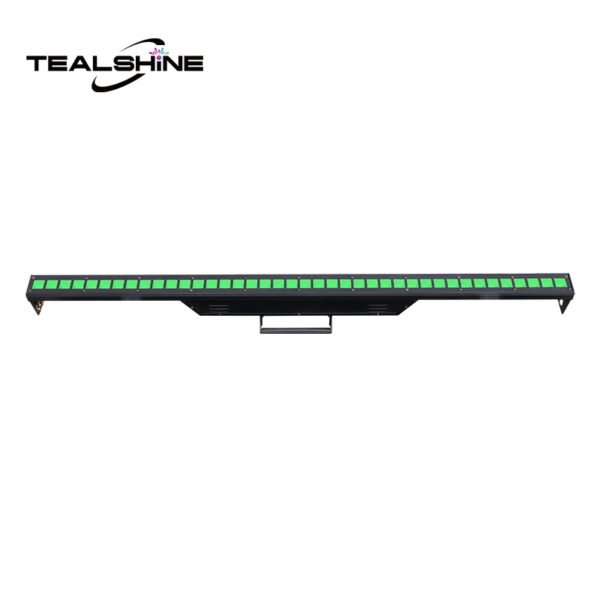

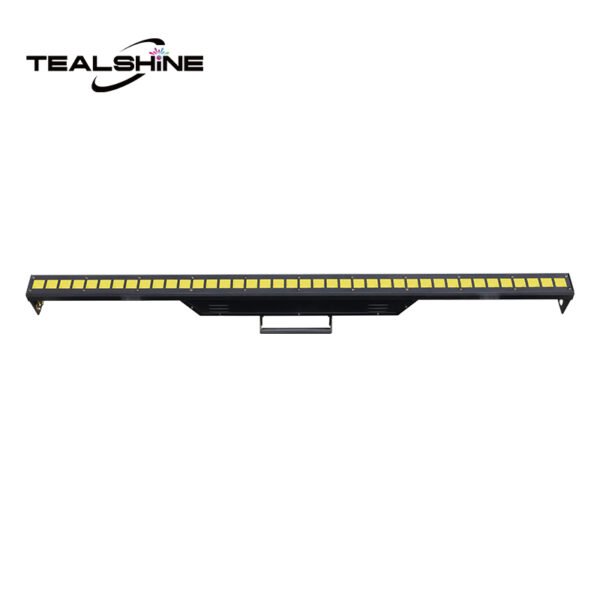

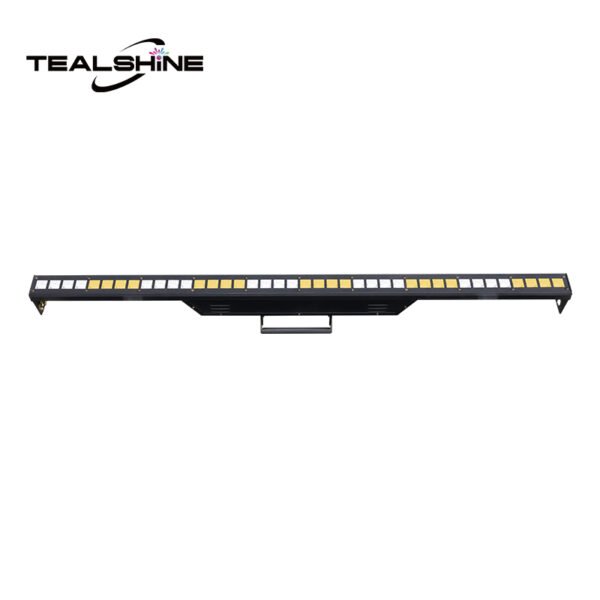

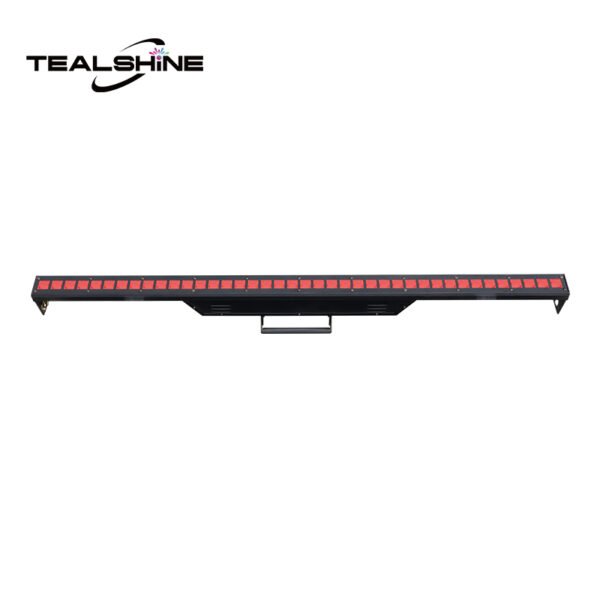

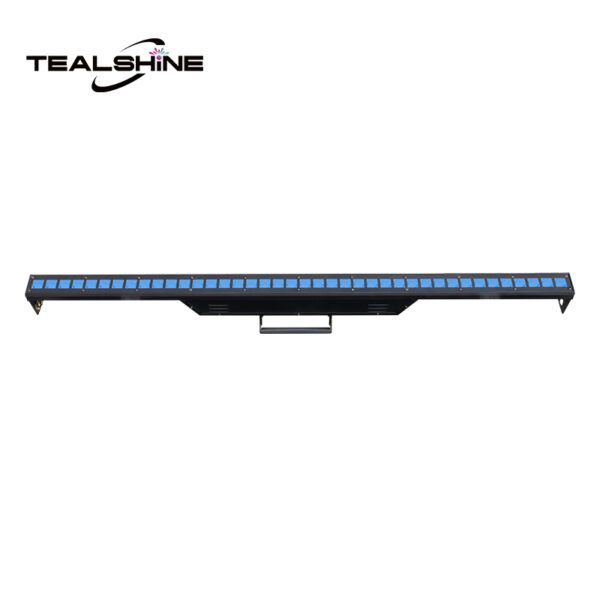

IP20 40x3W Rgb Led Bar

Light Source40*3W RGB LEDs
LED Life Expectancy50,000 hours
Beam Angle8°
Protection RateIP20
Product Dimension1002.8*52*80mm
Net Weight3.8 kgs (8.3 lbs)

Overview

IP20 40x3W Led Bar Light is an indoor dj stage lights, featuring RGB LEDs,it is an impressive LED bar light with super light weight design.

This latest stage light is a specialized stage or decorative lighting fixture,featuring each pixel controlled,designed to create dynamic visual effects and patterns,often used for backdrops,events,and architectural lighting.Key features include full RGB color mixing,multiple control modes,energy efficiency,and flexible installation options,making them versatile for various entertainment and decorative purposes.

IP20 Protection rate, is suitable for indoor applications.

Technical & Specification



Model

Model Name: IP20 40X3W LED BAR
Model Code:LB-4003



Light Source

Light Source: 40X3W RGB LEDs
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 8°



Control

4 touch button control panel
Display: OLED display
Protocols: DMX512,sound activated or auto operation
Control Channels: 3/4/6/7/8/12/13/24/25/60/61/120/121



Other Effects

Outstanding strobe effect with variable speed
Smooth dimming 0-100%
Flicker-free management
Pulse effect
Strobe:1-30Hz
Pure smooth Color Mixing
Different kinds of preset macro effects with variable speed
Each pixel controlled
Dual mounted bracket design







Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 100W
Power In/Out: IP20 power connector IN/OUT
Data In/Out: IP20 3-pin XLR connector IN/OUT



Housing

Material: Metal
Finishing:Matt black
IP Rate: IP20
Net Weight: 3 kgs(6.6 lbs)
Gross Weight:3.8 kgs (8.3 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -10°C
Protection Rating: IP20



Approvals

CE compliant
RoHS compliant
