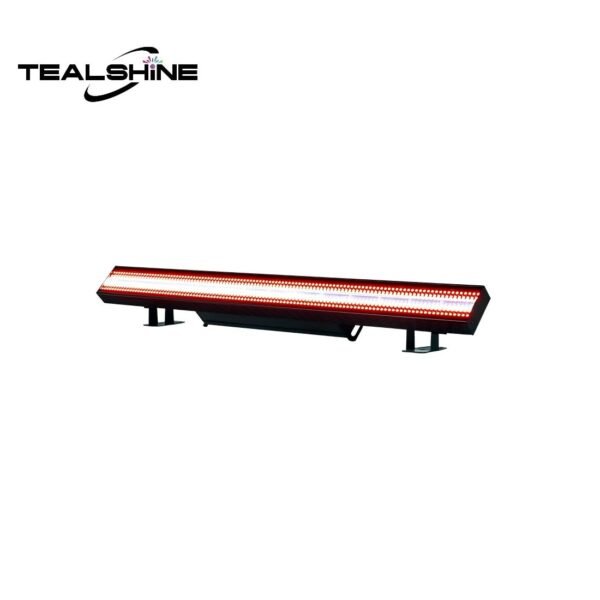

IP20 560 Mini Led Light Bar

Overview

IP20 Led pixel bar light is an outdoor moving strobe light, featuring 448 pcs*0.3W RGB LEDs+112 pcs*5W W LEDs,it is an amazing strobe light with light weight design.

Mapping Pixel,Color Mixing and Patterns
The luminaire features RGBW color,enabling full-pixel area control for smooth dimming, rich dynamic effects,chasing patterns,and various other dynamic patterns and fine visual pixel effects.These built-in programmable effects greatly facilitate on-site installation and application, simplifying the luminaire adjustment process.

Middle White Leds
The prominent central white led instantly produces a stronger white light effect, resulting in higher brightness,cleaner light, and a more intense visual impact.This enhances the overall application of the lighting fixture,giving it more depth and layering, creating a sharper white effect and a dynamic visual feast on stage, ultimately allowing it to stand out in various performances and events.

Marco Effects
It features 32-RGB zone functions for different areas, 14-white zone functions for different areas,25 built-in RGB led programming macros,and 9 built-in cool white led programming macros – all without the need for complicated programming operations.

Dimmer Curves
This luminaire supports four dimming curves,adjustable RGBW,and optional vertical scanning,allowing users to flexibly control brightness,color saturation,and operating status. Adjustable sound control sensitivity also enables it to adapt to different indoor environments and performance styles,ensuring stable performance in both single-lamp and multi-lamp configurations.

Plug-and-play Operation
It supports multiple control modes,including DMX512,auto run,sound control,and master-salve,easily adapting to various performance workflows. Users can choose different channel modes according to their needs. For convenient plug-and-play operation, 8/11 channels are available;for richer functionality, 68/74/97 channels are recommended.

Robust Body Construction
The lighting enclosure features a full die-cast aluminum shell, making it more adaptable to extreme stage environments and frequent mobile performances.Compared to traditional plastic shells, this product boasts stronger structural strength, more stable heat dissipation, and greater durability.Whether installed in a fixed performance venue,used for mobile performances,or in various rental businesses,it ensures that every performance is unaffected by wind or rain.

IP20 Protection rate, is suitable for indoor stage light dj applications.

Technical & Specification



Model Model Name: IP20 560 LED FX BAR STAGE LIGHTING Model Code: LB-560IP   Light Source Light Source: 448X0.3W RGB SMD LEDs+112x5W White SMD LEDs Life Expectancy: 50,000 hours   Optical System Beam Angle: 120°   Control 4 touch button control panel Display: OLED display Protocols: DMX512,sound activated or auto operation Control Channels: 6/9/13/16/18/32/32A/38/43/64/78/112/127 Firmware Upgrade: Upgrade via DMX link   Other Effects Outstanding strobe effect with variable speed Smooth Dimmer: 0~100% Pulse effect Strobe:1-30Hz Pure smooth color mixing 32 RGB-zones+16 CW-zones Full pixel control individually Different kinds of preset macro effects with variable speed Impressive cross-fade effect

Electrical and Connectors Input Voltage Range: 90-260V AC,50/60Hz Power Consumption : 430W Power In/Out: IP20 power connector IN/OUT Data In/Out: IP20 3-pin XLR connector IN/OUT   Housing Material: Aluminum die-cast Finishing:Matt black IP Rate: IP65 Net Weight:6.3 kgs(13.9lbs) Gross Weight: 7.8 kgs (17.2lbs)   Cooling System Advanced cooling system integrated aluminum Constant temperature readout and management function Over temperature protection management   Work Environment Maximum Ambient Temperature: 40°C Minimum Operating Temperature: -10°C Protection Rating: IP20   Approvals CE compliant RoHS compliant
