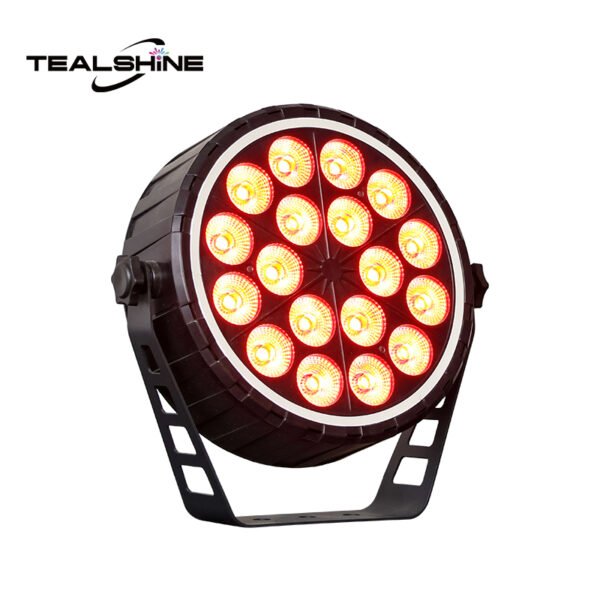

PAR CAN FOR STAGE LIGHTING

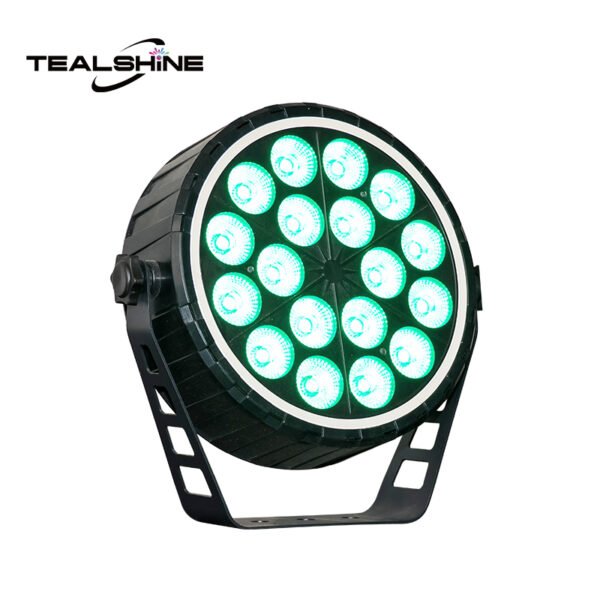

IP20 18x8W PAR CAN WITH HALO EFFECT
IP20 18x8W PAR CAN WITH HALO EFFECT
IP20 18x8W PAR CAN WITH HALO EFFECT
  1. PAR CAN FOR STAGE LIGHTING
  2. IP20 18x8W PAR CAN WITH HALO EFFECT
  3. IP20 18x8W PAR CAN WITH HALO EFFECT
  4. IP20 18x8W PAR CAN WITH HALO EFFECT

IP20 18x8W PAR CAN WITH HALO EFFECT

Light Source18x8w RGBW LEDs+51*03W SMD RGB LEDs
LED Life Expectancy50,000 hours
Beam Angle26°
Protection RateIP65
Product Dimension260.61×63.8×252.75mm
Net Weight 4.4 kgs (9.7 lbs)



Edit Content

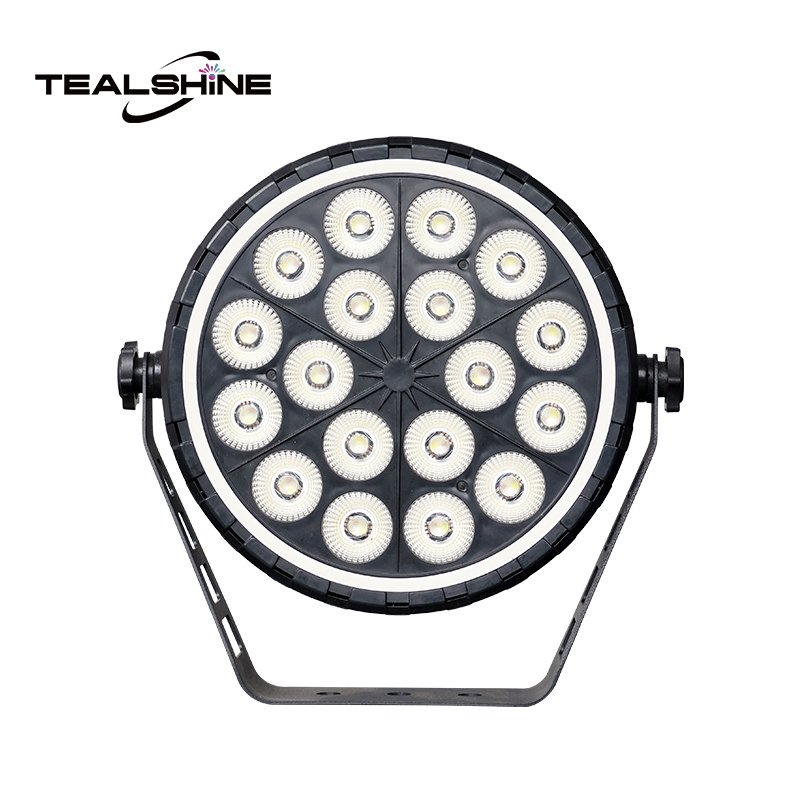

LED PAR CAN WITH HALO EFFECT FOR STAGE APPLICATION
18*8W RGBW PAR CAN

Overview

IP20 19x10W Par can is an indoor LED stage lighting, featuring 18x8W RGBW LEDs and 51*0.3w SMD RGB LEDs ring effect,it is an impressive LED par can with super light weight design.

This powerful par can light is a specialized stage or decorative lighting fixture feacturing 19 LEDs circle zone individually controlled, designed to create dynamic visual effects and patterns,often used for clubs,events,and architectural lighting.Key features include full RGBW color mixing,multiple control modes,impressive halo ring effect,and flexible installation options,making them versatile for various entertainment and decorative purposes.

IP20 Protection rate, is suitable for indoor stage dj applications.



Technical & Specification



Model

Model Name: IP20 18X8 PAR CAN
Model Code: PC-1808



Light Source

Light Source: 18x8w RGBW LEDs+51*0.3W SMD RGB LEDs
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 26°



Control

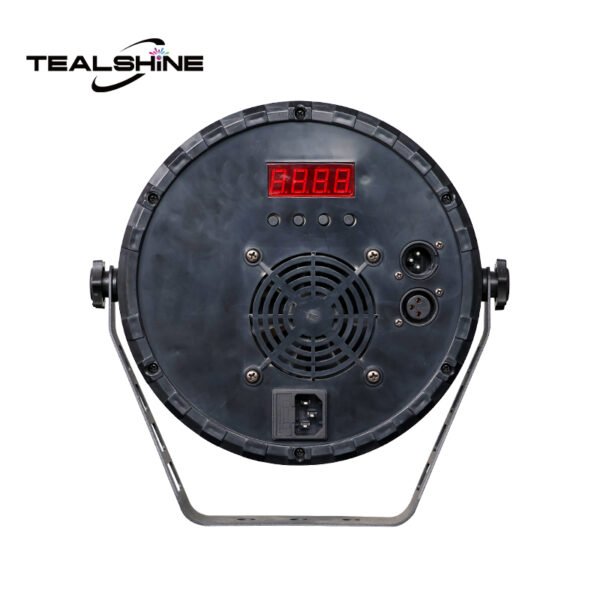

4 touch button control panel
Display: 1.4 inch display
Protocols: DMX512,sound activated or auto operation
Control Channels: 7/9/11/13
Firmware Upgrade: Upgrade via DMX link



Other Effects

Outstanding strobe effect with variable speed
Flicker-free management
Smooth Dimmer: 0~100%
Pulse effect
Strobe:1-30Hz
Each color control individually
Pure smooth color Mixing
Color temperature linear up and down in 1800K-10000K
Different kinds of preset macro effects with variable speed
Impressive halo ring effect







Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 210W
Power In/Out: IP20 power connector IN/OUT
Data In/Out: IP20 3-pin XLR connector IN/OUT



Housing

Material: ABS Plastic
Finishing:Matt black
IP Rate: IP20
Net Weight: 1.3 kgs(2.9 lbs)
Gross Weight: 2 kgs (4.4 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -10°C
Protection Rating: IP20



Approvals

CE compliant
RoHS compliant

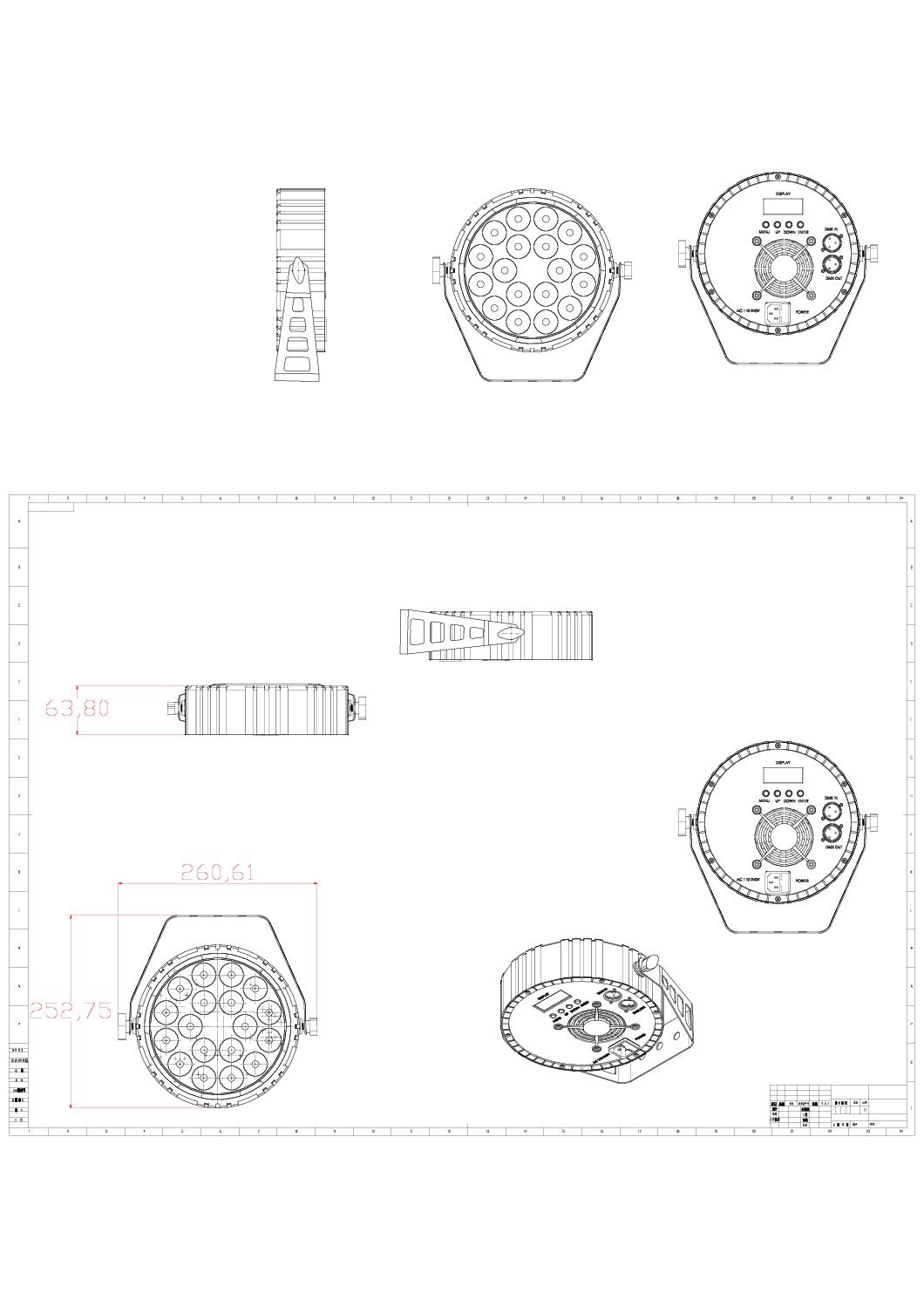

装配体单提手1cad2pdf pdf



3 4







Optional Accessories



信号线



NAME: 3-PIN XLR Signal Cable
ORDER CODE:3-PIN Signal cable

电源线



NAME: PowerCon Cable
ORDER CODE : PowerCon Cable

灯钩jpg 1



NAME: Clamp
ORDER CODE : Bclamp,Mclamp,Sclamp

安全绳

NAME: Black Safety Chain
ORDER CODE : Bchain

omega

NAME: Omega Blacket
ORDER CODE :Lomega,Momega,Somega

flight case 1

NAME: 2 IN 1 FLIGHT CASE
ORDER CODE : 2IN1 FC
