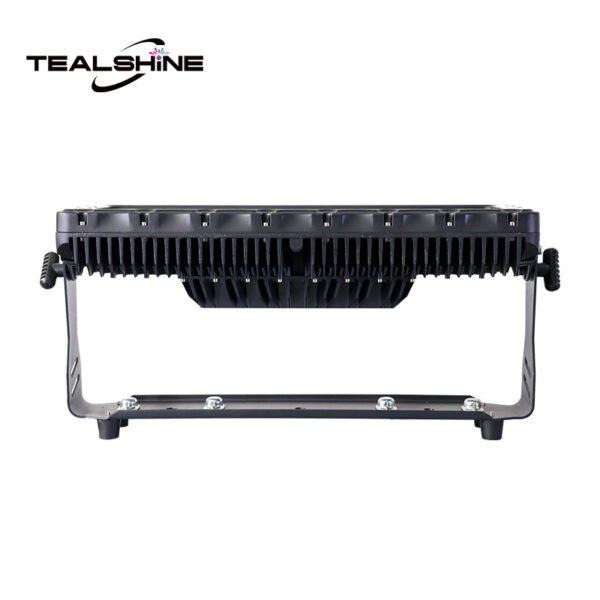

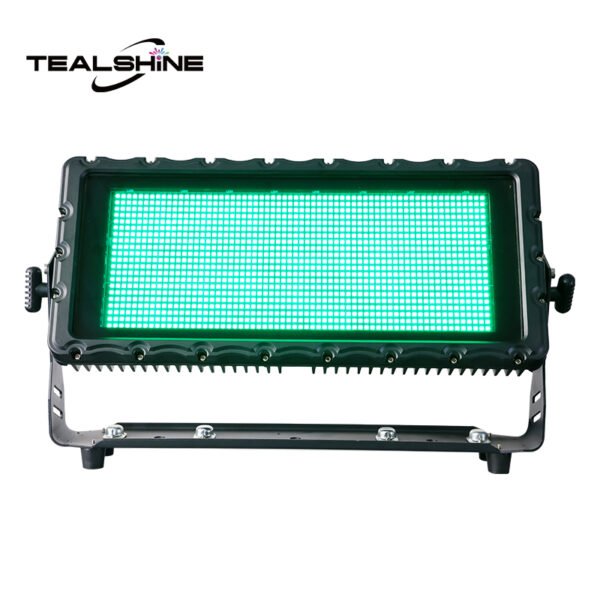

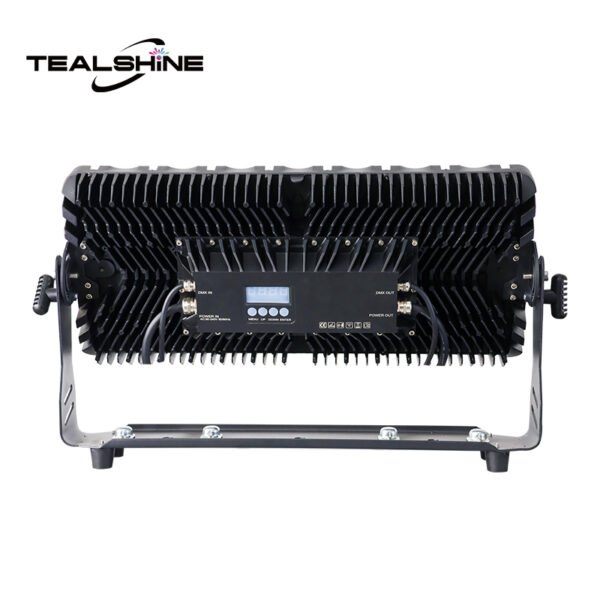

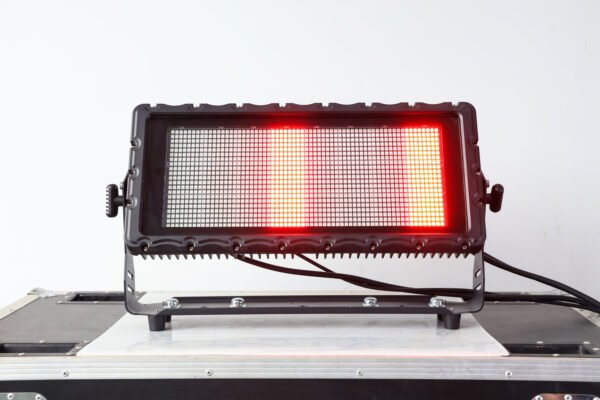

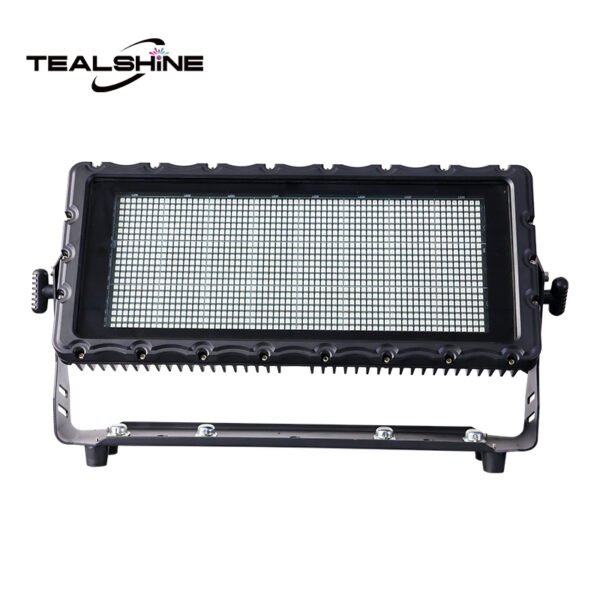

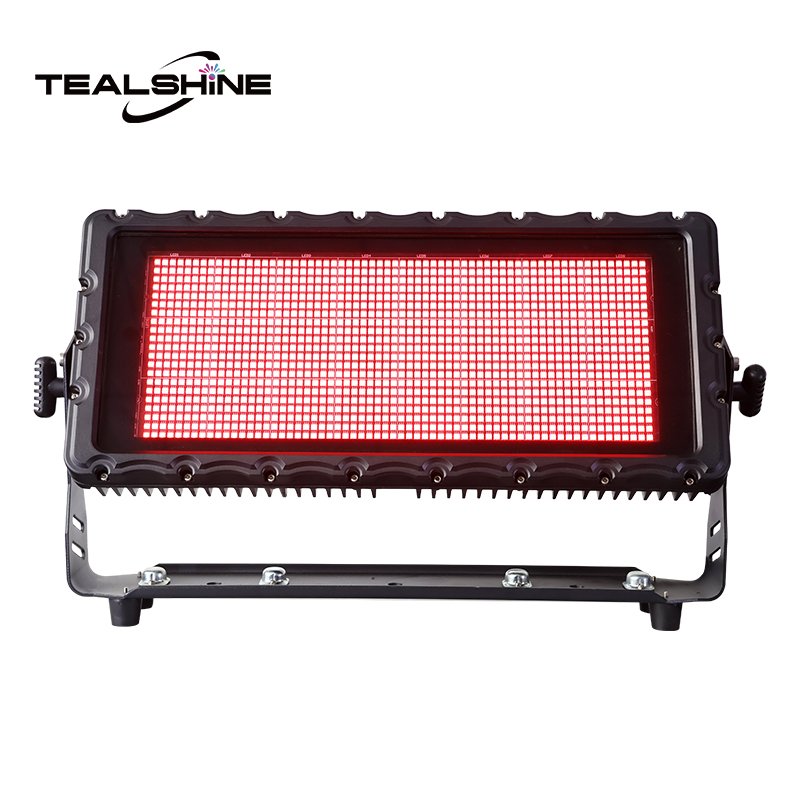

IP65 1334 STROBE PANEL LIGHT

Light Source1334 pcs*0.3W RGB LEDs
LED Life Expectancy50,000 hours
Beam Angle60°
Protection RateIP65
Product Dimension640x127x290mm
Net Weight15.8 kgs (34.8 lbs)



Edit Content
4

Overview

IP65 Mini strobe panel light is an indoor LED effect light, featuring 1334 pcs*0.3W RGB LEDs,it is an amazing effect light with light weight design.

This mini IP65 led light on stage is a professional-grade lighting solution that seamlessly integrates explosive strobe power with exceptional visual creativity.In response to designers’ demand for versatile effect lights beyond single-function devices,the mini strobe delivers multi-functional capabilities as a power 24-zones strobe,bright blinder,high-output wash light,and creative visual effect-all in one unit.Additionally it offers the external  RGB strobe line via DMX control channels or menu settings,facilitating simplified cloning operations.

IP65 Protection rate, is suitable for indoor&outdoor stage applications.



Technical & Specification



Model

Model Name: IP65 Mini Strobe Panel Light
Model Code: EL-1334IP



Light Source

Light Source: 1334 pcs*0.3W RGB LEDs
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 60°



Control

4 touch button control panel
Display: OLED display
Protocols: DMX512,sound activated or auto operation
Control Channels: 3/7/12
Firmware Upgrade: Upgrade via DMX link



Other Effects

Outstanding strobe effect with variable speed
Smooth dimming 0-100%
Flicker-free management
Strobe:1-30Hz
Individual LED zones: 24 RGB-zones
Each color control individually
Pulse effect
Strobe:1-30Hz
Pure smooth Color Mixing
Different kinds of preset macro effects with variable speed









Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 400W
Power In/Out: IP65 power connector IN/OUT
Data In/Out: IP65 3-pin waterproof XLR



Housing

Material: Aluminium die-cast
Finishing:Matt black
IP Rate: IP65
Net Weight: 15.8 kgs(34.8 lbs)
Gross Weight: 17.8 kgs (39 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Protection Rating: IP65



Approvals

CE compliant
RoHS compliant

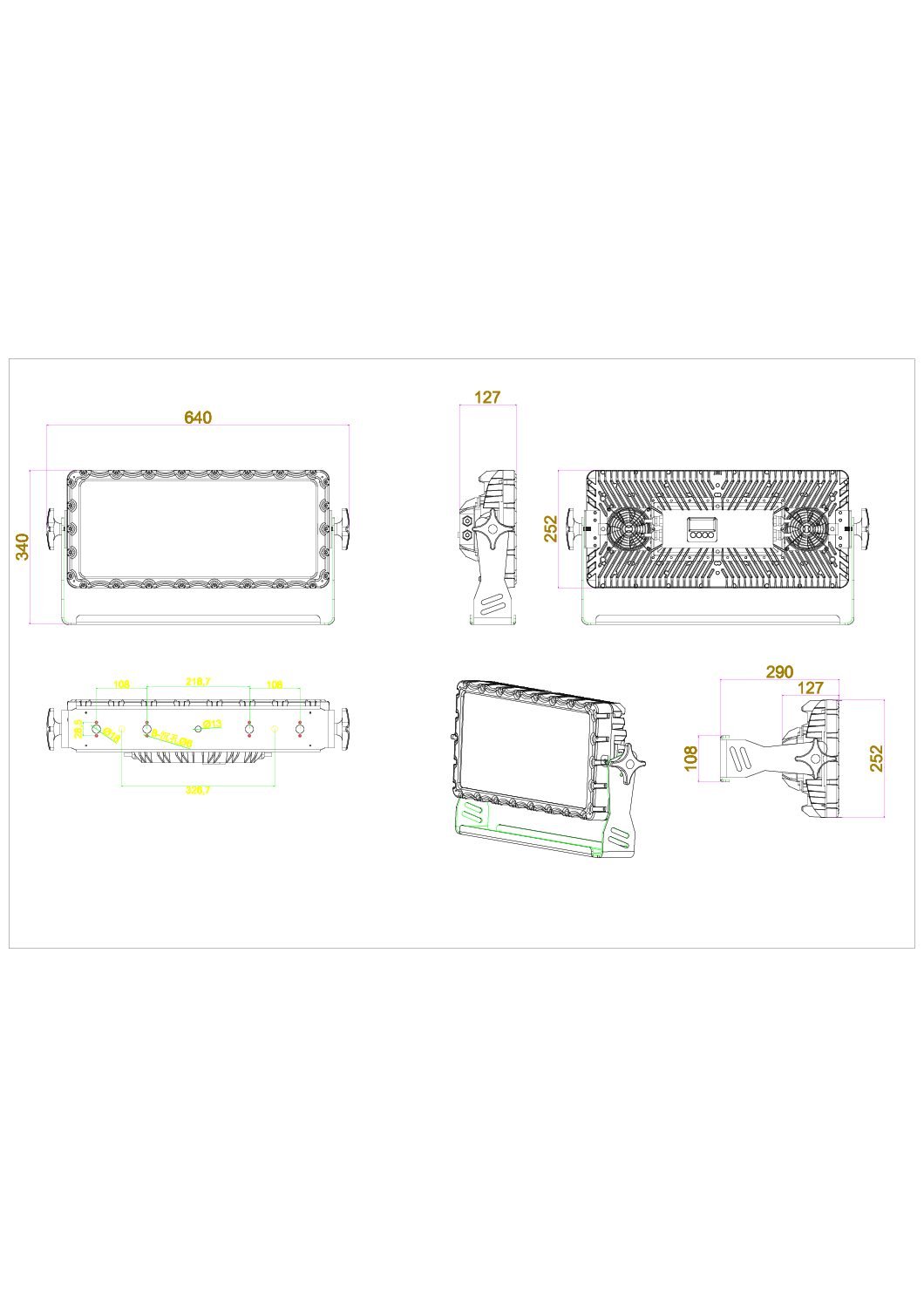

大频闪灯尺寸2cad2pdf pdf











Optional Accessories



test01



NAME: 3-PIN XLR Signal Cable
ORDER CODE:3-PIN Signal cable

电源线



NAME: PowerCon Cable
ORDER CODE : PowerCon Cable

灯钩jpg 1



NAME: Clamp
ORDER CODE : Bclamp,Mclamp,Sclamp

安全绳

NAME: Black Safety Chain
ORDER CODE : Bchain

omega

NAME: Omega Bracket
ORDER CODE :Lomega,Momega,Somega

flight case

NAME: 2 IN 1 FLIGHT CASE
ORDER CODE : 2IN1 FC
