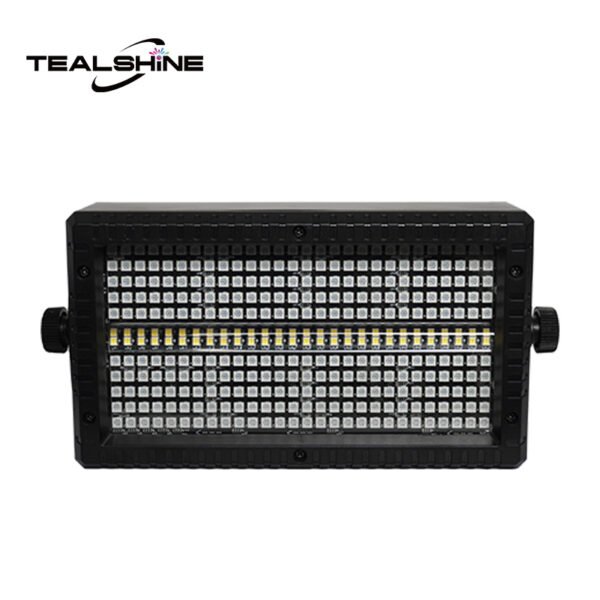

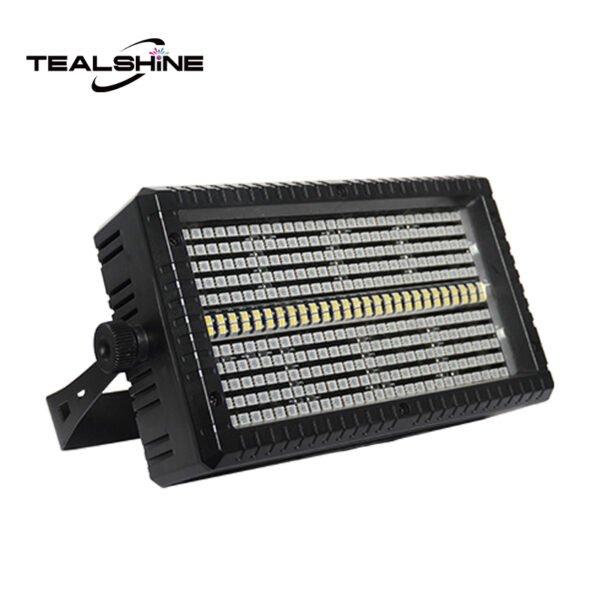

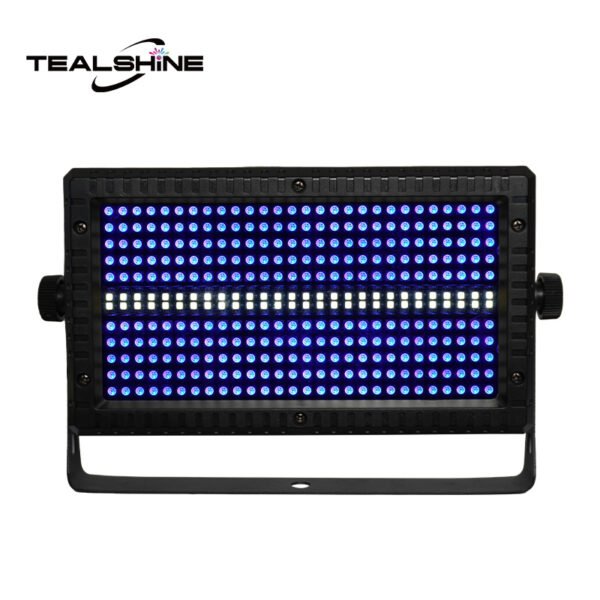

IP20 Mini Strobe Effect Light

Light Source 280×0.2w RGB 5050 SMD LEDs+56×0.25 5050 SMD LEDs
LED Life Expectancy 50,000 hours
Beam Angle 26°
Protection Rate IP20
Product Dimension 257x65x160mm
Net Weight 0.65 kg (1.4 lbs)



Overview

IP20 Mini strobe effect light is an indoor church stage lights, featuring 280×0.2w RGB 5050 SMD LEDs+56×0.25 5050 SMD LEDs,it is an amazing effect light with light weight design.

The mini strobe light is a professional-grade lighting solution that seamlessly integrates explosive strobe power with exceptional visual creativity.In response to designers’ demand for versatile effect lights beyond single-function devices,the mini strobe delivers multi-functional capabilities as a power strobe,bright blinder,high-output wash light,and creative visual effect-all in one unit.Additionally offer mirrored control functionality for central strobe lines and the external  RGB strobe line via DMX control channels or menu settings,facilitating simplified cloning operations.

IP20 Protection rate, is suitable for indoor stage light applications.

Technical & Specification



Model

Model Name: IP20 Mini Strobe Effect Light
Model Code: EL-336



Light Source

Light Source: 280×0.2w RGB 5050 SMD LEDs+56×0.25 5050 SMD LEDs
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 26°



Control

4 touch button control panel
Display: OLED display
Protocols: DMX512,sound activated or auto operation
Control Channels: 12/4/6/24/30
Firmware Upgrade: Upgrade via DMX link



Other Effects

Outstanding strobe effect with variable speed
Smooth dimming 0-100%
Flicker-free management
Strobe:1-30Hz
Horse race effect
Individual LED zones：8 RGB-zones+4 CW-zones
Pulse effect
Pure smooth Color Mixing
Different kinds of preset macro effects with variable speed

 Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 50W
Power In/Out: IP20 power connector IN/OUT
Data In/Out: IP20 3-pin waterproof XLR



Housing

Material: Metal+ABS Plastic
Finishing:Matt black
IP Rate: IP20
Net Weight: 0.65 kgs(1.4lbs)
Gross Weight: 1.05 kgs (2.3 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Protection Rating: IP20



Approvals

CE compliant
RoHS compliant
