IP65 Mini 720 Strobe Moving Light

Light Source 576 pcs*0.6W RGB LEDs+144 pcs*5W White LEDs
LED Life Expectancy 50,000 hours
Beam Angle 60°
Protection Rate IP65
Product Dimension 423x138x316mm
Net Weight 12.5 kgs (27.6 lbs)



Overview

IP65 Mini strobe effect light is an outdoor moving strobe light, featuring 576 pcs*0.6W RGB LEDs+144 pcs*5W W LEDs and 190° tilt movement,it is an amazing strobe light with light weight design.

This mini IP65 strobe light is a professional-grade lighting solution that seamlessly integrates explosive strobe power with exceptional visual creativity.In response to designers’ demand for versatile effect lights beyond single-function devices,the mini strobe delivers multi-functional capabilities as a power strobe,bright blinder,high-output wash light,and creative visual effect-all in one unit.Additionally offers mirrored control functionality for central white strobe lines and the external  RGB strobe line via DMX control channels or menu settings,facilitating simplified cloning operations.

IP65 Protection rate, is suitable for indoor&outdoor stage light dj applications.

Technical & Specification



Model

Model Name: IP65 Mini 720 Strobe Moving Light
Model Code: EL-720IP



Light Source

Light Source: 576 pcs*0.6W RGB LEDs+144 pcs*5W LEDs
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 60°



Control

4 touch button control panel
Display: OLED display
Protocols: DMX512,sound activated or auto operation
Control Channels: 8/18/61
Firmware Upgrade: Upgrade via DMX link



Other Effects

Outstanding strobe effect with variable speed
Smooth dimming 0-100%
Flicker-free management
Strobe:1-30Hz
Individual LED zones: 16 RGB-zones+8 CW-zones
Each color control individually
Pulse effect
190° Tilt movement
Strobe:1-30Hz
Pure smooth Color Mixing
Different kinds of preset macro effects with variable speed

 Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 1000W

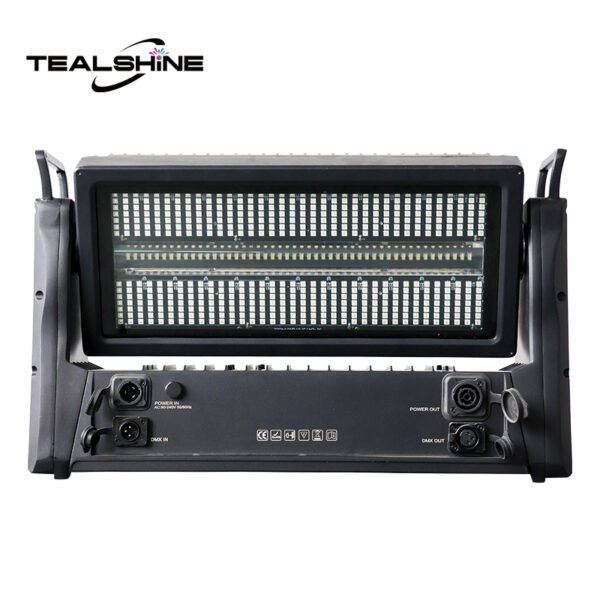

Power In/Out: IP65 power connector IN/OUT
Data In/Out: IP65 3-pin waterproof XLR



Housing

Material: Aluminium die-cast
Finishing:Matt black
IP Rate: IP65
Net Weight: 12.5 kgs(27.6 lbs)
Gross Weight: 8.6 kgs (30.9 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Protection Rating: IP65



Approvals

CE compliant
RoHS compliant
