IP20 1296 STROBE EFFECT LIGHT

Light Source1296 pcs*0.5W RGB SMD 5050 LEDs
LED Life Expectancy50,000 hours
Beam Angle60°
Protection RateIP20
Product Dimension1000*78*13mm
Net Weight3 kgs (6.6 lbs)



Edit Content
02

Overview

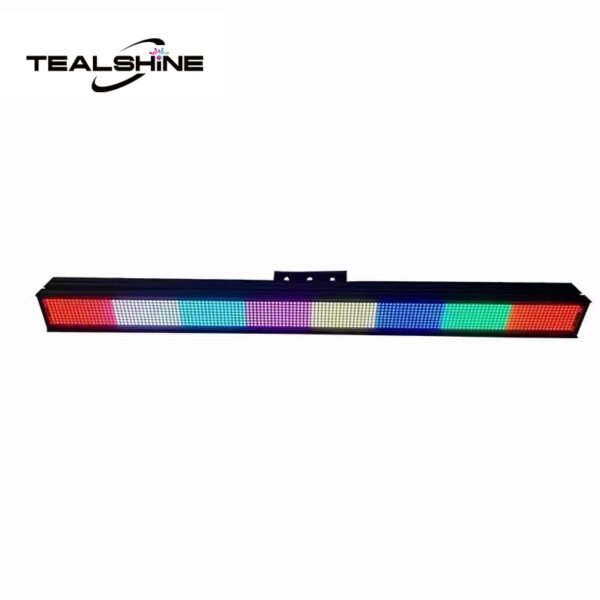

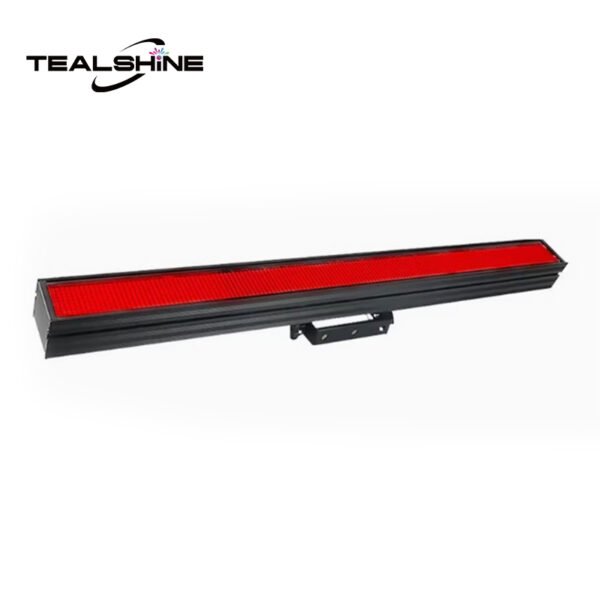

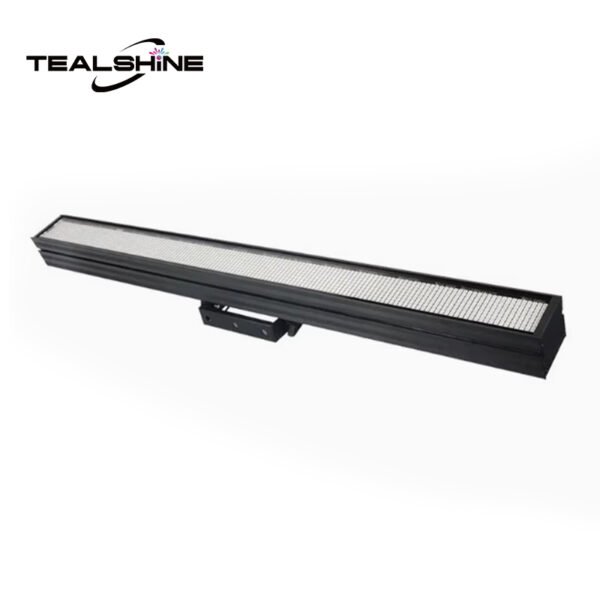

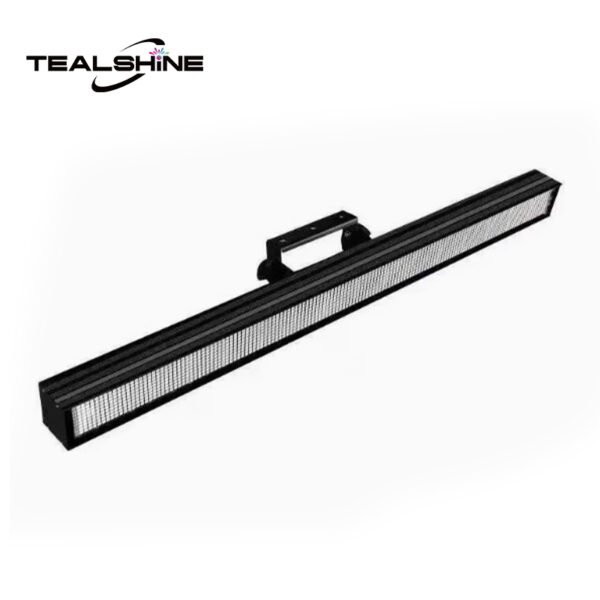

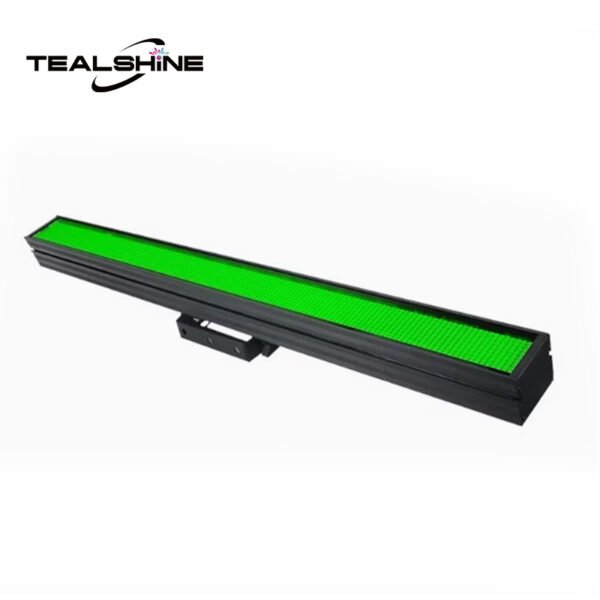

IP20 1296 Strobe Effect Light is an indoor LED effect light, featuring RGB LEDs,it is an impressive LED bar light with super light weight design.

This latest stage light is a specialized stage or decorative lighting fixture,designed to create dynamic visual effects and patterns,often used for backdrops,events,and architectural lighting.Key features include 16-zone RGB color mixing,multiple control modes,energy efficiency,and flexible installation options,making them versatile for various entertainment and decorative purposes.

IP20 Protection rate, is suitable for indoor applications.



Technical & Specification



Model

Model Name: 1296 STROBE EFFECT LIGHT
Model Code:LB-1296



Light Source

Light Source: 1296 pcs*0.5W RGB SMD 5050 LEDs
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 60°



Control

4 touch button control panel
Display: OLED display
Protocols: DMX512,sound activated or auto operation
Control Channels: 3/5/9/48/57



Other Effects

Outstanding strobe effect with variable speed
Smooth dimming 0-100%
Flicker-free management
Pulse effect
Strobe:1-30Hz
Pure smooth Color Mixing
Different kinds of preset macro effects with variable speed







Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 130W
Power In/Out: IP20 power connector IN/OUT
Data In/Out: IP20 3-pin XLR connector IN/OUT



Housing

Material: Metal+ABS Plastic
Finishing:Matt black
IP Rate: IP20
Net Weight: 3 kgs(6.6 lbs)
Gross Weight: 3.8 kgs (8.3 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Protection Rating: IP20



Approvals

CE compliant
RoHS compliant



3 3

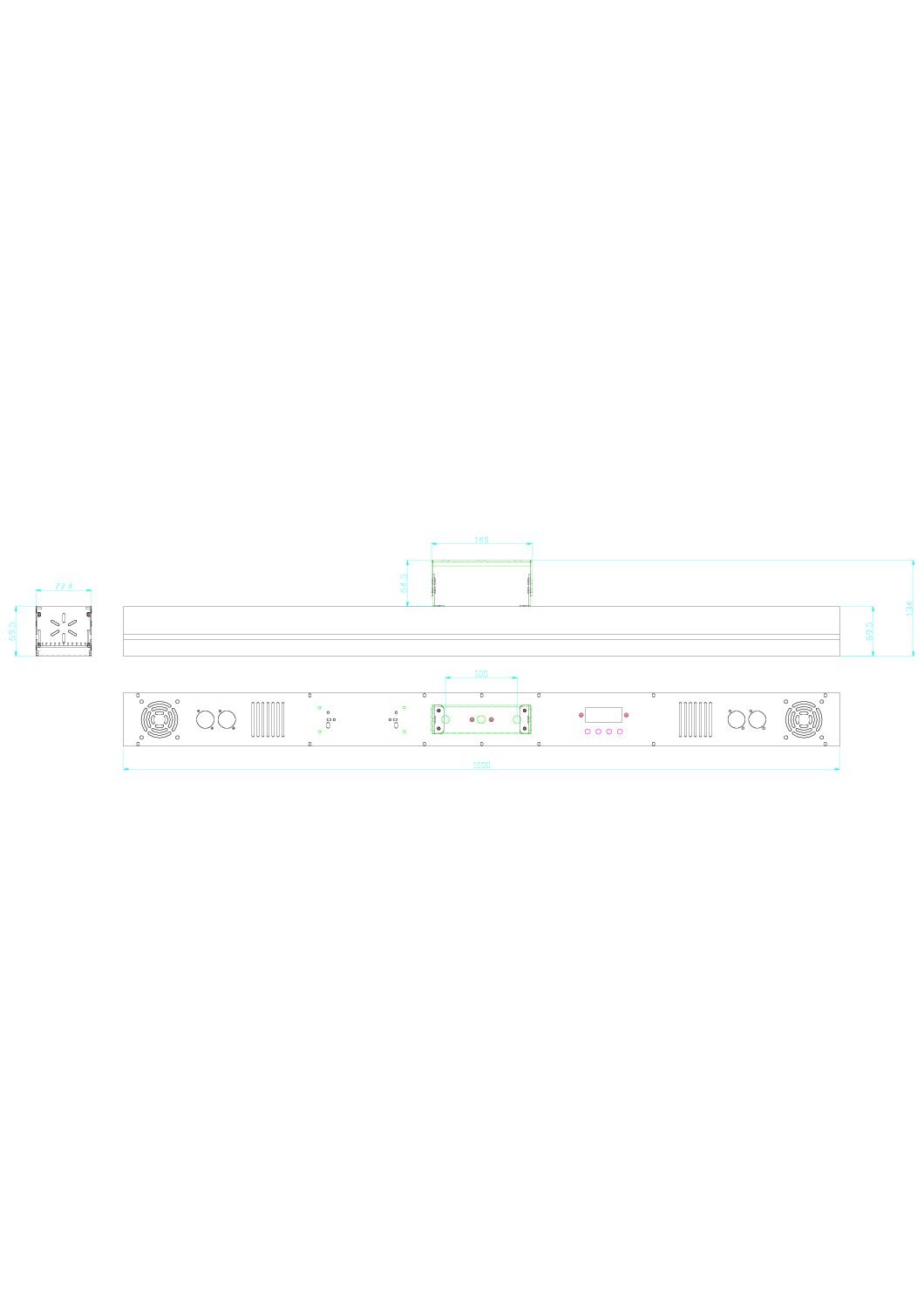

大长条频闪1米尺寸图cad2pdf pdf







Optional Accessories



信号线



NAME: 3-PIN XLR Signal Cable
ORDER CODE:3-PIN Signal cable

电源线 1



NAME: PowerCon Cable
ORDER CODE : PowerCon Cable

灯钩jpg 1



NAME: Clamp
ORDER CODE : Bclamp,Mclamp,Sclamp

安全绳

NAME: Black Safety Chain
ORDER CODE : Bchain

omega

NAME: Omega Blacket
ORDER CODE :Lomega,Momega,Somega

flight case

NAME: 2 IN 1 FLIGHT CASE
ORDER CODE : 2IN1 FC
