Overview

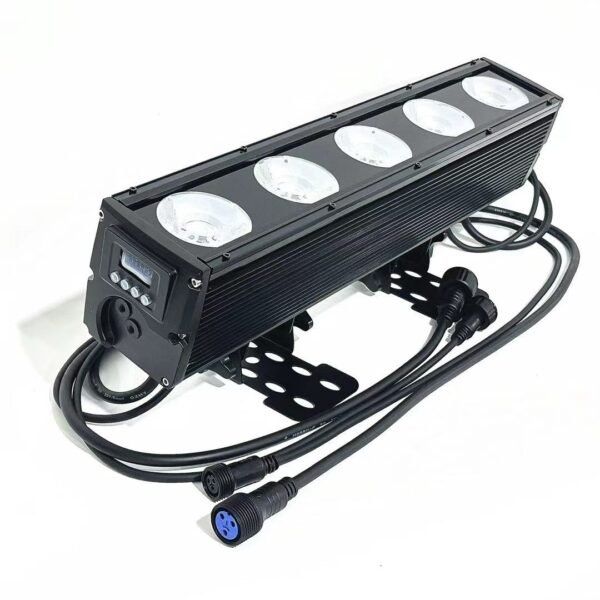

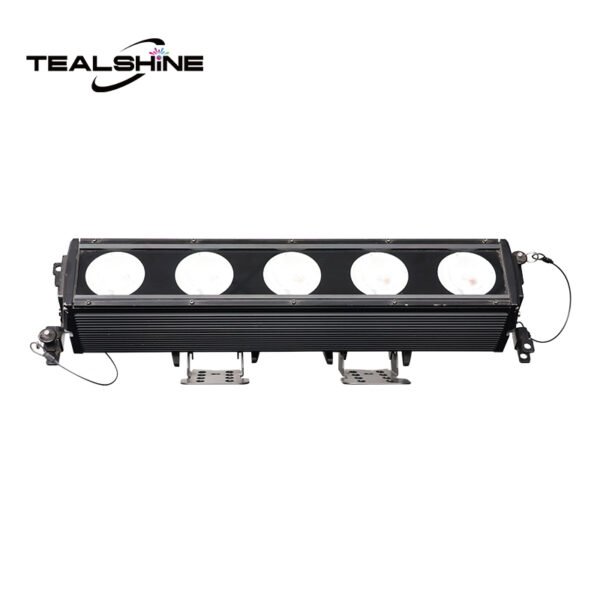

IP65 LED 5X50W bar light is an indoor LED effect light, featuring 5x50W LEDs,it is an impressive LED bar light with super light weight design.

This powerful led 5X50 bar light is a specialized stage or decorative lighting fixture featuring a row of individually controlled LEDs designed to create dynamic visual effects and patterns,often used for backdrops,events,and architectural lighting.Key features include full RGBW color mixing,multiple control modes,energy efficiency,and flexible installation options,making them versatile for various entertainment and decorative purposes.

IP65 Protection rate, is suitable for indoor and outdoor stage applications.

Technical & Specification

Model

Model Name: IP65 5X50 LED BAR LIGHT
Model Code: LB-550IP

Light Source

Light Source: 5X50w RGBW LEDs
Life Expectancy: 50,000 hours

Optical System

Beam Angle: 8°

Control

4 touch button control panel
Display: OLED display
Protocols: DMX512,sound activated or auto operation
Control Channels: 3/4/6/7/8/12/13/24/25/60/61/120/121
Firmware Upgrade: Upgrade via DMX link

Other Effects

Outstanding strobe effect with variable speed
Smooth dimming 0-100%
Flicker-free management
Each pixel control individually
Pulse effect
Strobe:1-30Hz
Horse race effect
Pure smooth Color Mixing
Different kinds of preset macro effects with variable speed

Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 250W

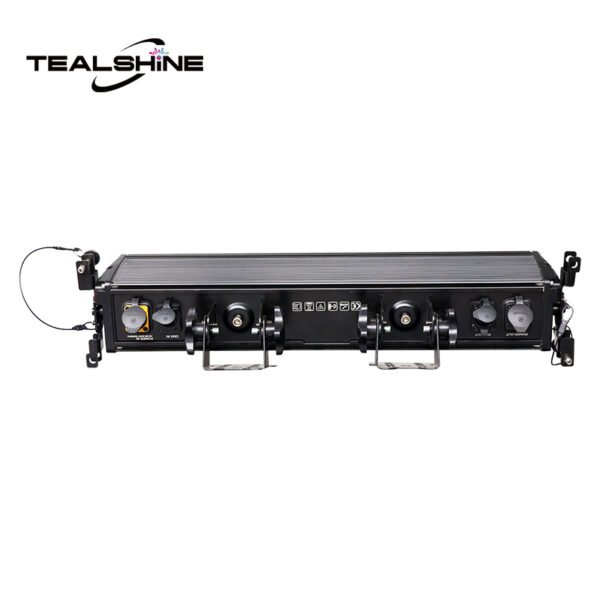

Power In/Out: IP65 power connector IN/OUT
Data In/Out: IP65 3-pin waterproof XLR

Housing

Material: Metal+ABS Plastic
Finishing:Matt black
IP Rate: IP20
Net Weight: 4 kgs(8.8 lbs)
Gross Weight: 5.8 kgs (12.8 lbs)

Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management

Work Environment

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Protection Rating: IP65

Approvals

CE compliant
RoHS compliant
