Overview

IP65 COB Eye 120 is an outdoor LED par light with halo effect, featuring 120-Watt RGBL LEDs and 30×0.2 RGB strip effect, it is innovative mini par with light weight design.

The equidistant LED design ensures uniform output and 26° angles could meet wash beam application, covering a larger area with superior color mixing and spread wash.

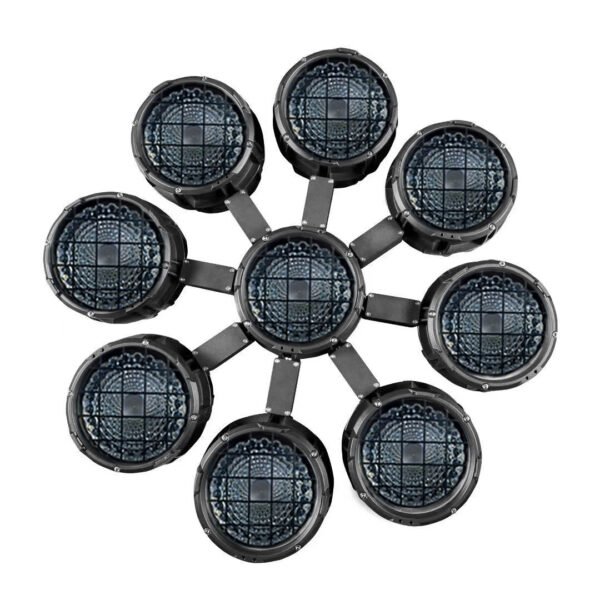

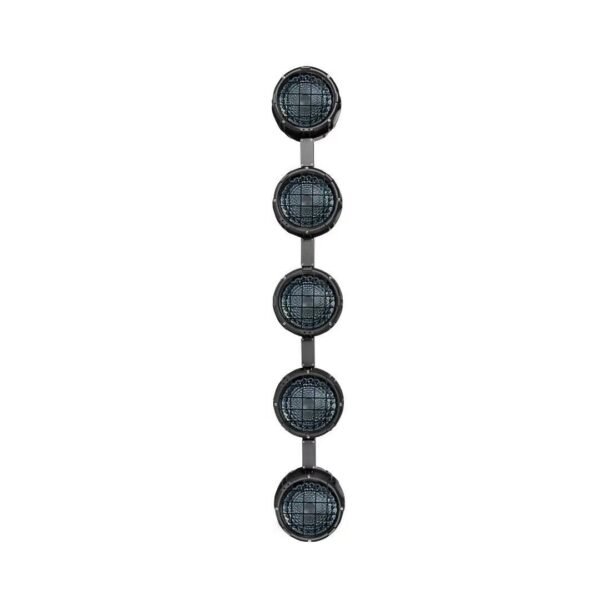

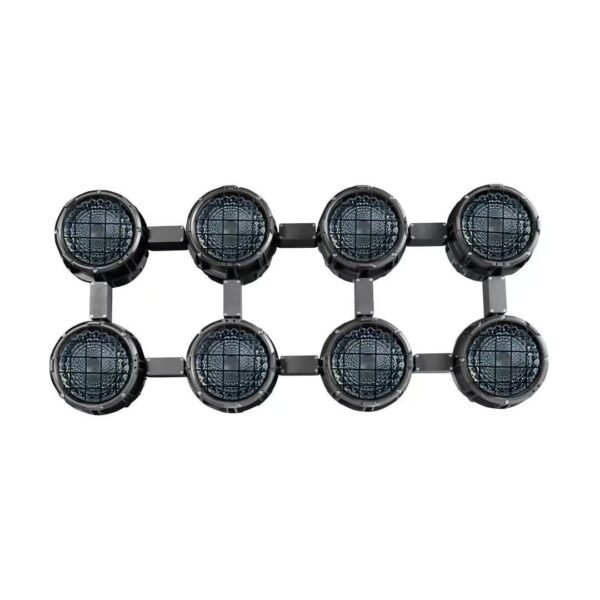

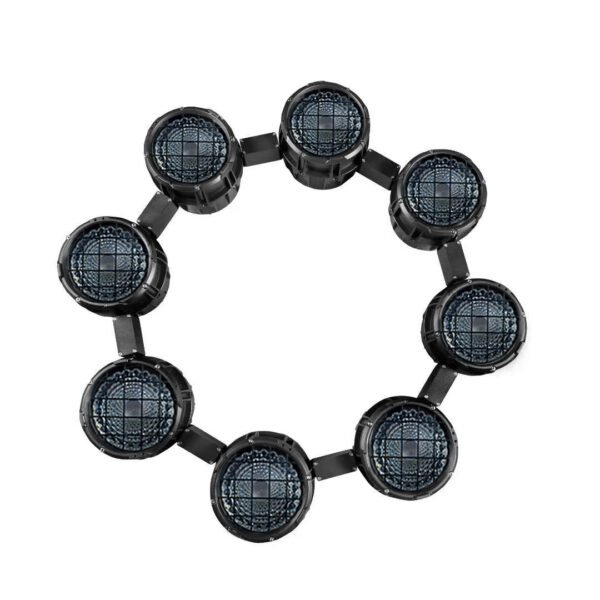

IP65 Eye 120 makes installation faster and easier, thanks to the splicing surfaces,use it as a single-cell,2-or 4-cell par can or connect even more fixtures together for a versatile effects panels that is perfect for eye-candy looks.

IP65 Protection rate, the exterior par stage light, is suitable for indoor and outdoor stage applications.

Technical & Specification

Model

Model Name: IP65 COB EYE 120
Model Code: PC-120CIP

Light Source

Light Source: 120 RGBL LED,30×0.2w RGB SMD LEDs
Life Expectancy: 50,000 hours

Optical System

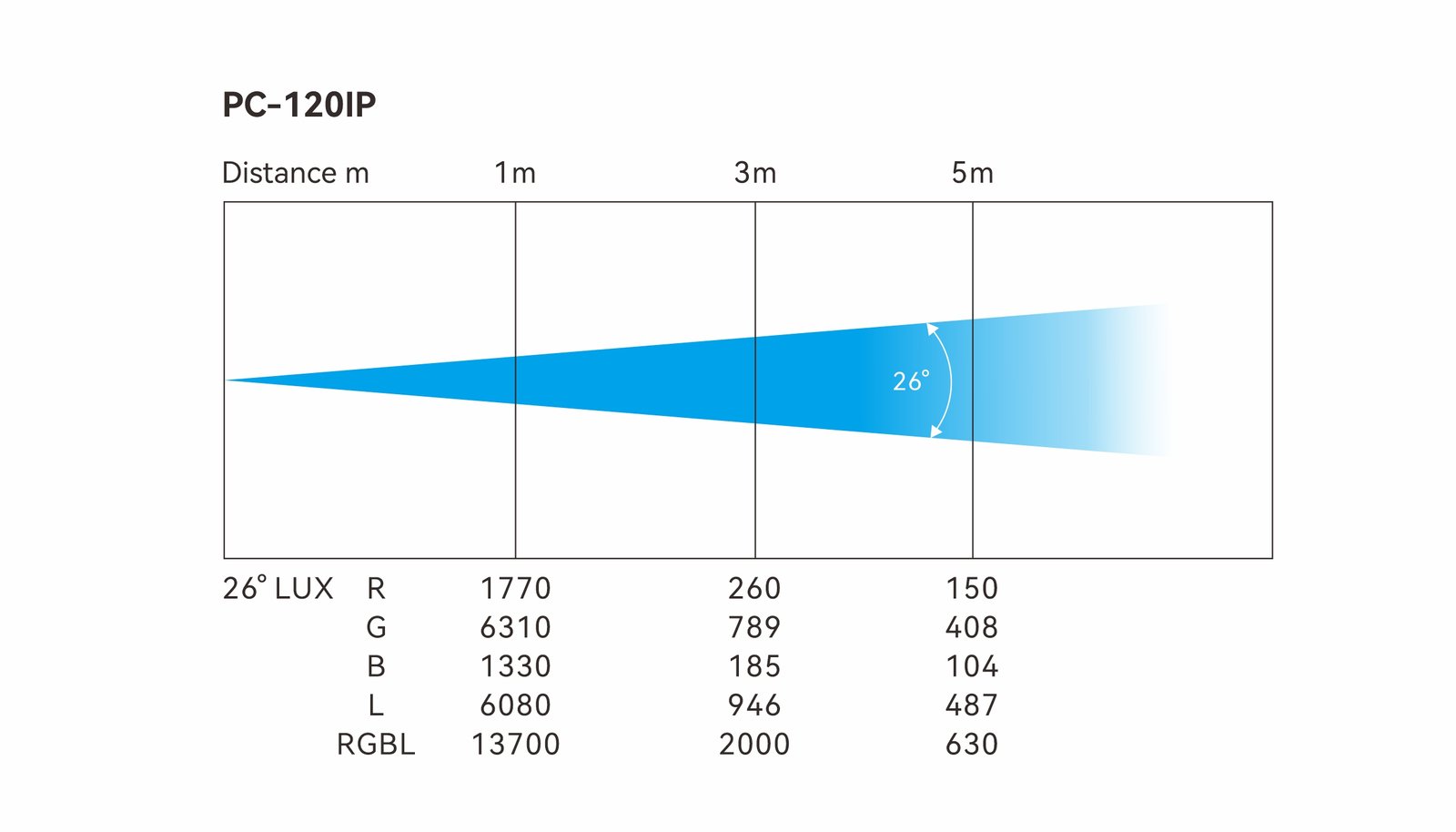

Beam Angle: 26°

Control

4 touch button control panel
Display: 1.4inch display
Protocols: DMX512
Control Channels: 36/32/22/04
Firmware Upgrade: Upgrade via DMX link

Other Effects

Outstanding strobe effect with variable speed
Smooth dimming 0-100% (4 user selectable dimming curves)
Flicker-free management
Strobe:1-30Hz
Pure smooth color mixing
Color temperature linear up and down in 1800k-10000k

Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 150W
Power In/Out: Waterproof power connector IN/OUT
Data In/Out: Waterproof 3-pin waterproof XLR

Housing

Material: Aluminum die-cast
Finishing:Matt black
IP Rate: 65
Net Weight: 4.4 kgs(9.7lbs)
Gross Weight: 5.4 kgs (11.9 lbs)

Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management

Work Environment

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Protection Rating: IP65

Approvals

CE compliant
RoHS compliant
