IP65 Avanced Battery Powered Par Uplightings

Light Source12x18w RGBWA+UV LEDs
LED Life Expectancy50,000 hours
Beam Angle15°/25°/45°/60°
Protection RateIP65
Product Dimension280x115x290mm
Net Weight 4.95 kgs (10.9 lbs)



Overview

The BP-1218IP Battery powered uplighting utilizes die-cast aluminum technology, upgrading its LEDs from RGBW to RGBWA+UV, achieving a wider color gamut, richer color tuning, and smoother color transitions. The 12*18W RGBWA+UV LEDs offer full pixel control. Built-in DMX wireless technology, Wi-Fi app, and IR functionality simplify installation, eliminating the need for wiring and significantly reducing setup and dismantling time, making it particularly suitable for mobile performances and events with limited power.

Wider RGBWA+UV Color Gamut, More Natural Color Mixing
This par light uses RGBWA+UV LEDs, offering superior color mixing compared to traditional RGBW. It overcomes the coldness and harsh transitions often found when mixing RGB and pure white, allowing for precise control of warm gold, soft orange, and natural flesh/skin tones, resulting in unique fluorescent reactions and a “black light” stage visual effect.
Color temperature is more natural, and color transitions are smoother.

Full Pixel Control, Rich Macro Functions
This battery light features full pixel control for the LEDs and a rich set of macro function patterns, reducing the programming workload for lighting engineers.

Built-in DMX wireless, IR, and WIFI APP control
The stage lights feature self-propelled operation, voice control, wireless DMX control, IR control, and WIFI app control, greatly simplifying stage performances and eliminating the constraints of cumbersome signal and power cables.
These features significantly improve lighting efficiency, making light adjustments, color switching, and scene synchronization more intuitive, flexible, and convenient. Ideal for wedding parties, small band performances, and outdoor events.

Built-in Battery
The battery charging time is approximately 6-8 hours. It can run for 8 hours in single color and auto modes, and for 4 hours at full power, greatly facilitating performances.

Die-cast Aluminum Metal Structure
Utilizing a precision-machined die-cast aluminum shell, it offers excellent heat dissipation and can withstand harsh external environments, ensuring long-term reliability and stability.

It enhances structural strength while optimizing heat dissipation; its durable metal shell ensures long-term reliability and stability in demanding professional environments.

Waterproof Protection
IP65 Protection rate, is suitable for indoor&outdoor stage light dj applications.

Technical & Specification



Model

Model Name: IP65 12X18 BATTERY POWERED PAR CAN
Model Code: BP-1218IP



Light Source

Light Source: 12X18W RGBWA+UV LEDs
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 15°/25°/45°/60°



Control

4 touch button control panel
Display: 1.4 inch display
Protocols: DMX512,sound activated or auto operation,IR,Wireless,Wifi App
Control Channels: 6/8/10
Firmware Upgrade: Upgrade via DMX link



Other Effects

Outstanding strobe effect with variable speed
Pure and smooth color mixing
Each color control individually
Different kinds of preset macro effects with variable speed
0~100% linear dimming(4 user selectable dimming curves)
1.2-24K LED PWM frequency
Charging time:6-8 hours
Full power:3 hours
Auto run:8 hours
Single color running:8 hours
Battery capacity:10400MAH
DMX Channels: 6/8/10
Display: 4-button LED display control panel

Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 108W
Power In/Out: IP65 power connector IN/OUT
Data In/Out: IP65 3-pin XLR connector IN/OUT



Housing

Material: Aluminum die-cast
Finishing:Matt black
IP Rate: IP65
Net Weight: 4.95 kgs(10.9 lbs)
Gross Weight: 5.95 kgs (13.1 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -10°C
Protection Rating: IP65



Approvals

CE compliant
RoHS compliant

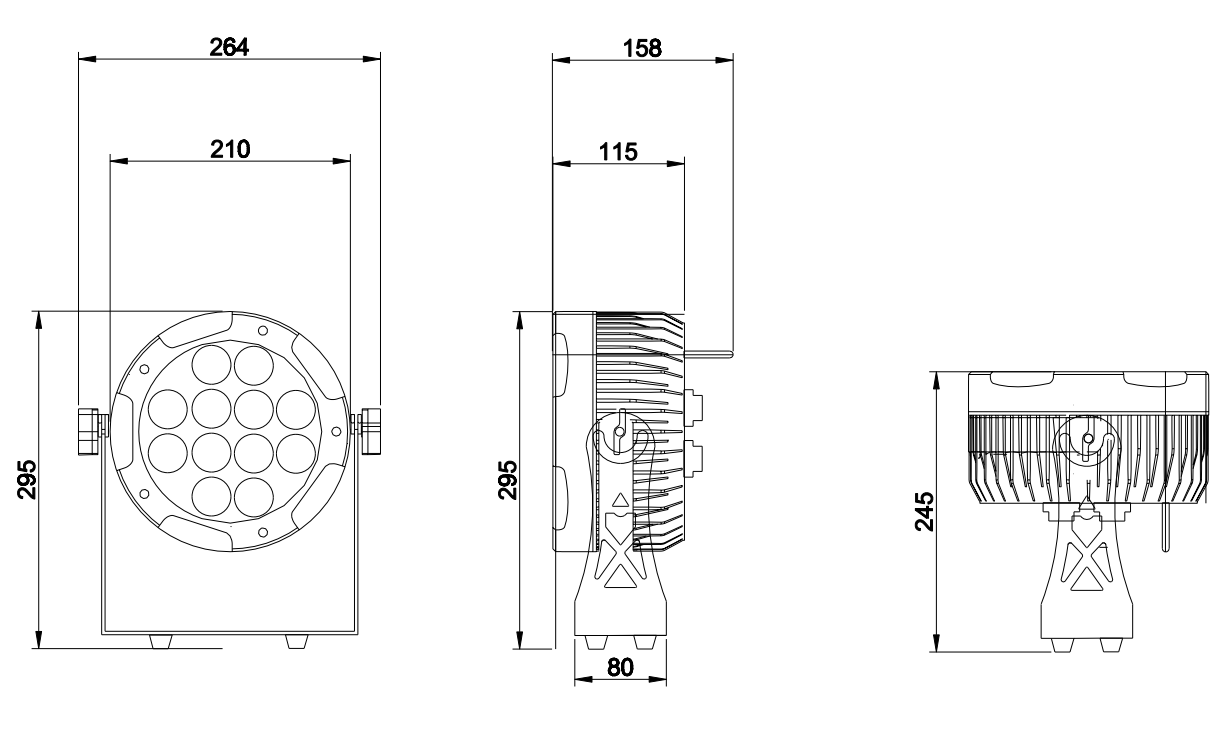

Technical drawing of the IP65 Versatile Battery Powered Par Uplightings, a rectangular device with a circular vent, displaying front, side, and rear views along with measurements: 295mm tall, 264mm wide, and 158mm deep. The illustration details the vent and mounting base features designed for optimal use in battery powered uplighting applications.

A chart comparing dimmer curves and ramp effects, featuring graphs and a table that showcase different dimming times for Stage, TV, Architectural, and State 2 settings—including how these settings can be optimized for the IP65 Versatile Battery Powered Par Uplightings—plus four graphs illustrating linear, square, inverse square, and S-curve dimming.
