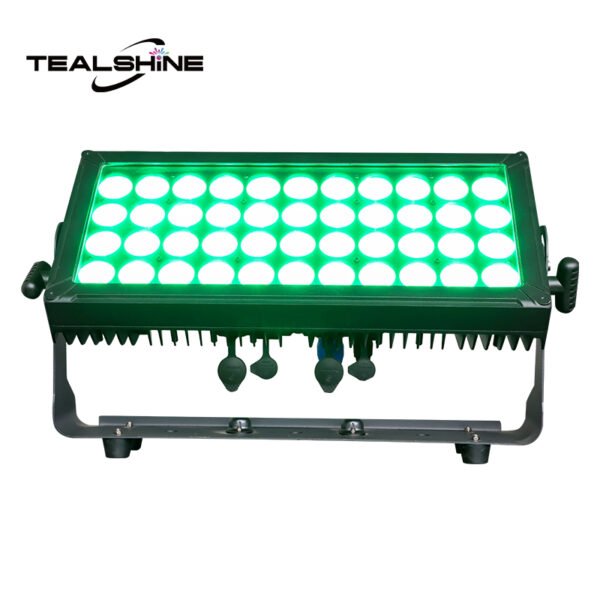

  1. wall washer for stage
  2. IP65 44X10W STUNNING PANEL LIGHT
  3. IP65 44X10W STUNNING PANEL LIGHT
  4. IP65 44X10W STUNNING PANEL LIGHT

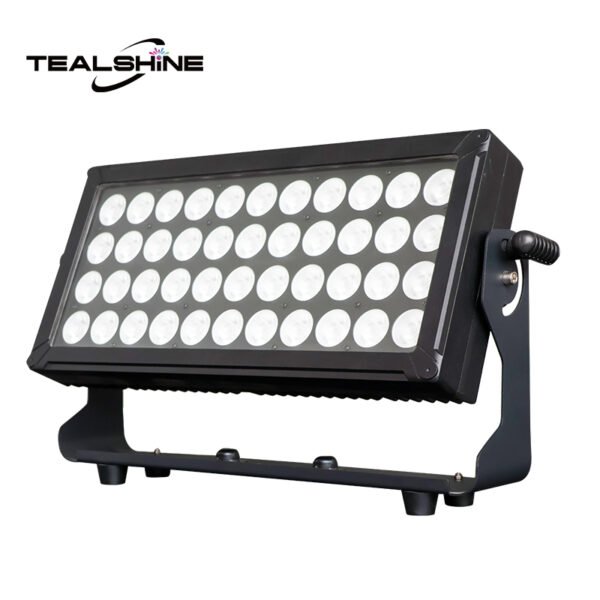

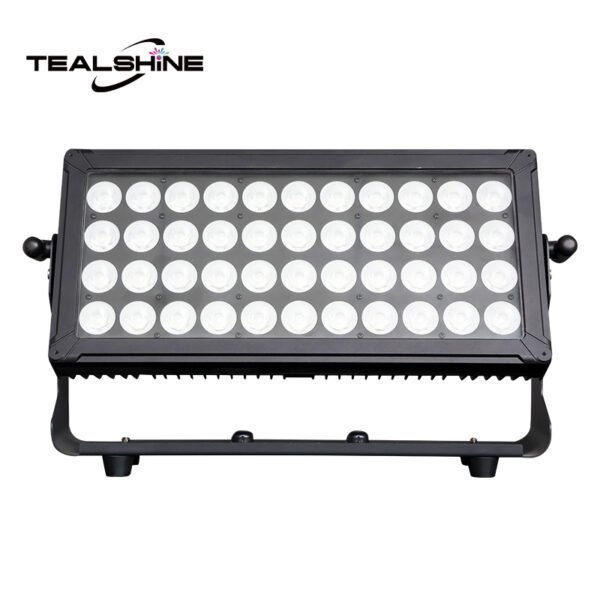

IP65 44X10W STUNNING PANEL LIGHT

Light Source44x10W RGBW LED
LED Life Expectancy50,000 hours
Beam Angle26°
Protection RateIP65
Product Dimension509x117x264mm
Net Weight7.9kg (17.4 lbs)



Edit Content

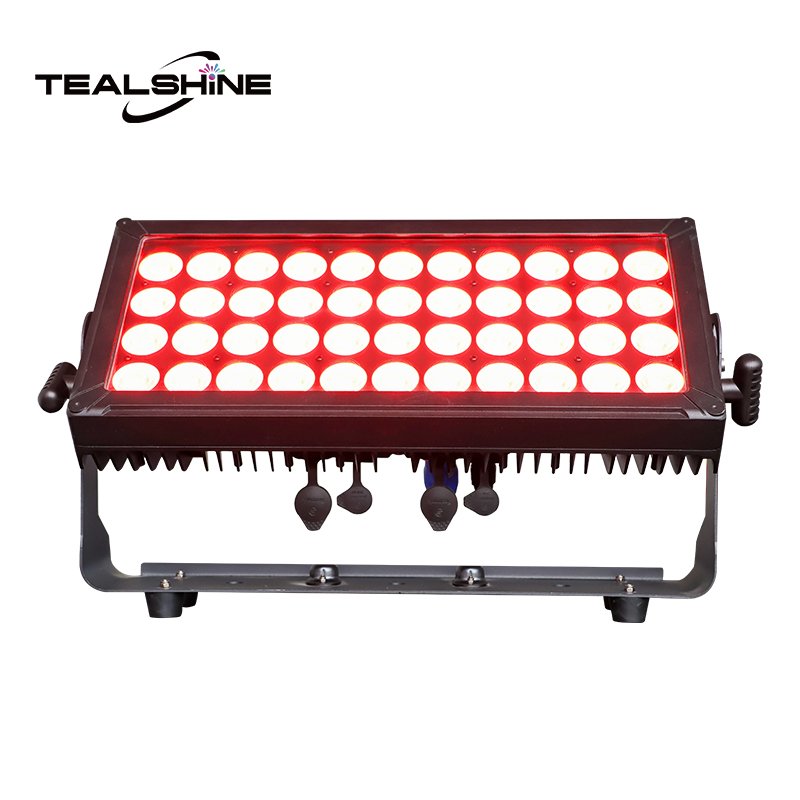

led stage panel light for stage
44x10w RGBW leds

Overview

IP65 44X10W Panel light is an outdoor LED floor light, featuring 20-Watt quad-color RGBW LEDs,it is an innovative wash light with light weight design.

The equidistant LED design ensures uniform output and 26° angles could meet wash beam application, covering a larger area with superior color mixing and spread wash.This powerful panel light is a compact yet powerful outdoor floodlight designed for diverse applications.Boasting an IP65 certification,the fixture features high-quality construction that effectively prevents dust and water ingress.Its IP-rated connections make it an ideal solution for illuminating large-scale outdoor events with vibrant,high-intensity colors.The unit offers flexible installation options,including floor-standing operation and versatile mounting in any orientation via the included omega brackets.Additionally,with full pixel control and integrated strobe functionality,the 44x10w panel stage light serves as a versatile effects fixture and audience blinder.

IP65 Protection rate, is suitable for indoor and outdoor stage lighting led applications.



Technical & Specification



Model

Model Name: IP65 44X10W Panel Light
Model Code: FL-4410IP



Light Source

Light Source: 44x10W RGBW LED
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 26°



Control

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM,ARTNET,sACN(Optional),sound activated or auto operation
Control Channels: 6/10
Firmware Upgrade: Upgrade via DMX link



Other Effects

Outstanding strobe effect with variable speed
Smooth dimming 0-100%
Flicker-free management
Pulse effect
Strobe:1-30Hz
Full pixel control
Pure color mixing
Barndoor(Optional accessory)
Different kinds of preset macro effects with variable speed
Impressive cross-fade effect
Outstanding strobe effect with variable speed

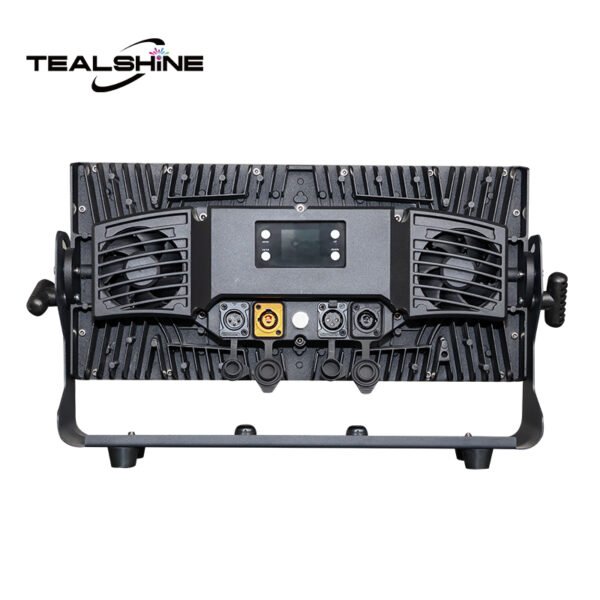

Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 440W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin waterproof XLR



Housing

Material: Aluminum die-cast
Finishing:Matt black
IP Rate: 65
Net Weight: 7.9 kgs(17.4lbs)
Gross Weight: 9.4 kgs (20.7 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Protection Rating: IP65



Approvals

CE compliant
RoHS compliant

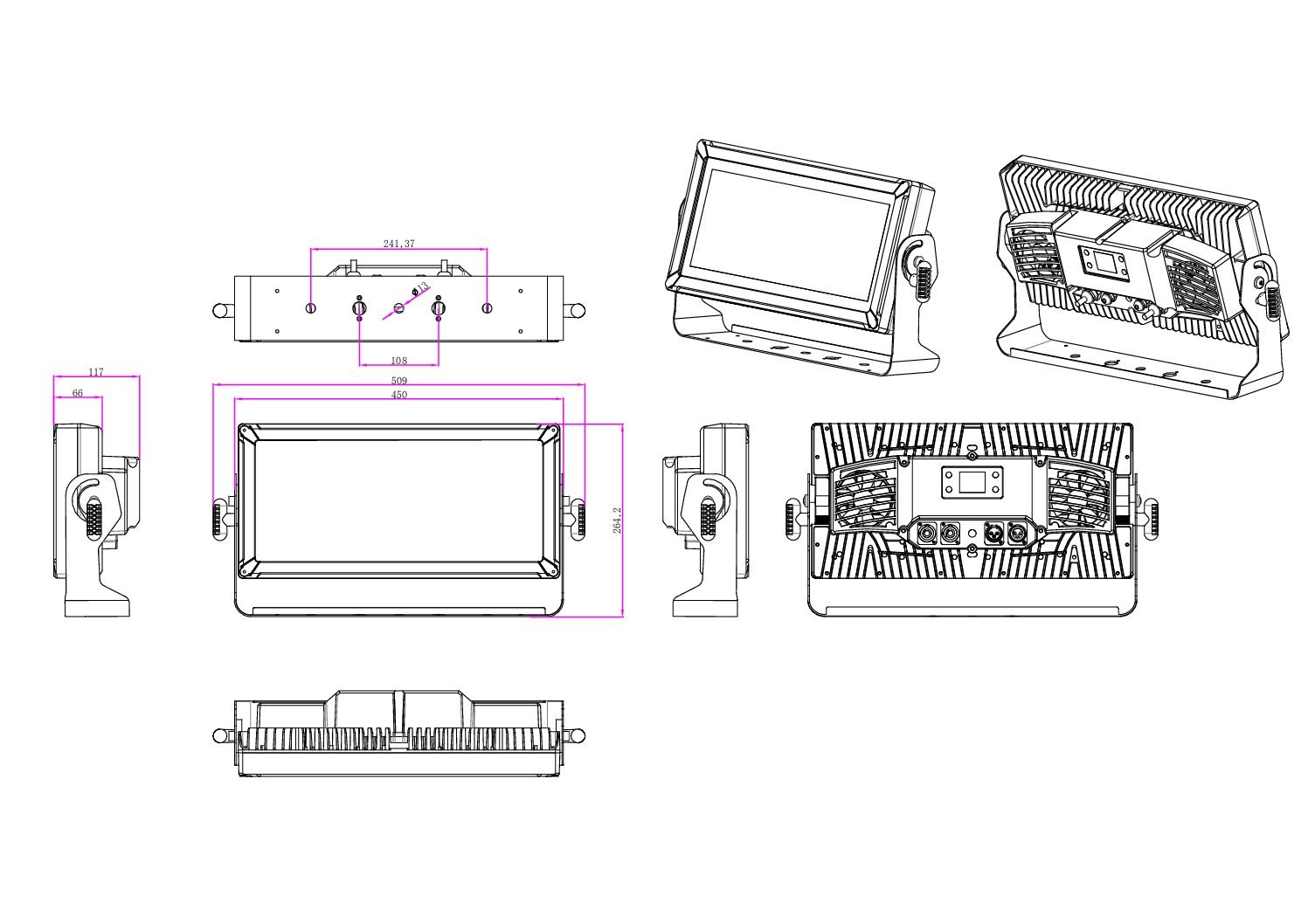

星脉投光灯尺寸 pdf

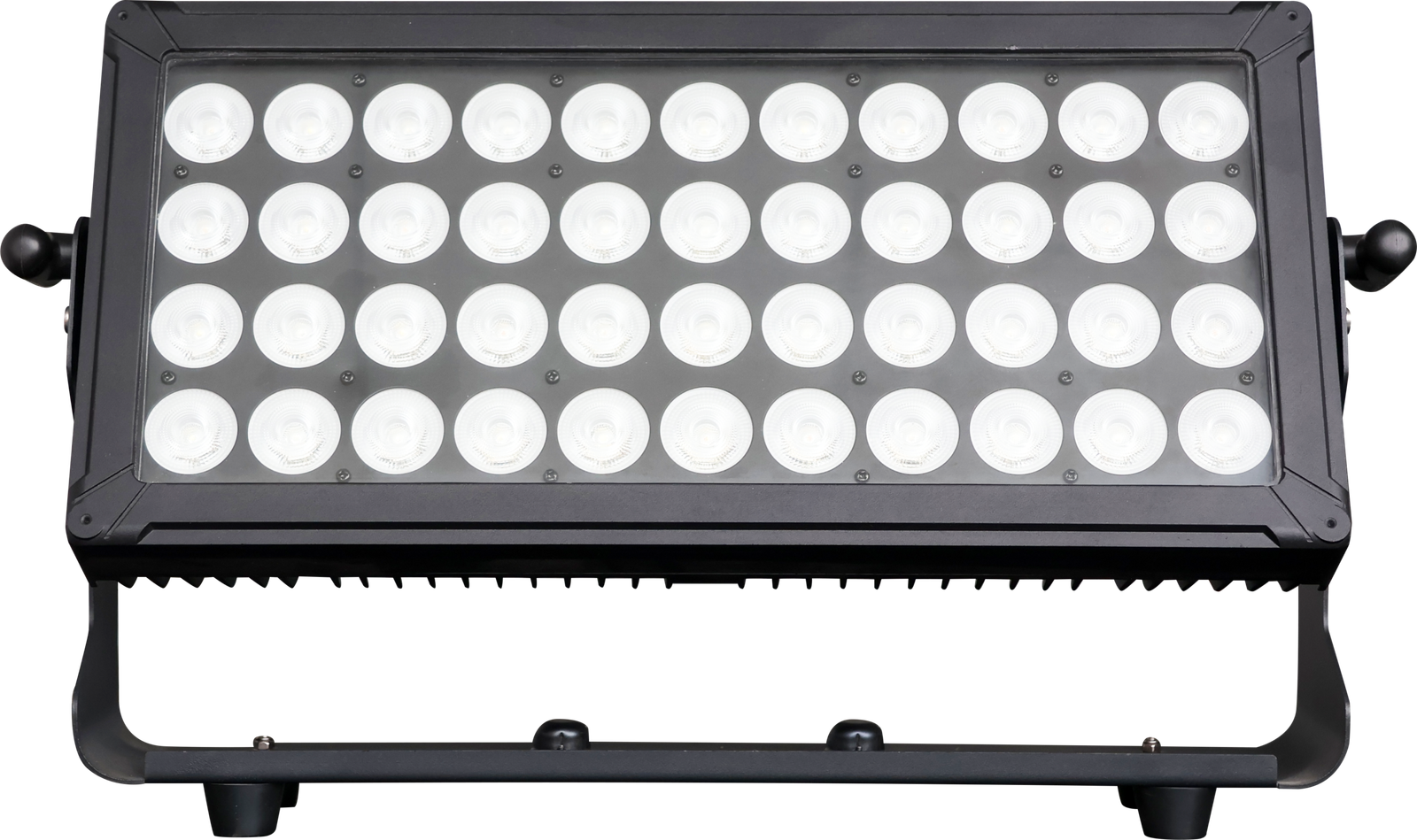

stage lighting panel for stage
44x10w RGBW







Optional Accessories



信号线 1



NAME: 3-PIN XLR Signal Cable
ORDER CODE:3-PIN Signal cable

电源线 1



NAME: PowerCon Cable
ORDER CODE : PowerCon Cable

灯钩jpg 1



NAME: Clamp
ORDER CODE : Bclamp,Mclamp,Sclamp

安全绳

NAME: Black Safety Chain
ORDER CODE : Bchain

omega

NAME: Omega Blacket
ORDER CODE :Lomega,Momega,Somega

flight case

NAME: 2 IN 1 Flight Case
ORDER CODE : 2IN1 FC
