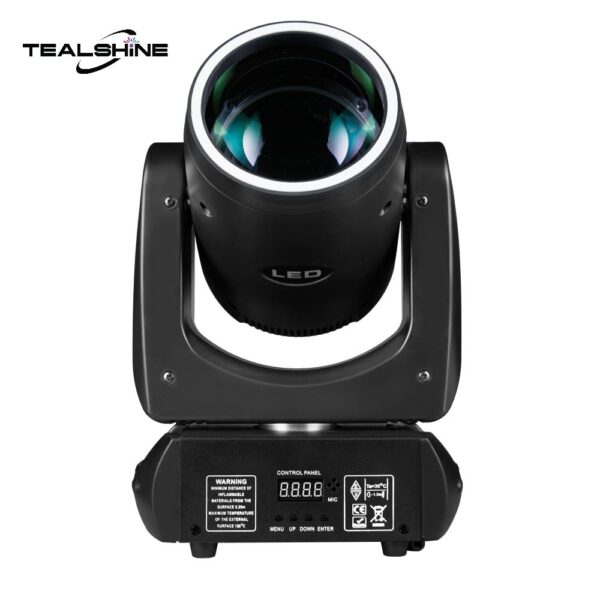

A black IP20 120W Led Moving Head Beam Light featuring a digital control panel, operational buttons, and a warning label on the base. The TEALSHINE logo is displayed in the top left corner. This advanced stage spotlight delivers precise control and dynamic lighting effects for your stage setup.

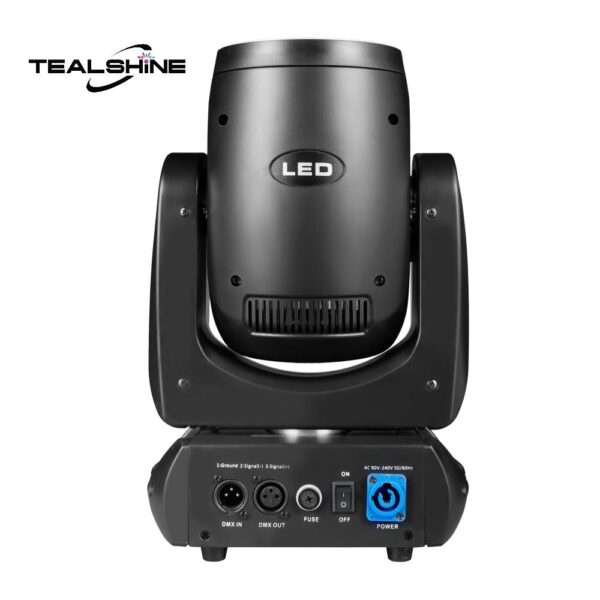

A black IP20 120W Led Moving Head Beam Light with control ports, power switch, and branding visible on the top left, photographed against a white background.
An IP20 120W Led Moving Head Beam Light stage lighting fixture, upright on a base and viewed from the back. The brand name TEALSHINE with a stylized ring is visible in the top left corner.

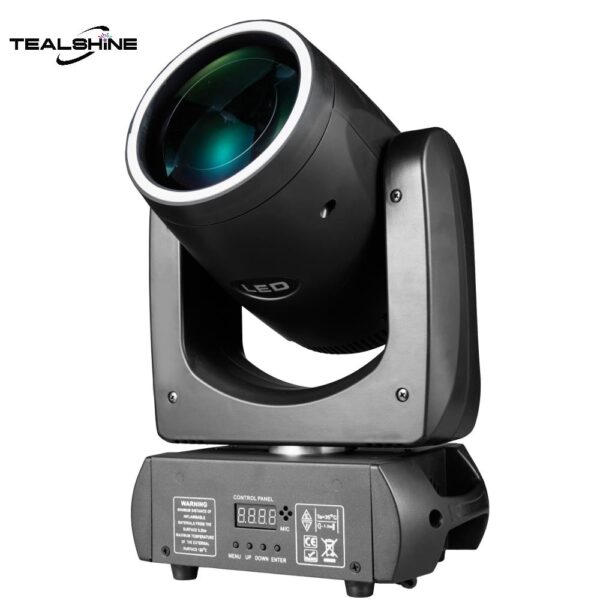

A black IP20 120W Led Moving Head Beam Light with a digital control panel and various labels on its base. The TEALSHINE logo is displayed in the top left corner.
  1. A black IP20 120W Led Moving Head Beam Light featuring a digital control panel, operational buttons, and a warning label on the base. The TEALSHINE logo is displayed in the top left corner. This advanced stage spotlight delivers precise control and dynamic lighting effects for your stage setup.
  2. A black IP20 120W Led Moving Head Beam Light with control ports, power switch, and branding visible on the top left, photographed against a white background.
  3. An IP20 120W Led Moving Head Beam Light stage lighting fixture, upright on a base and viewed from the back. The brand name TEALSHINE with a stylized ring is visible in the top left corner.
  4. A black IP20 120W Led Moving Head Beam Light with a digital control panel and various labels on its base. The TEALSHINE logo is displayed in the top left corner.

IP20 120W Led Moving Head Beam Light

Light Source120W LEDs+24*0.2W RGB SMD LEDs
LED Life Expectancy50,000 hours
Beam Angle3°
Protection RateIP20
Product Dimension230*165*370mm
Net Weight6 kgs (13.2 lbs)

Overview

IP20 120w LED led beam moving head light is an indoor LED effect light, featuring 120W LEDs+24*0.2w RGB SMD LEDs,it is an impressive LED beam light with super light weight design.

This latest stage light is a specialized stage or decorative lighting fixture,featuring 1 color wheel and 1 static gobo wheel,designed to create dynamic visual effects and patterns,often used for backdrops,events,and architectural lighting.Key features include 120w led,24*0.2w RGB ring effect,multiple control modes,energy efficiency,and flexible installation options,making them versatile for various entertainment and decorative purposes.

IP20 Protection rate, is suitable for indoor applications.

Technical & Specification



Model

Model Name: IP20 120W LED BEAM LIGHT WITH RING EFFECT
Model Code:TS-120BP



Light Source

Light Source: 120W LED
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 3°



Control

4 touch button control panel
Display: Display with 4-buttons
Protocols: DMX512,sound activated or auto operation
Control Channels: 15



Other Effects

Outstanding strobe effect with variable speed
Smooth dimming 0-100%
Flicker-free management
Pulse effect
Strobe:1-30Hz
Pure smooth Color Mixing
Different kinds of preset macro effects with variable speed
Dual mounted bracket design
Preset pulse strobe effect with variable speed
Random strobe effect with variable speed
1 Color wheel with 12 colors plus open
1 Static gobo wheel with 15 gobos plus open
3-Facet Prism with adjustable speed and direction
Manual focusing
540°PAN,180°TILT

Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 150W
Power In/Out: IP20 power connector IN/OUT
Data In/Out: IP20 3-pin XLR connector IN/OUT



Housing

Material: Metal+ABS Plastic
Finishing:Matt black
IP Rate: IP20
Net Weight: 6 kgs(13.2 lbs)
Gross Weight:7 kgs (15.4 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -10°C
Protection Rating: IP20



Approvals

CE compliant
RoHS compliant

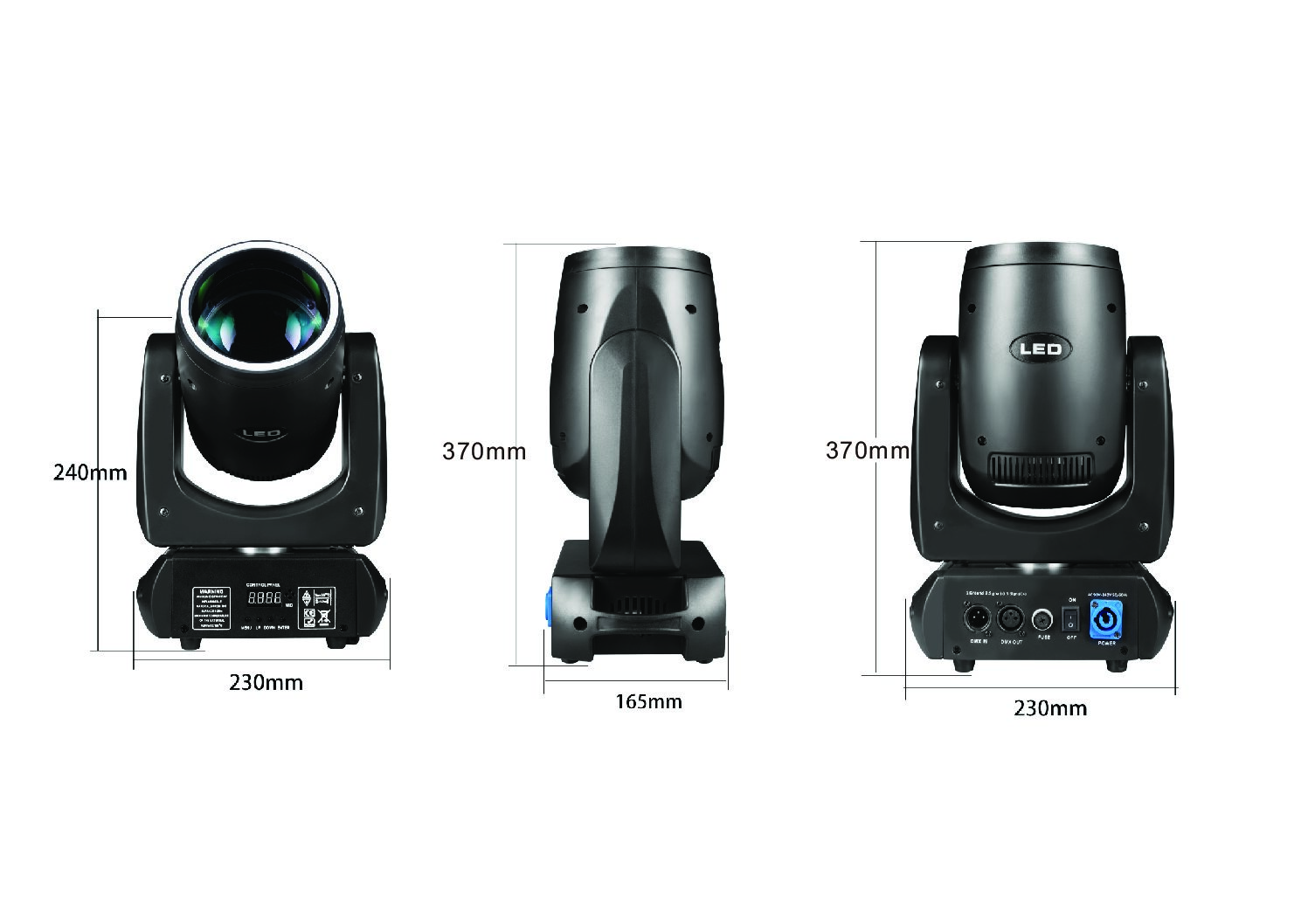

Product drawing for 120w moving head beam light pdf
