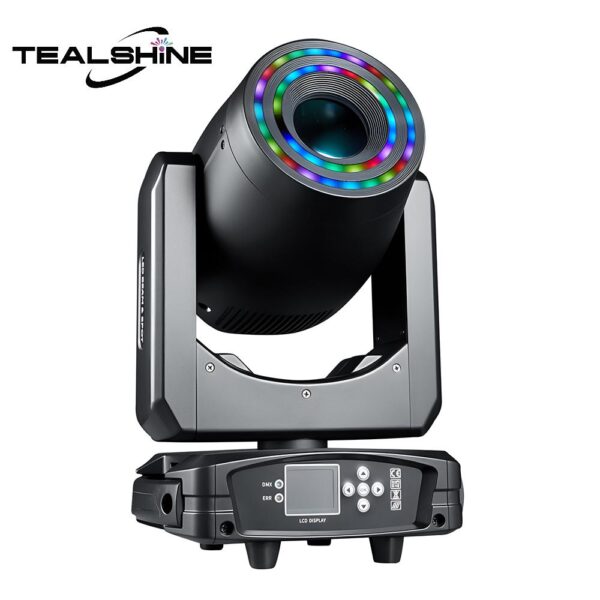

A black IP20 200W Module LED Moving Head Spot Light with a digital display and dual ring effect, positioned against a white background.

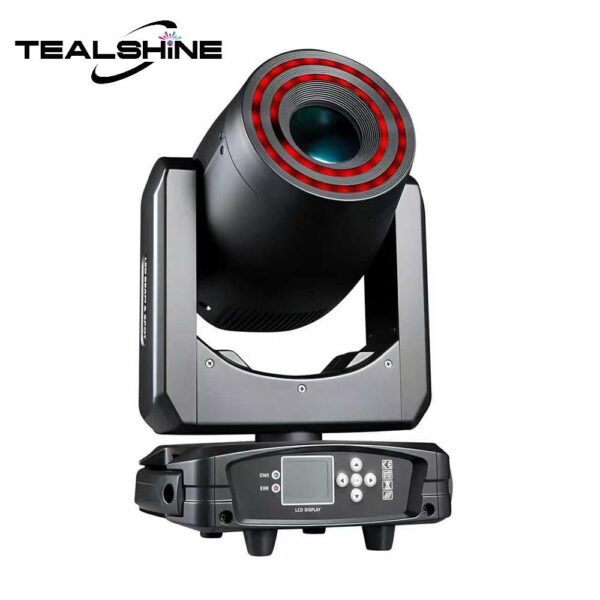

Introducing the IP20 200W Module LED Moving Head Spot Light with Dual Ring Effect—a sleek black stage light featuring a striking red ring around the lens, an intuitive control panel and display at the base, and the TEALSHINE logo in the top left corner. Ideal for those seeking powerful moving head spot lights to create vibrant stage effects.

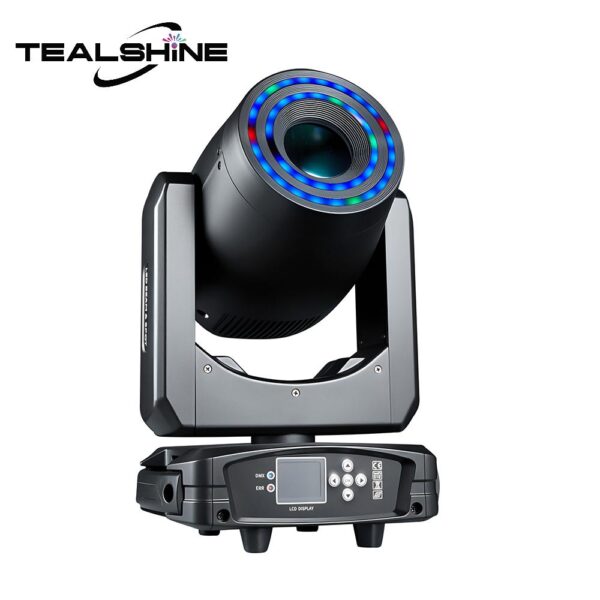

A black IP20 200W Module LED Moving Head Spot Light with Dual Ring Effect, designed in the style of professional moving head spot lights, featuring a digital display and control buttons at the base, as well as a circular LED ring around the lens.

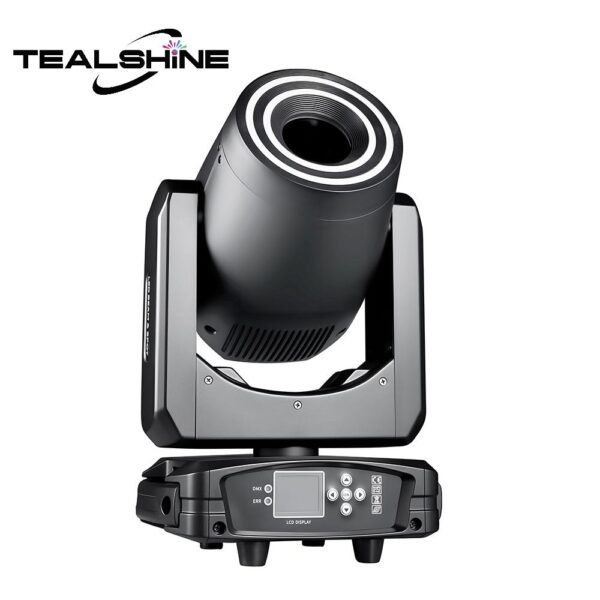

A black IP20 200W Module LED Moving Head Spot Light with Dual Ring Effect featuring a digital display and control buttons on the base, showcasing advanced moving head spot light technology. The Tealshine logo is displayed in the top left corner against a white background.

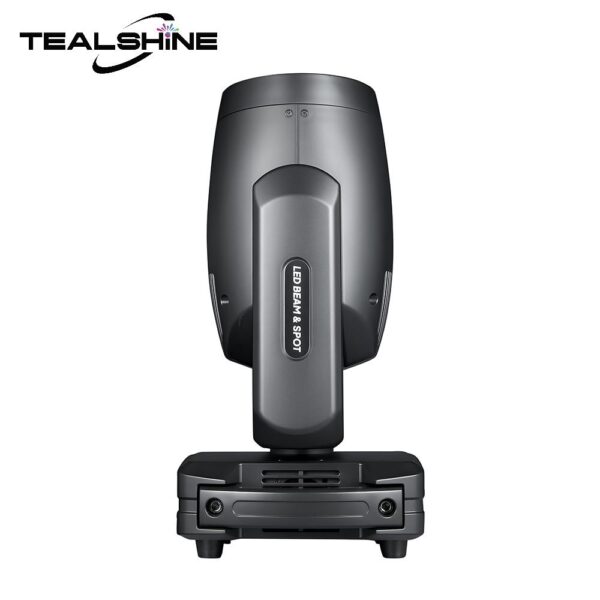

A black IP20 200W Module Led Moving Head Spot Light with Dual Ring Effect is shown from the back against a white background, featuring the TEALSHINE logo in the top left corner and highlighting its advanced moving head spot light capabilities.

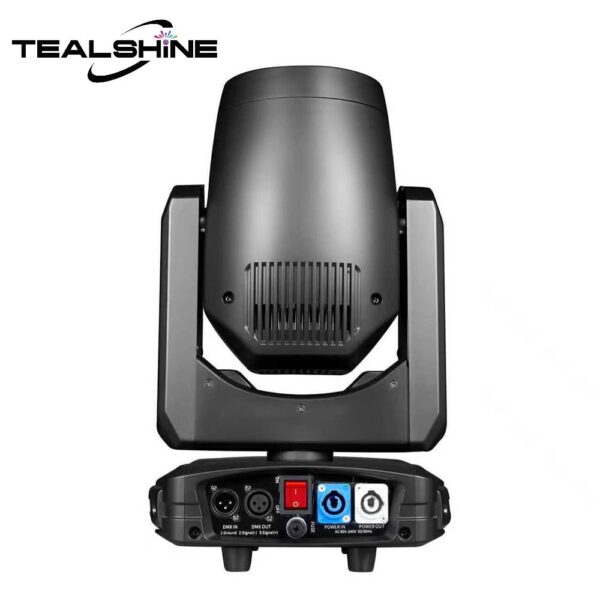

IP20 200W Module Led Moving Head Spot Light with Dual Ring Effect viewed from the back, showing various input and output ports. The TEALSHINE logo appears in the top left corner on a white background.

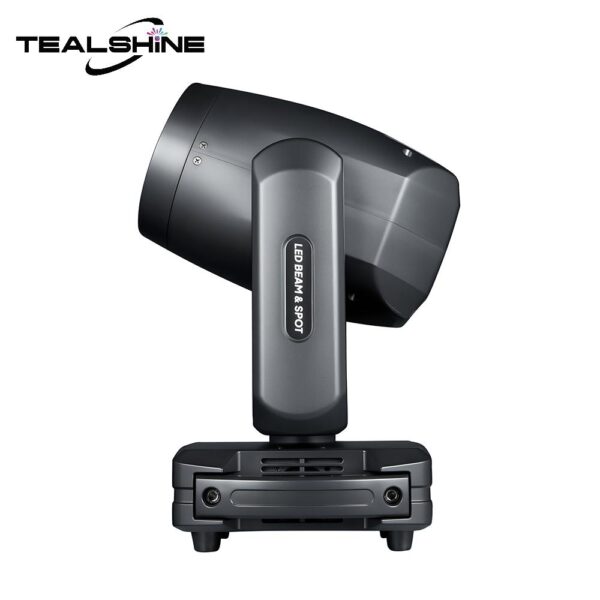

A black IP20 200W Module LED Moving Head Spot Light with Dual Ring Effect by Tealshine, shown from the side with the brand logo in the top left corner on a white background.
  1. A black IP20 200W Module LED Moving Head Spot Light with a digital display and dual ring effect, positioned against a white background.
  2. Introducing the IP20 200W Module LED Moving Head Spot Light with Dual Ring Effect—a sleek black stage light featuring a striking red ring around the lens, an intuitive control panel and display at the base, and the TEALSHINE logo in the top left corner. Ideal for those seeking powerful moving head spot lights to create vibrant stage effects.
  3. A black IP20 200W Module LED Moving Head Spot Light with Dual Ring Effect, designed in the style of professional moving head spot lights, featuring a digital display and control buttons at the base, as well as a circular LED ring around the lens.
  4. A black IP20 200W Module LED Moving Head Spot Light with Dual Ring Effect featuring a digital display and control buttons on the base, showcasing advanced moving head spot light technology. The Tealshine logo is displayed in the top left corner against a white background.
  5. A black IP20 200W Module Led Moving Head Spot Light with Dual Ring Effect is shown from the back against a white background, featuring the TEALSHINE logo in the top left corner and highlighting its advanced moving head spot light capabilities.
  6. IP20 200W Module Led Moving Head Spot Light with Dual Ring Effect viewed from the back, showing various input and output ports. The TEALSHINE logo appears in the top left corner on a white background.
  7. A black IP20 200W Module LED Moving Head Spot Light with Dual Ring Effect by Tealshine, shown from the side with the brand logo in the top left corner on a white background.

IP20 200W Module Mini Led Spot Moving Head Light with Dual Ring Effect

Light Source200W MODULE LEDs+ inner 25*0.3w RGB SMD LEDs+ outer 34*0.3w RGB SMD LEDs
LED Life Expectancy50,000 hours
Beam Angle3°
Protection RateIP20
Product Dimension263.6*206.7*419.9mm
Net Weight9 kgs (19.8 lbs)

Overview

IP20 200w LED module led spot moving head light is an indoor LED effect light, featuring 200W module LEDs and inner 25*0.3w RGB SMD LEDs and outer 34*0.3w RGB SMD LEDs  ring effect,it is an impressive LED beam light with super light weight design.

This latest stage light is a specialized stage or decorative lighting fixture,featuring 1 color wheel,1 static gobo wheel,1 rotation gobo wheel,5-facet circle prism and 6-facet linear prism,designed to create dynamic visual effects and patterns,often used for backdrops,events,and architectural lighting.Key features include 200w module led,multiple control modes,energy efficiency,and flexible installation options,making them versatile for various entertainment and decorative purposes.

IP20 Protection rate, is suitable for indoor applications.

Technical & Specification



Model

Model Name: IP20 200W LED SPOT MOVING HEAD LIGHT WITH DUAL RING EFFECT
Model Code:TS-200SP



Light Source

Light Source: 200W LED+ inner 25*0.3w RGB SMD LEDs+ outer 34*0.3w RGB SMD LEDs
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 13°



Control

4 touch button control panel
Display: 1.8 inch LCD display
Protocols: DMX512,sound activated or auto operation
Control Channels: 16



Other Effects

Outstanding strobe effect with variable speed
Smooth dimming 0-100%
Flicker-free management
Pulse effect
Strobe:1-30Hz
Pure smooth Color Mixing
Different kinds of preset macro effects with variable speed
2500-8000K Linear CTO
Dual mounted bracket design
Preset pulse strobe effect with variable speed
Random strobe effect with variable speed
1 Color wheel with 7 colors plus open
1 Static gobo wheel with 7 gobos plus open
1 Rotation gobo wheel with 6 gobos plus open
5-Facet Circle prism&6-facet linear prism with adjustable speed and direction
Frost filter available
2.5m-30m Electric focus for sharp and clear projections at different distances
540°PAN,270°TILT

Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 250W
Power In/Out: IP20 power connector IN/OUT
Data In/Out: IP20 3-pin XLR connector IN/OUT



Housing

Material: Metal+ABS Plastic
Finishing:Matt black
IP Rate: IP20
Net Weight: 9 kgs(19.8 lbs)
Gross Weight:10.2 kgs (22.5 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -10°C
Protection Rating: IP20



Approvals

CE compliant
RoHS compliant

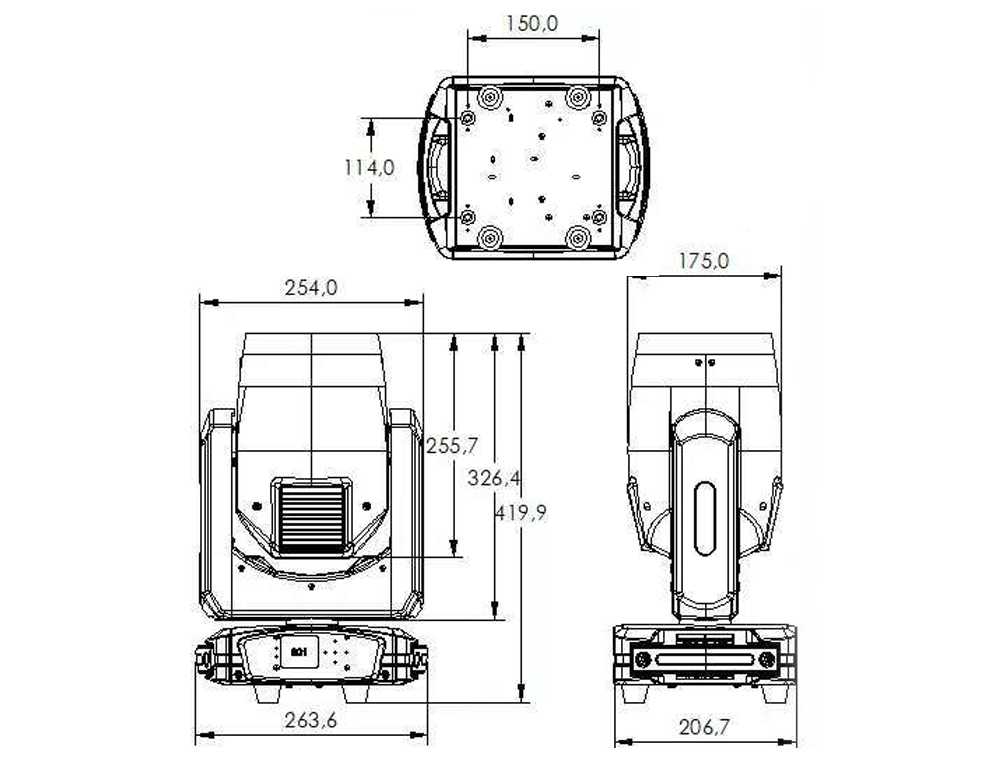

Technical drawing of the IP20 200W Module Led Moving Head Spot Light with Dual Ring Effect, featuring detailed top, front, and side views. All dimensions—including widths, depths, and heights of various components—are indicated in millimeters. This schematic is ideal for understanding the precise structure and measurements typical of this moving head spot light model.
