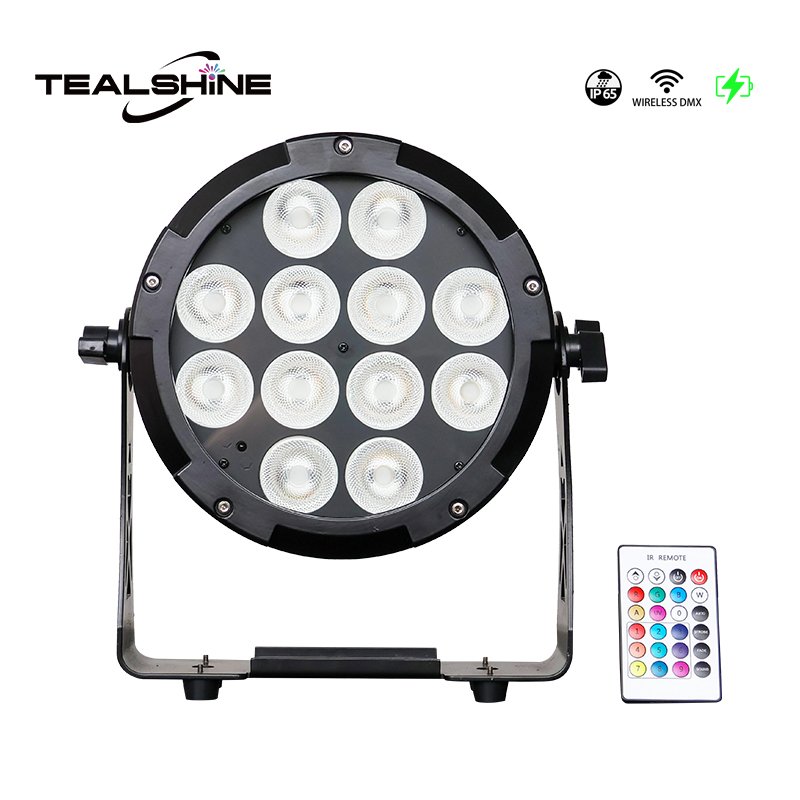

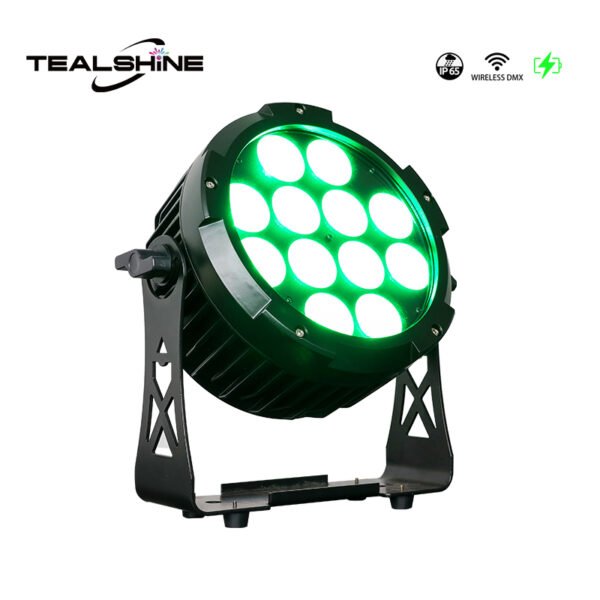

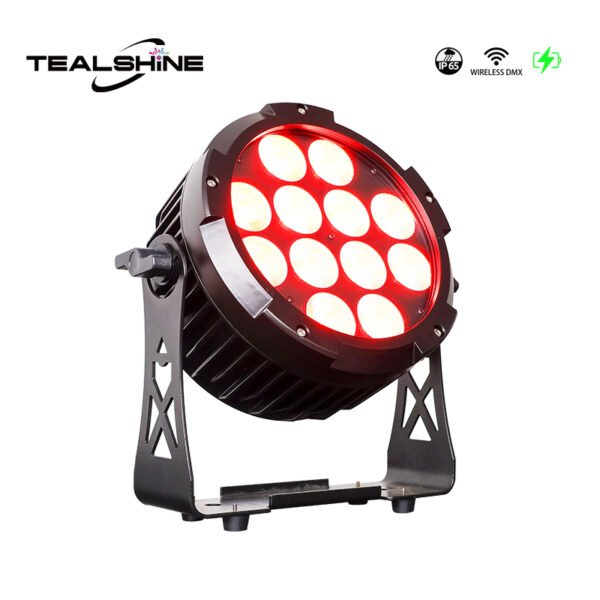

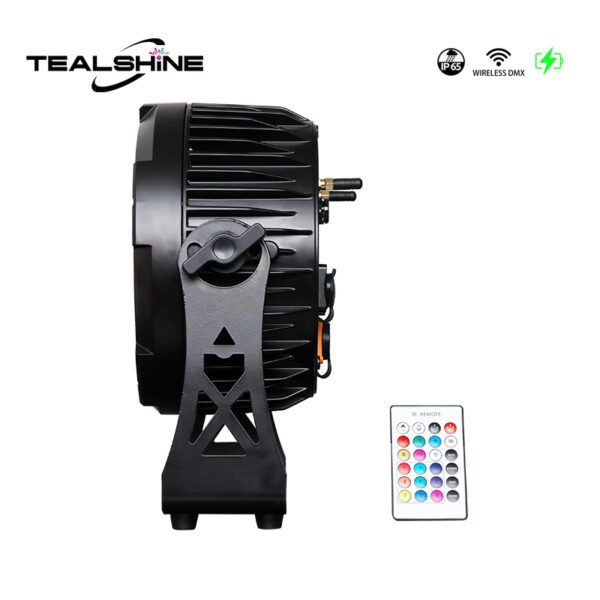

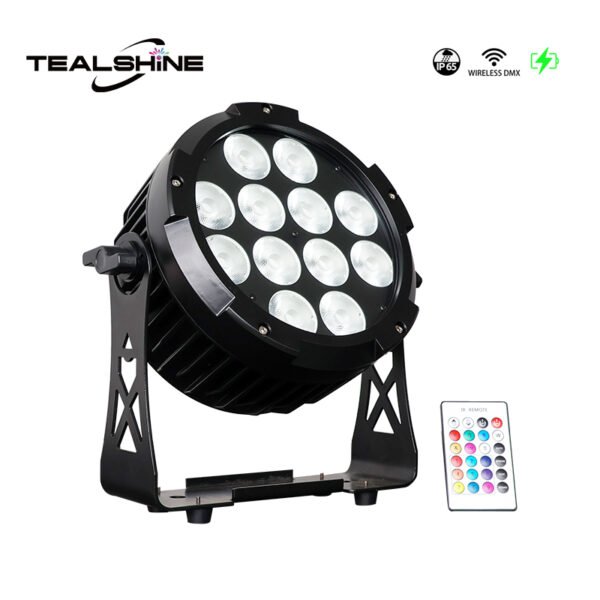

IP65 VERSATILE BATTERY OPERATED PAR CAN UPLIGHTINGS

Model Name: IP65 12X18 BATTERY PAR CAN
Model Code: BP-1218IP

Light Source

Light Source: 12X18W RGBWA+UV LEDs
Life Expectancy: 50,000 hours

Optical System

Beam Angle: 15°/25°/45°/60°

Control

4 touch button control panel
Display: 1.4 inch display
Protocols: DMX512,sound activated or auto operation,IR,Wireless,Wifi App
Control Channels: 6/8/10
Firmware Upgrade: Upgrade via DMX link

Other Effects

Outstanding strobe effect with variable speed
Pure and smooth color mixing
Each color control individually
Different kinds of preset macro effects with variable speed
0~100% linear dimming(4 user selectable dimming curves)
1.2-24K LED PWM frequency
Charging time:5 hours
Full power:2 hours
Auto run:5 hours
Single color running:12 hours
Battery capacity:5200MAH
DMX Channels: 6/8/10
Display: 4-button LED display control panel

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 108W

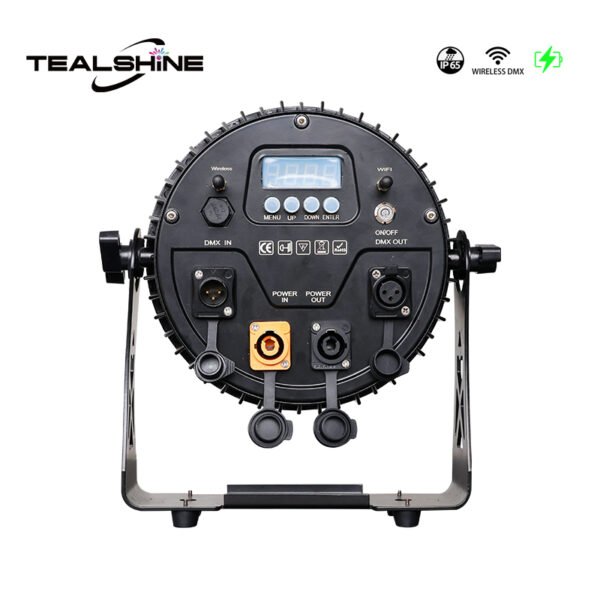

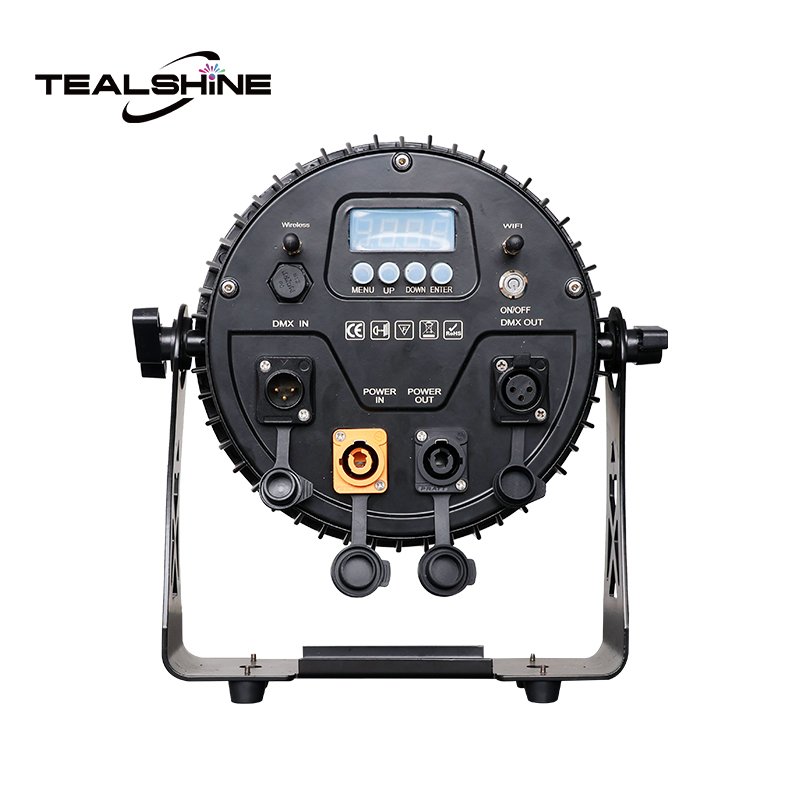

Power In/Out: IP65 power connector IN/OUT
Data In/Out: IP65 3-pin XLR connector IN/OUT

Housing

Material: Aluminum die-cast
Finishing:Matt black
IP Rate: IP65
Net Weight: 4.95 kgs(10.9 lbs)
Gross Weight: 6.45 kgs (14.2 lbs)

Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management

Work Environment

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -10°C
Protection Rating: IP65

Approvals

CE compliant
RoHS compliant

NAME: 3-PIN XLR Signal Cable
ORDER CODE:3-PIN Signal cable

NAME: PowerCon Cable
ORDER CODE : PowerCon Cable

NAME: Clamp
ORDER CODE : Bclamp,Mclamp,Sclamp

NAME: Black Safety Chain
ORDER CODE : Bchain

NAME: Omega Blacket
ORDER CODE :Lomega,Momega,Somega

NAME: 2 IN 1 FLIGHT CASE
ORDER CODE : 2IN1 FC
