IP65 EYE 380 RGBLAC STAGE LIGHTING

Light Source380W RGBLAC LED
LED Life Expectancy50,000 hours
Beam Angle26°
Protection RateIP65
Product Dimension228.8x217x288mm
Net Weight5.8 kg (12.8 lbs)



Edit Content
15 scaled

Overview

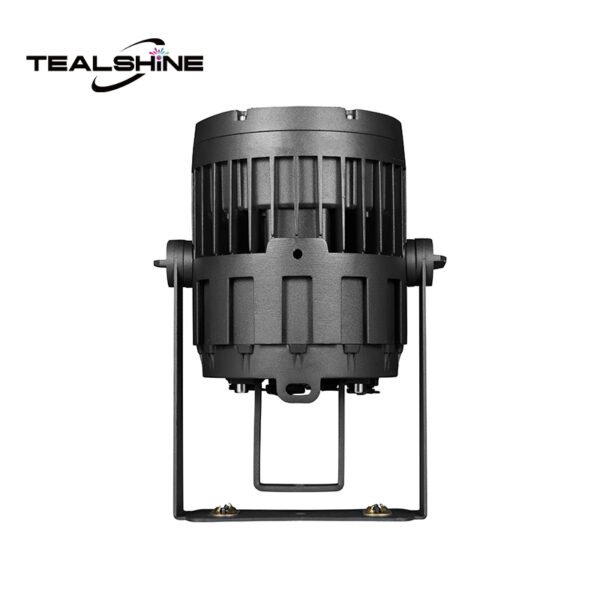

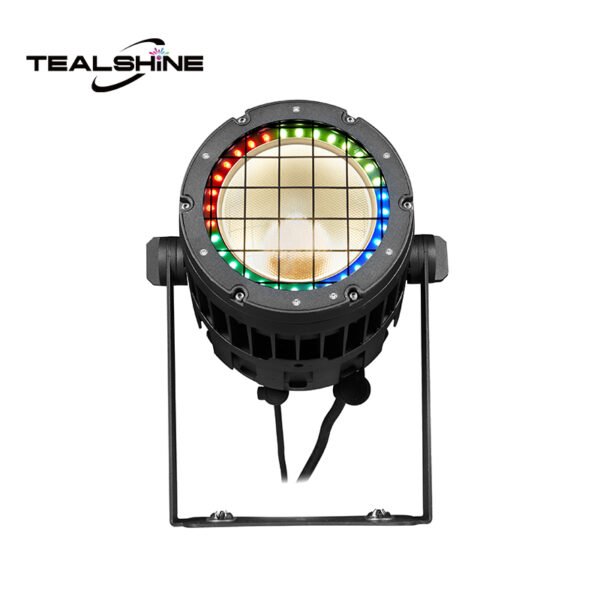

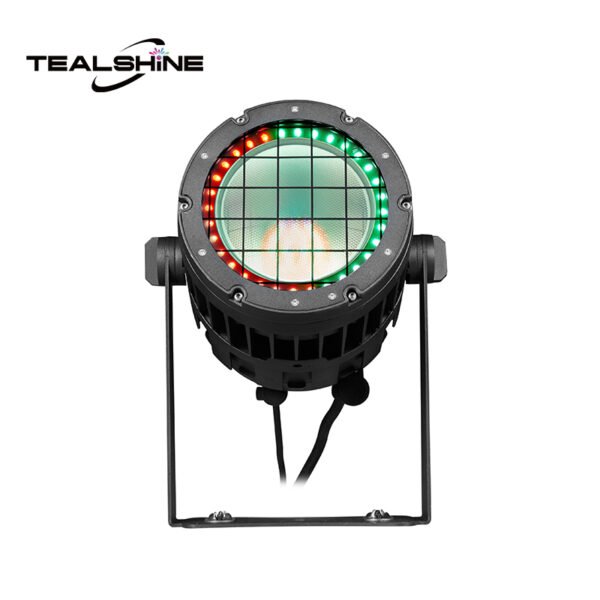

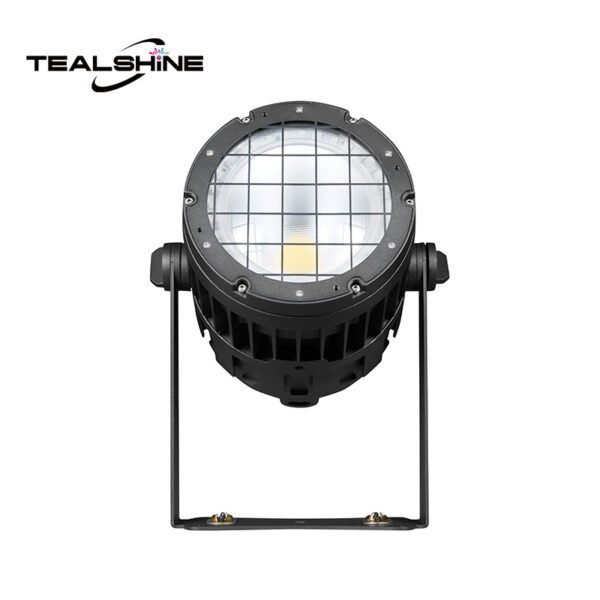

IP65 COB Eye 380 is an outdoor LED par light with halo effect, featuring 380-Watt RGBLAC LEDs and 30×0.2 RGB strip effect, it is innovative mini par with light weight design.

The equidistant LED design ensures uniform output and 26° angles could meet wash beam application, covering a larger area with superior color mixing and spread wash.

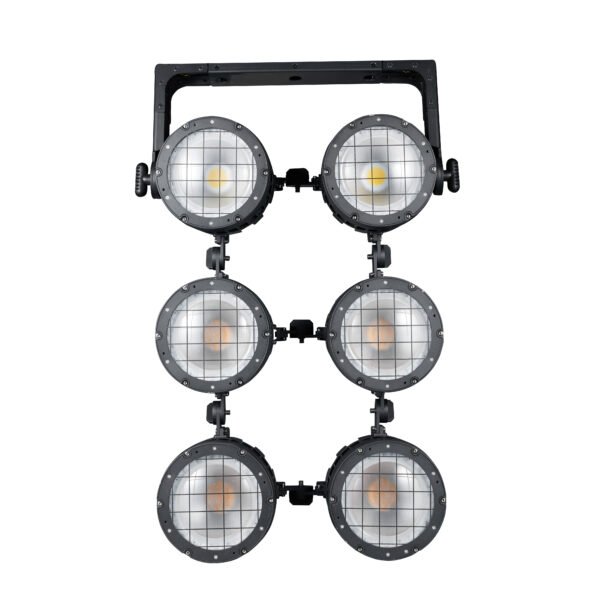

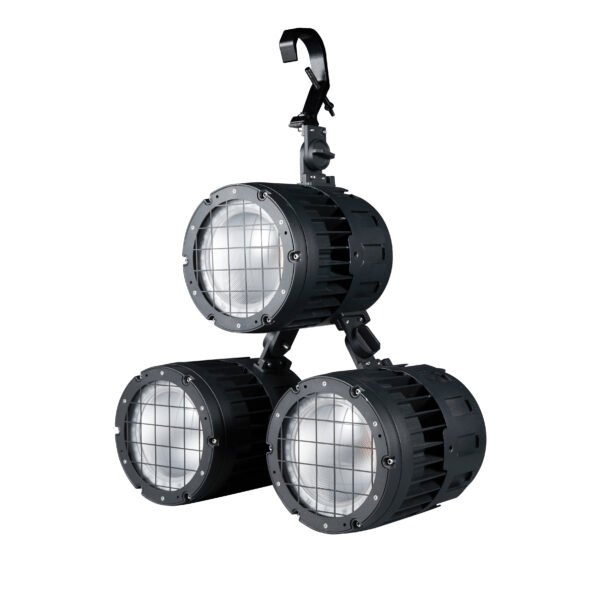

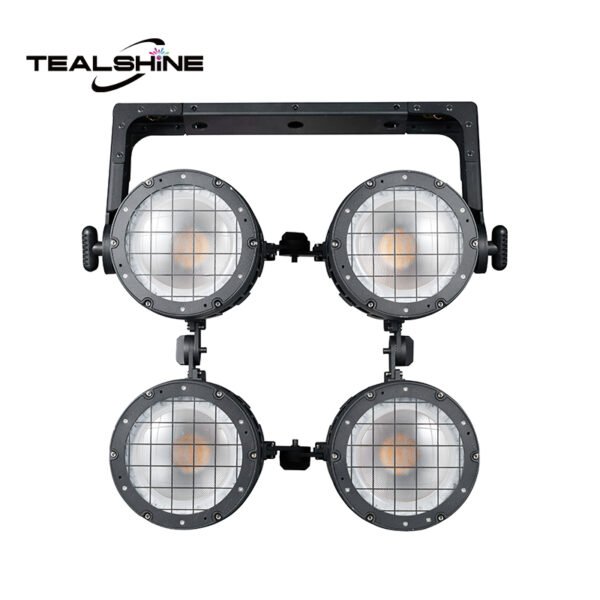

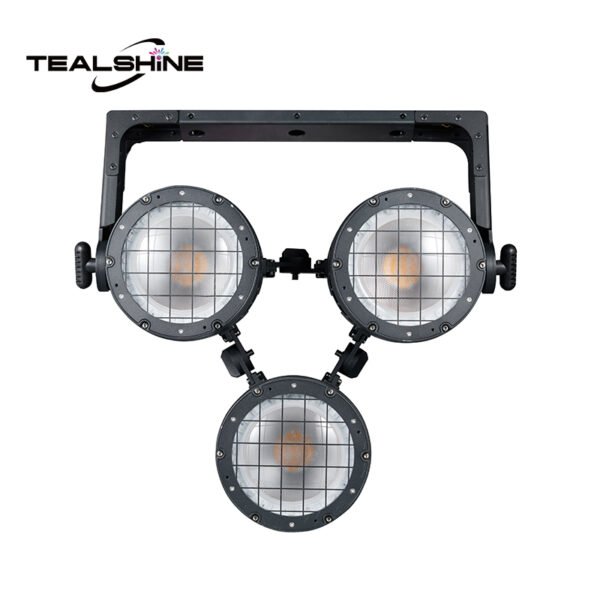

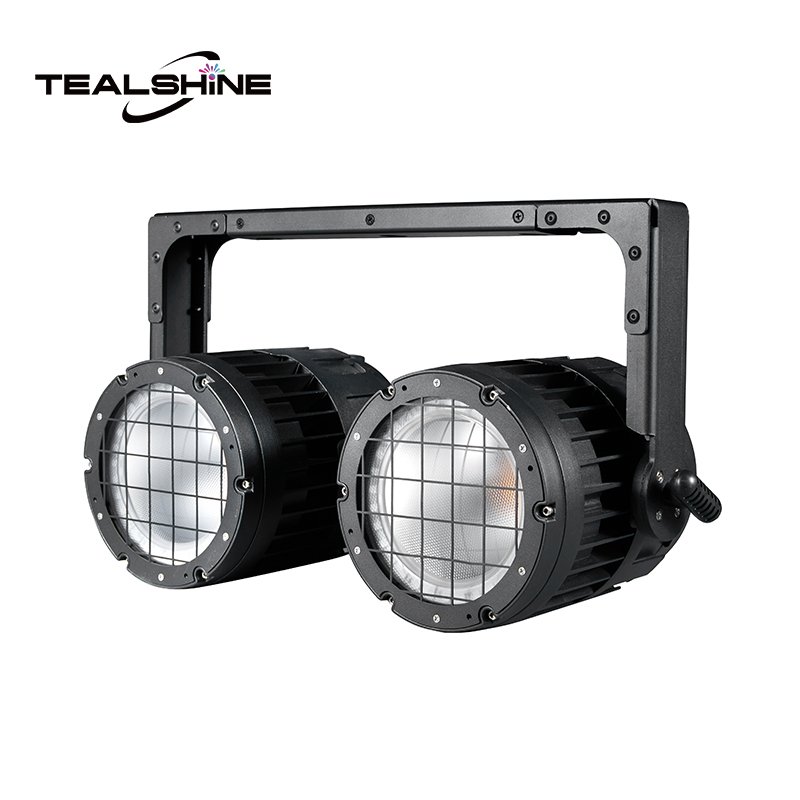

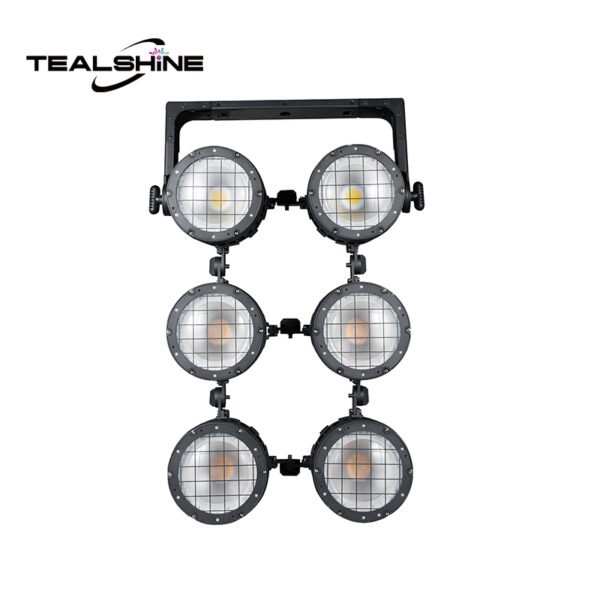

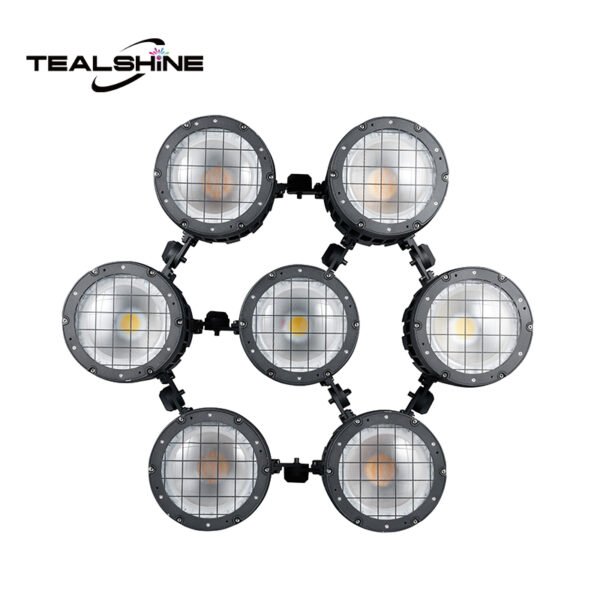

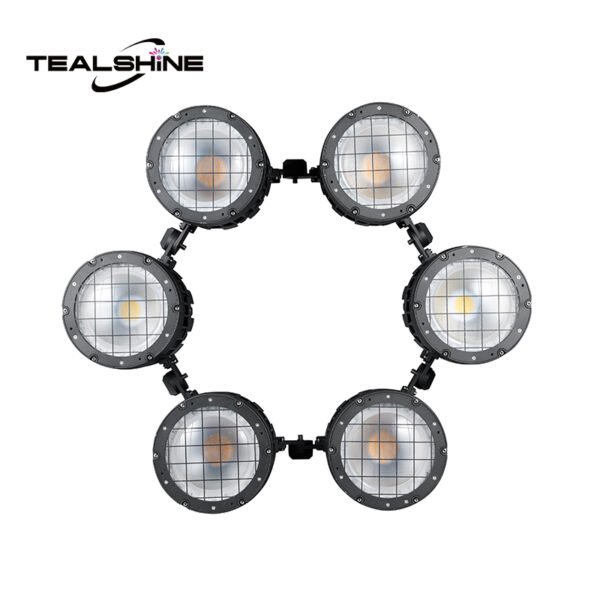

IP65  Eye 380 makes installation faster and easier, thanks to the splicing surfaces,use it as a single-cell,2-or 4-cell  par can or connect even more fixtures together for a versatile effects panels that is perfect for eye-candy looks.

IP65 Protection rate, the exterior par stage light, is suitable for indoor and outdoor stage applications.



Technical & Specification



Model

Model Name: IP65 COB EYE 380
Model Code: PC-380IP



Light Source

Light Source: 380 RGBLAC LED,30×0.2w RGB SMD LEDs
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 26°



Control

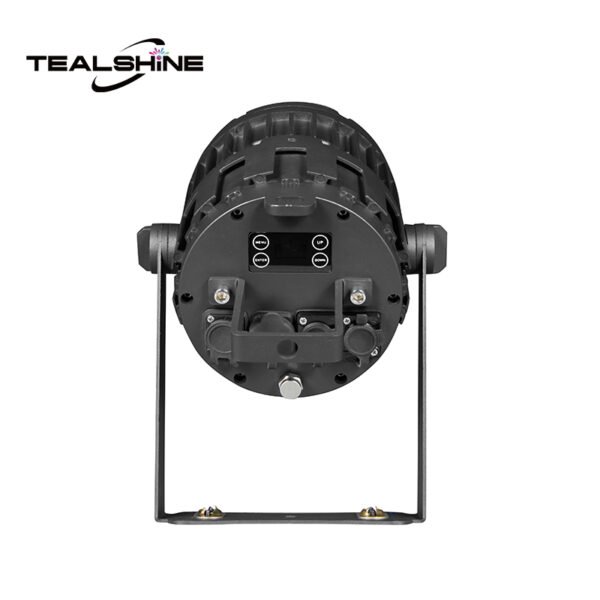

4 touch button control panel
Display: 1.4inch display
Protocols: DMX512
Control Channels: 17
Firmware Upgrade: Upgrade via DMX link



Other Effects

Outstanding strobe effect with variable speed
Smooth dimming 0-100% (4 user selectable dimming curves)
Flicker-free management
Strobe:1-30Hz
Pure smooth color mixing
Color temperature linear up and down in 1800k-10000k





Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 500W
Power In/Out: Waterproof power connector IN/OUT
Data In/Out: Waterproof 3-pin waterproof XLR



Housing

Material: Aluminum die-cast
Finishing:Matt black
IP Rate: 65
Net Weight: 5.8 kgs(12.8lbs)
Gross Weight: 6.8 kgs (15 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Protection Rating: IP65



Approvals

CE compliant
RoHS compliant



单眼拼接三视图 pdf











Optional Accessories



信号线 1

NAME: 3-PIN XLR Signal Cable
ORDER CODE:3-PIN Signal cable

电源线 1

NAME: PowerCon Cable
ORDER CODE : PowerCon Cable

灯钩jpg 1

NAME: Clamp
ORDER CODE : Bclamp,Mclamp,Sclamp

安全绳

NAME: Black Safety Chain
ORDER CODE : Bchain

omega

NAME: Omega Blacket
ORDER CODE :Lomega,Momega,Somega

flight case 1

NAME: 2 IN 1 Flight Case
ORDER CODE : 2IN1 FC
