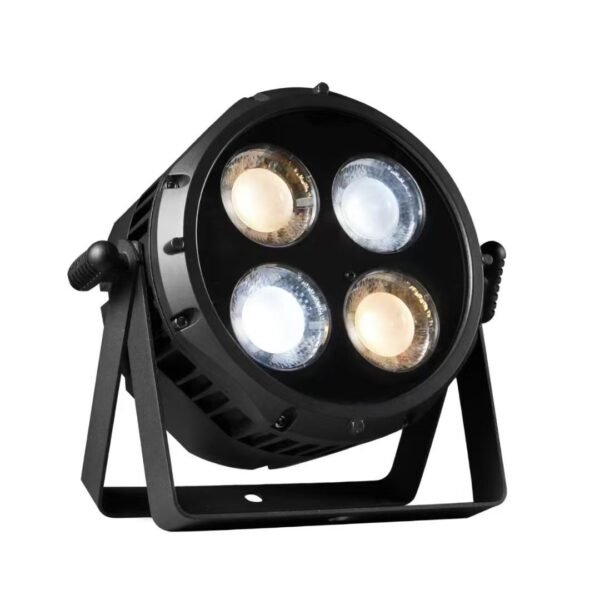

IP65 4x50W Cob Par Can Light
IP65 4x50W Cob Par Can Light
IP65 4x50W Cob Par Can Light
  1. IP65 4x50W Cob Par Can Light
  2. IP65 4x50W Cob Par Can Light
  3. IP65 4x50W Cob Par Can Light

IP65 4x50W Cob Par Can Light

Light Source 4x50w CW WW LEDs
LED Life Expectancy 50,000 hours
Beam Angle 26°
Protection Rate IP65
Product Dimension 304x125x242mm
Net Weight  4.4 kgs (9.7 lbs)



Overview

IP65 4x50W Backlight is an outdoor LED  par can stage lights, featuring 4x50W CW WW LEDs,it is an impressive LED par can with super light weight design.

This powerful par can light is a specialized stage or decorative lighting fixture feacturing 4 LEDs individually controlled, designed to create dynamic visual effects and patterns,often used for clubs,events,and architectural lighting.Key features include full CW WW color mixing,multiple control modes,impressive fade-color setting,and flexible installation options,making them versatile for various entertainment and decorative purposes.

IP65 Protection rate, is suitable for indoor&outdoor stage lighting applications.

Technical & Specification



Model

Model Name: IP65 4X50 PAR CAN
Model Code: PC-450IP



Light Source

Light Source: 4x50w  COB CW WW LEDs
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 26°



Control

4 touch button control panel
Display: 1.8inch display
Protocols: DMX512,sound activated or auto operation
Control Channels: 8/18
Firmware Upgrade: Upgrade via DMX link



Other Effects

Outstanding strobe effect with variable speed
Flicker-free management
Smooth Dimmer: 0~100%(4 user selectable dimming curves)
Pulse effect
Strobe:1-30Hz
Each Pixel Control
Pure smooth Color Mixing
Color temperature linear up and down in 1800K-10000K
Different kinds of preset macro effects with variable speed
Impressive cross-fade effect
Outstanding strobe effect with variable speed
900-25K LED PWM frequency
DMX recorder and manual memory function







 Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 220W
Power In/Out: IP65 power connector IN/OUT
Data In/Out: IP65 3-pin XLR connector IN/OUT



Housing

Material: Aluminum die-cast
Finishing:Matt black
IP Rate: IP65
Net Weight: 4.4 kgs(9.7 lbs)
Gross Weight: 5.4 kgs (11.9 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -10°C
Protection Rating: IP65



Approvals

CE compliant
RoHS compliant



PC 450IPcad2pdf pdf



PC 450IP LUX CHART
