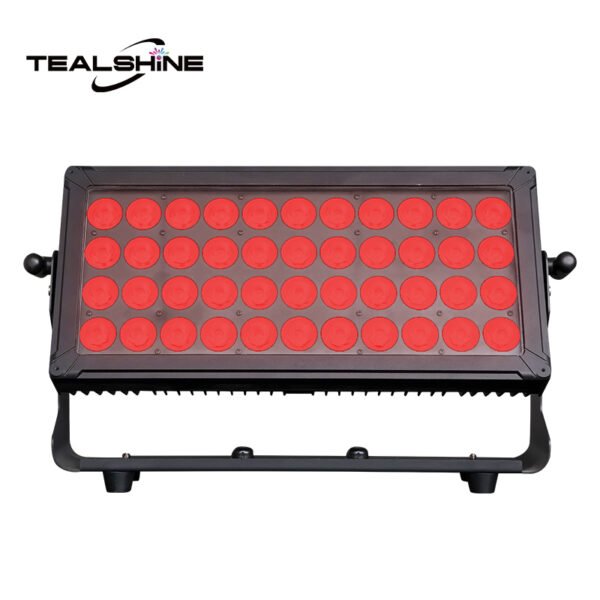

Floor light washer will be used as backlight

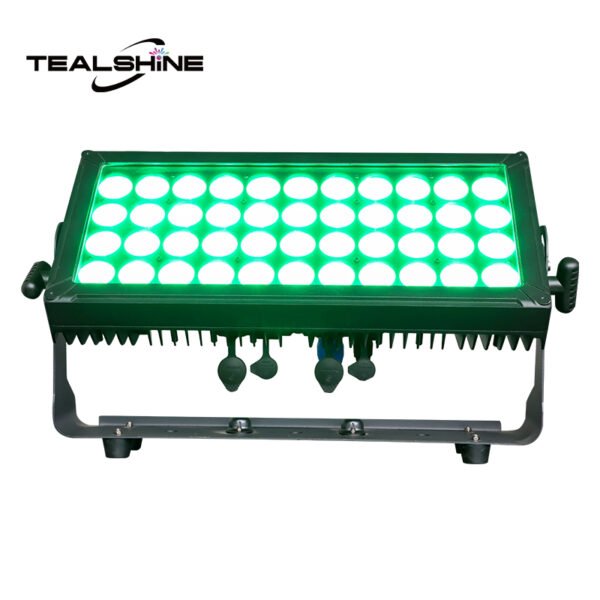

It is used as floor backlight

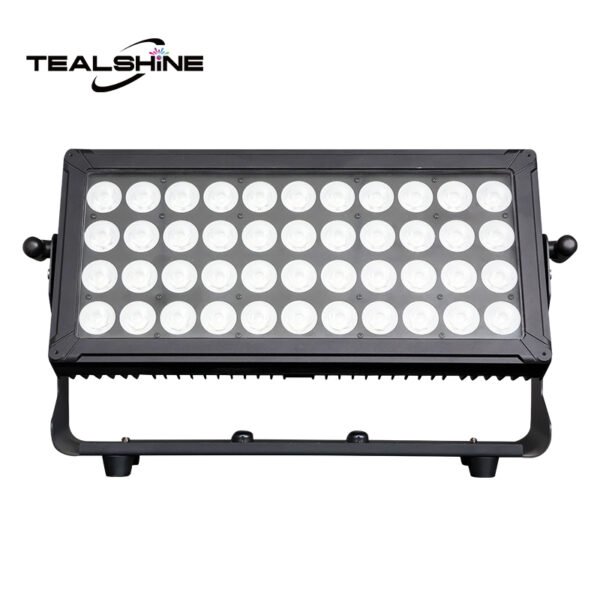

floor lighting for stage

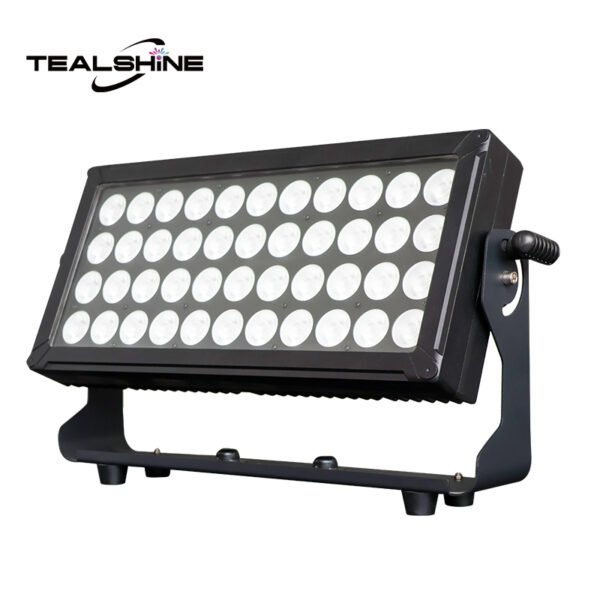

floor stage lighting led

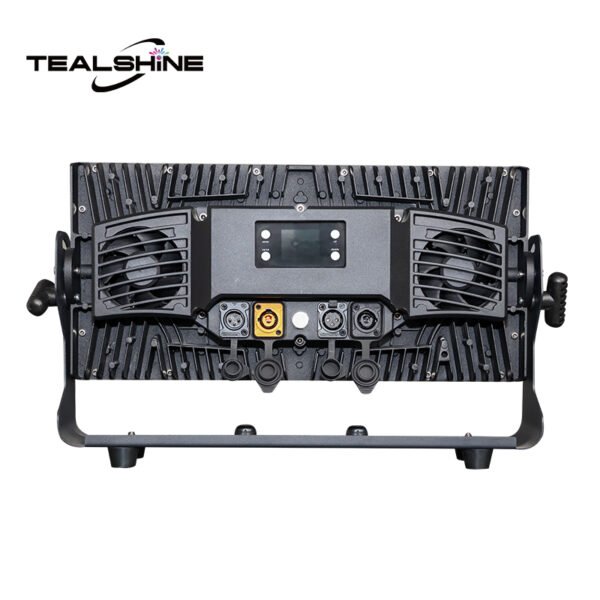

floor lighting for event
  1. Floor light washer will be used as backlight
  2. It is used as floor backlight
  3. floor lighting for stage
  4. floor stage lighting led
  5. floor lighting for event

IP65 44X10W Panel Light

Light Source 44x10W RGBWA+UV LED
LED Life Expectancy 50,000 hours
Beam Angle 26°
Protection Rate IP65
Product Dimension 509x117x264mm
Net Weight 7.9 kg (17.4lbs)



Overview

IP65 44X10W Panel light is an outdoor LED floor light, featuring 10-Watt  RGBWA+UV LEDs,it is an innovative wash light with light weight design.

The equidistant LED design ensures uniform output and 26° angles could meet wash beam application, covering a larger area with superior color mixing and spread wash.This powerful panel light is a compact yet powerful outdoor floodlight designed for diverse applications.Boasting an IP65 certification,the fixture feactures a rugged,high-quality construction that effectively prevents dust and water ingress.Its IP-rated connections make it an ideal solution for illuminating large-scale outdoor events with vibrant,high-intensity colors.The unit offers flexible installation options,including floor-standing operation and versatile mounting in any orientation via the included omega brackets.Additionally,with full pixel control and integrated strobe functionality,the 40x15w panel stage light serves as a versatile effects fixture and audience blnder.

IP65 Protection rate, is suitable for indoor and outdoor stage lighting applications.

Technical & Specification



Model

Model Name: IP65 44X10W RGBWA+UV Panel Light
Model Code: FL-4410IP



Light Source

Light Source: 44x10W RGBWA+UV LED
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 26°



Control

4 touch button control panel
Display: OLED display
Protocols: DMX512,sound activated or auto operation
Control Channels: 6/10
Firmware Upgrade: Upgrade via DMX link



Other Effects

Outstanding strobe effect with variable speed
Smooth dimming 0-100% (4 user selectable dimming curves)
Flicker-free management
Pulse effect
Strobe:1-30Hz
Full pixel control
Pure color mixing
Electric frost with variable speed adjustment
Barndoor(Optional accessory)
Dual mounting brackets design
Color temperature linear up and down in 1800K-10000K
Different kinds of preset macro effects with variable speed
Impressive cross-fade effect
Outstanding strobe effect with variable speed
900-25K LED PWM frequency
DMX recorder and manual memory function

 Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 440W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin waterproof XLR



Housing

Material: Aluminum die-cast
Finishing:Matt black
IP Rate: 65
Net Weight: 7.9 kgs(17.4 lbs)
Gross Weight: 9.9 kgs (21.8 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Protection Rating: IP65



Approvals

CE compliant
RoHS compliant

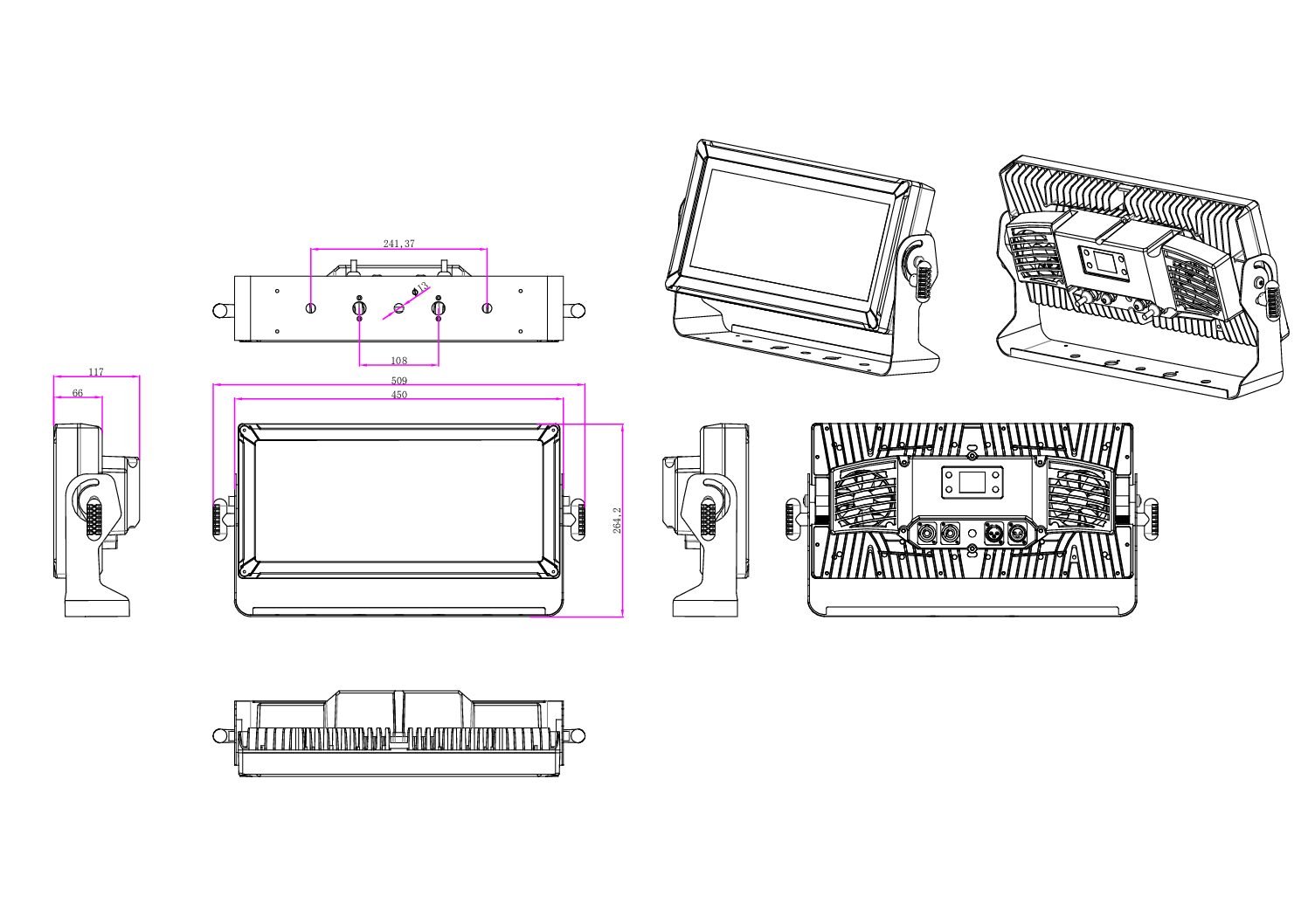

星脉投光灯尺寸 pdf
