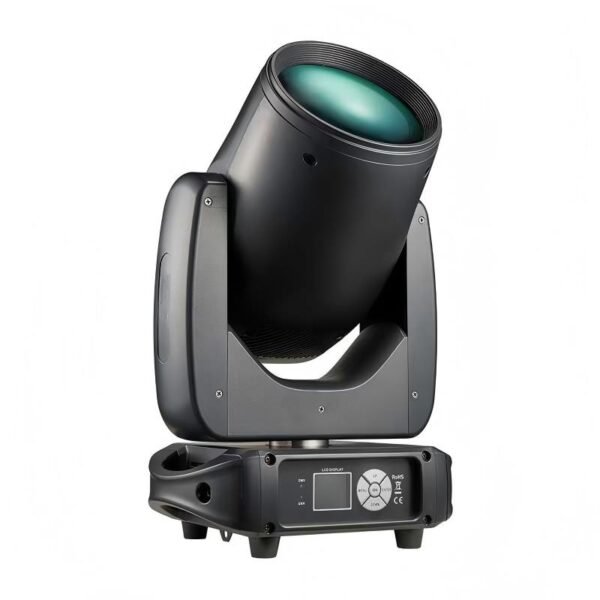

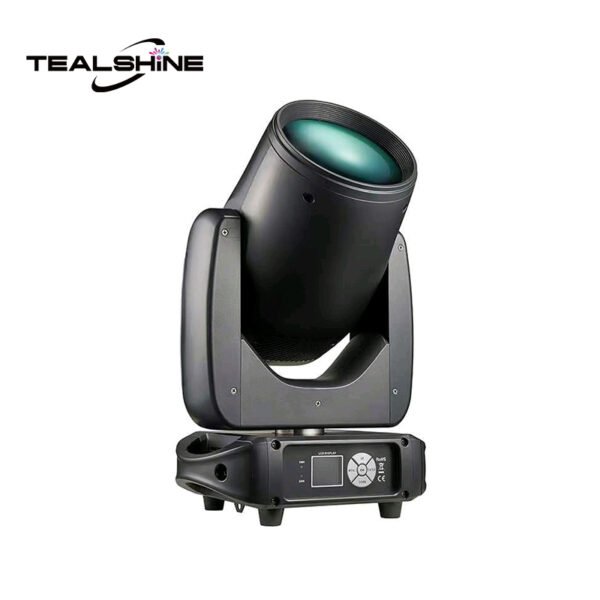

IP20 200W MODULE LED BEAM

IP20 200W MODULE LED BEAM

Light Source200W MODULE LEDs
LED Life Expectancy50,000 hours
Beam Angle3°
Protection RateIP20
Product Dimension285*210*480mm
Net Weight 11kgs (24.3 lbs)



Edit Content

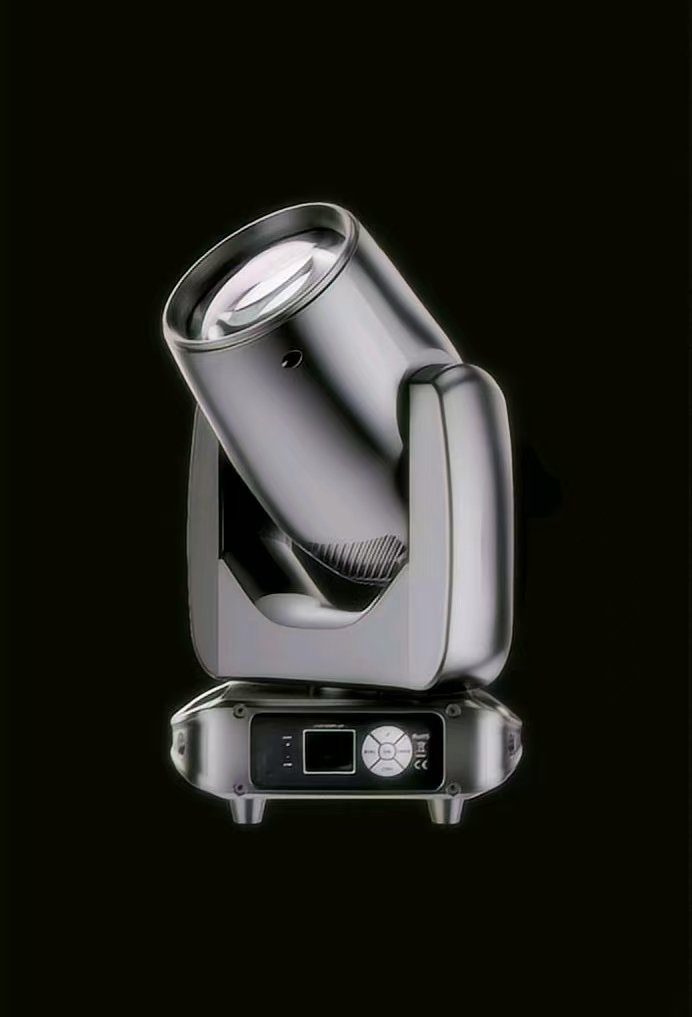

1

Overview

IP20 200w LED module led beam moving head light is an indoor LED effect light, featuring 200W module LEDs,it is an impressive LED beam light with super light weight design.

This latest stage light is a specialized stage or decorative lighting fixture,featuring 1 color wheel and 1 static gobo wheel&1 rainbow wheel,designed to create dynamic visual effects and patterns,often used for backdrops,events,and architectural lighting.Key features include 200w module led,multiple control modes,energy efficiency,and flexible installation options,making them versatile for various entertainment and decorative purposes.

IP20 Protection rate, is suitable for indoor applications.



Technical & Specification



Model

Model Name: IP20 200W MODULE LED BEAM
Model Code:TS-200B



Light Source

Light Source: 200W Module LED
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 3°



Control

4 touch button control panel
Display: 1.8 inch LCD display
Protocols: DMX512,sound activated or auto operation
Control Channels: 14



Other Effects

Outstanding strobe effect with variable speed
Smooth dimming 0-100%
Flicker-free management
Pulse effect
Strobe:1-30Hz
Pure smooth Color Mixing
Different kinds of preset macro effects with variable speed
2500-8000K Linear CTO
Dual mounted bracket design
Preset pulse strobe effect with variable speed
Random strobe effect with variable speed
1 Color wheel with 13 colors plus open
1 Static gobo wheel with 14 gobos plus open
1 Rainbow wheel with 6 colors
24-Facet Prism with adjustable speed and direction
Frost filter available
2.5m-30m Electric focus for sharp and clear projections at different distances
540°PAN,270°TILT







Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 250W
Power In/Out: IP20 power connector IN/OUT
Data In/Out: IP20 3-pin XLR connector IN/OUT



Housing

Material: Metal+ABS Plastic
Finishing:Matt black
IP Rate: IP20
Net Weight: 11 kgs(24.3 lbs)
Gross Weight:13.6 kgs (30 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -10°C
Protection Rating: IP20



Approvals

CE compliant
RoHS compliant

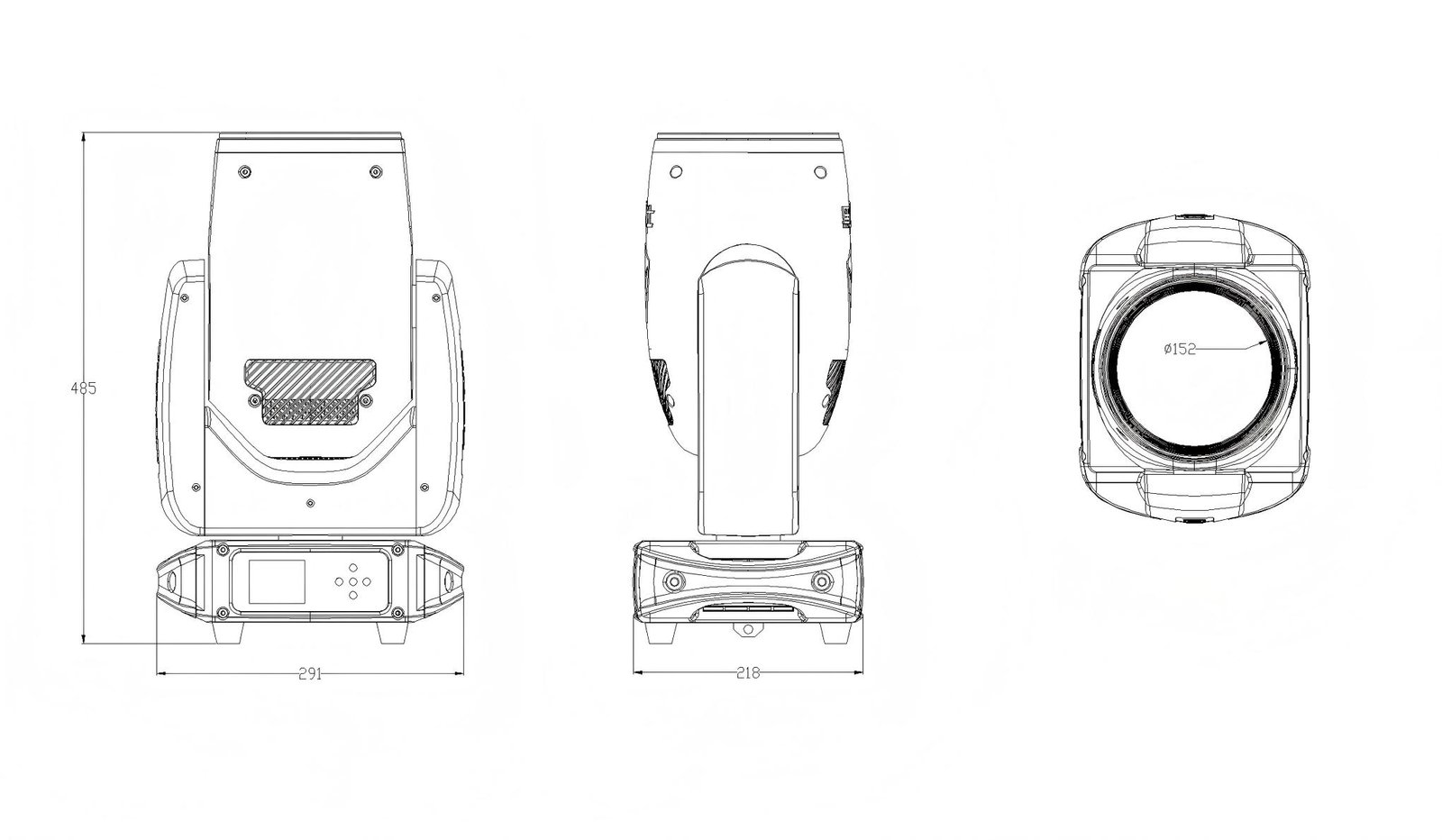

11

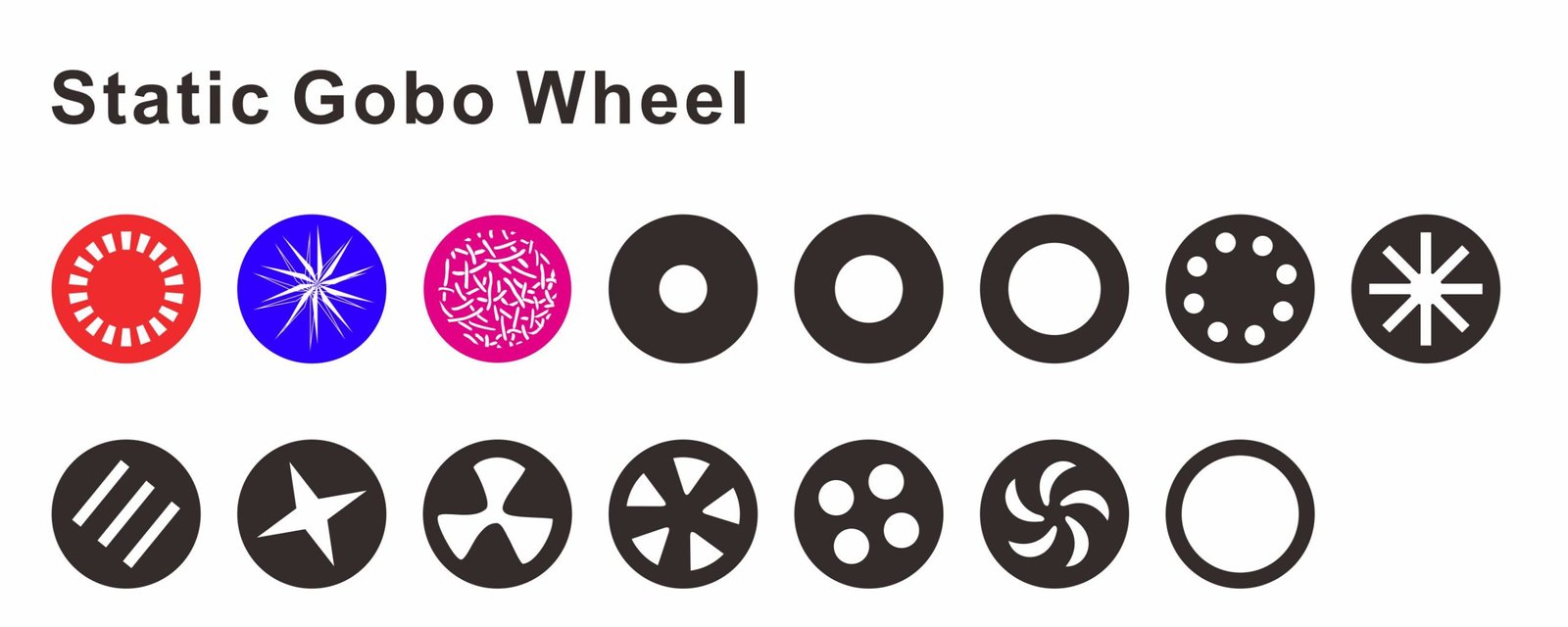

Static gobo wheel scaled

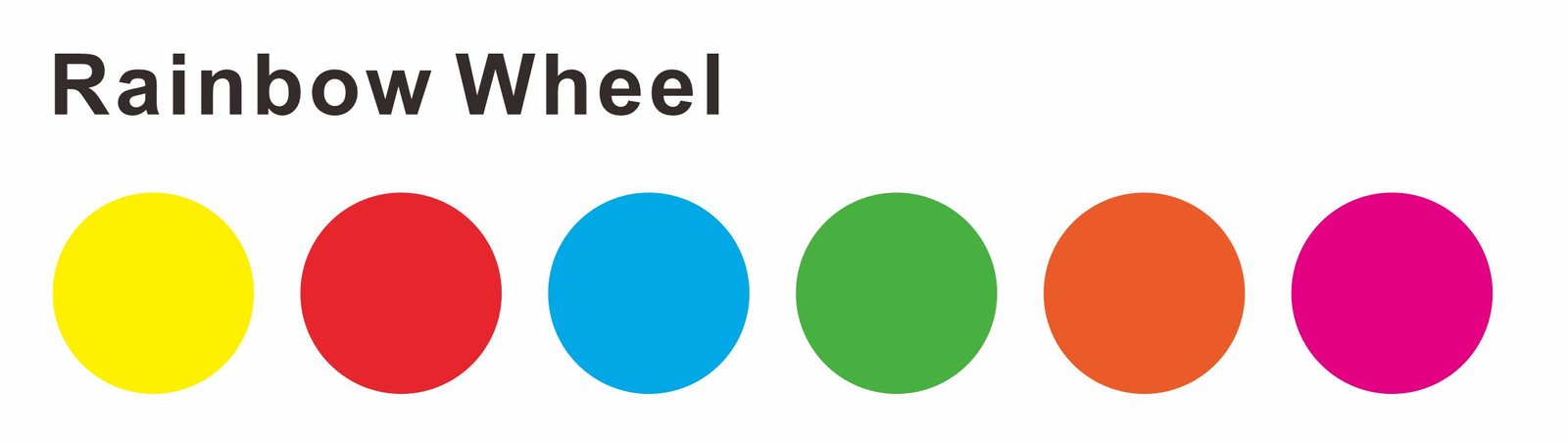

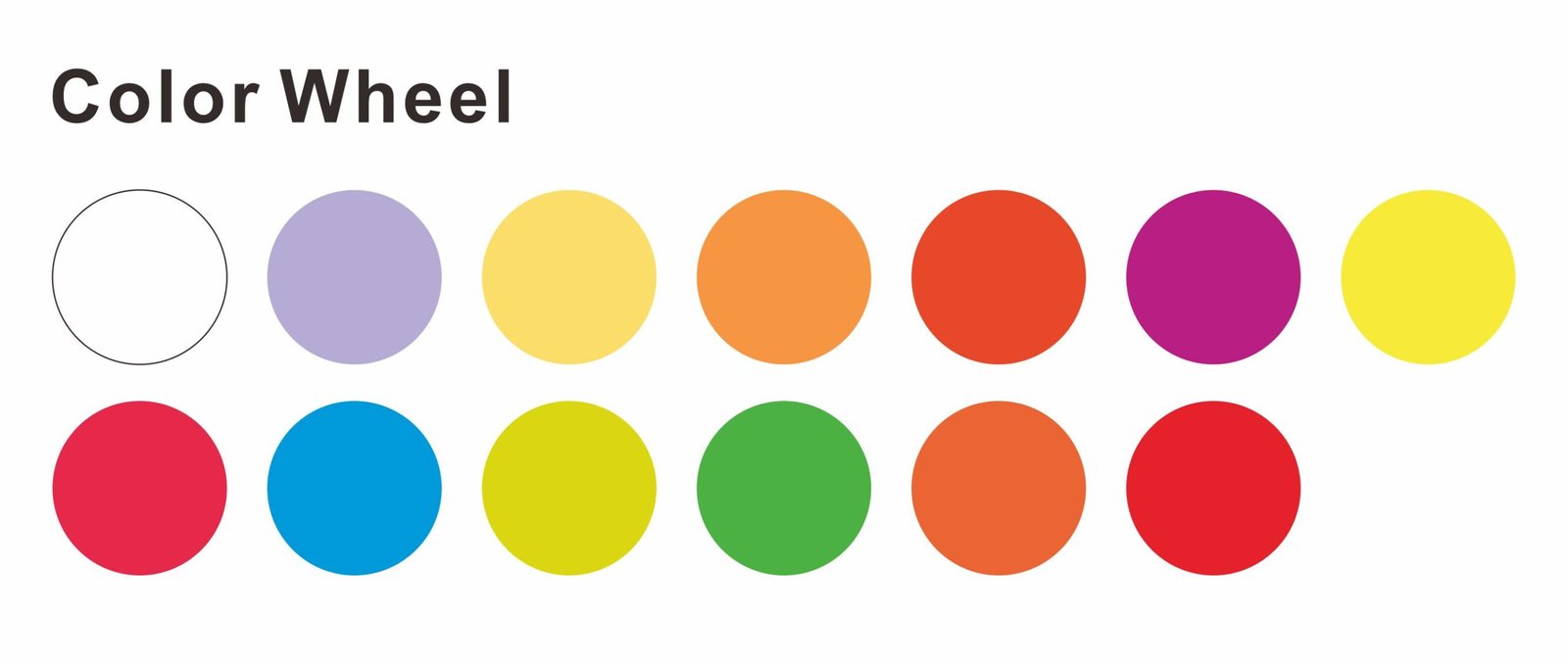

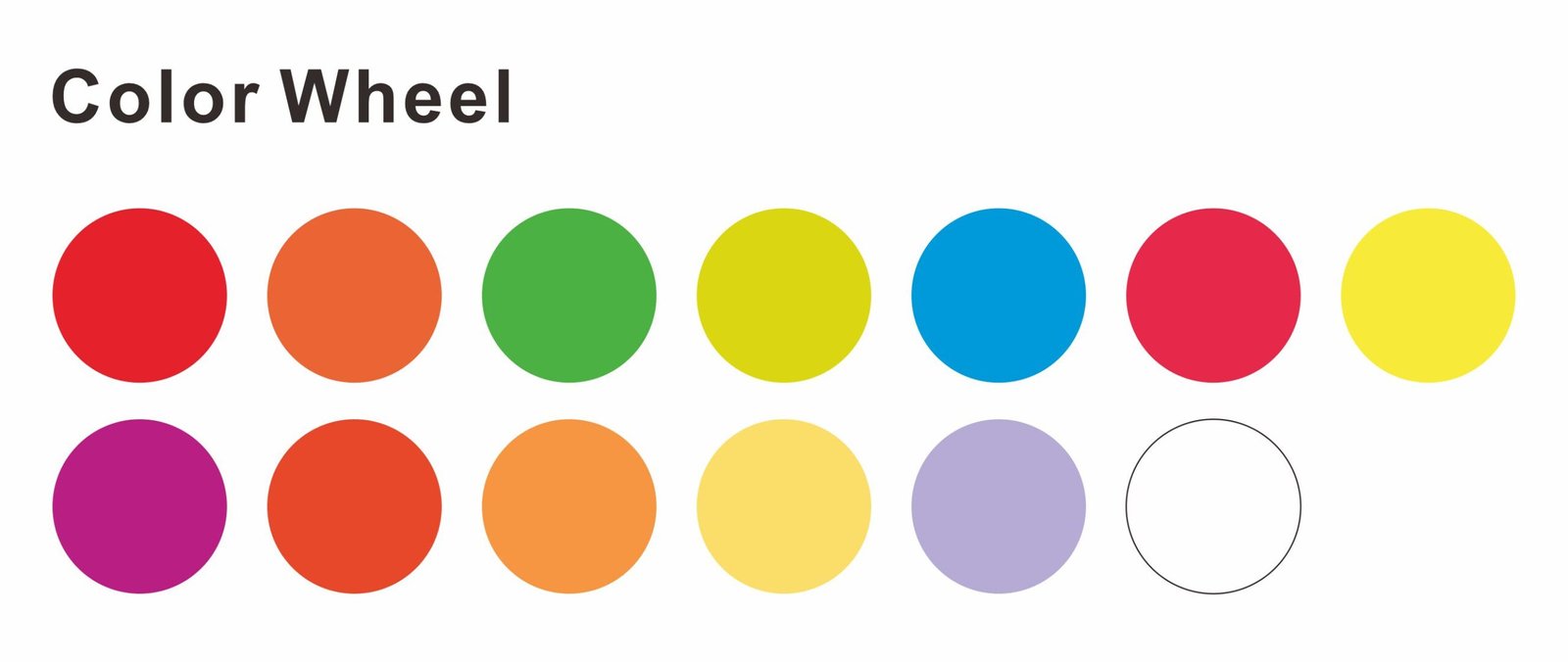

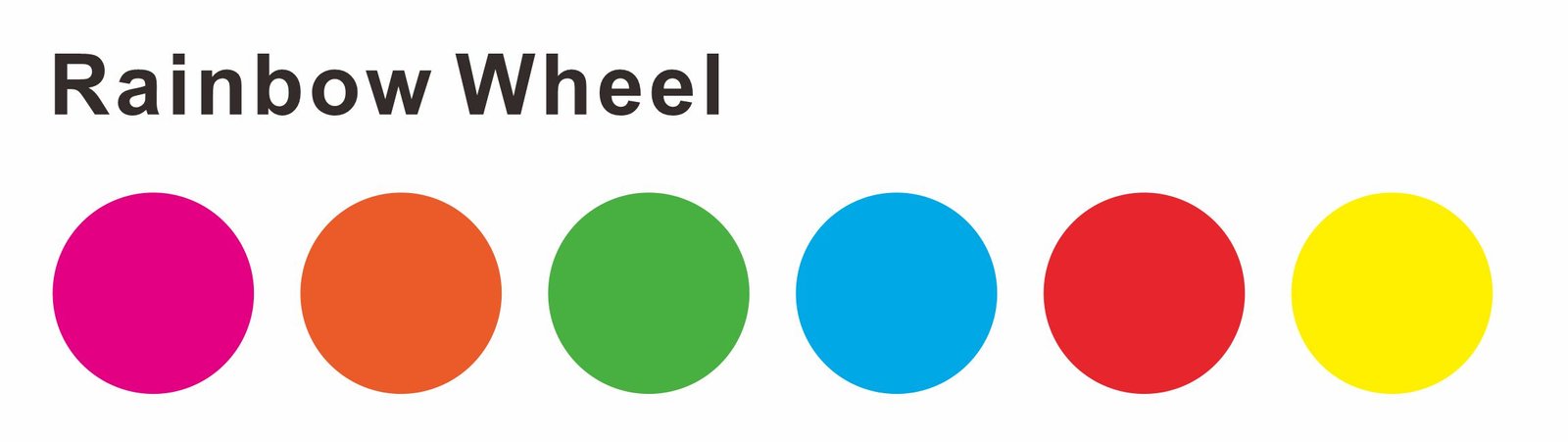

Color wheel scaledRainbow wheel

Optional Accessories



信号线



NAME: 3-PIN XLR Signal Cable
ORDER CODE:3-PIN Signal cable

电源线 1



NAME: PowerCon Cable
ORDER CODE : PowerCon Cable

灯钩jpg 1



NAME: Clamp
ORDER CODE : Bclamp,Mclamp,Sclamp

安全绳

NAME: Black Safety Chain
ORDER CODE : Bchain

omega

NAME: Omega Blacket
ORDER CODE :Lomega,Momega,Somega

flight case

NAME: 2 IN 1 FLIGHT CASE
ORDER CODE : 2IN1 FC
