Overview

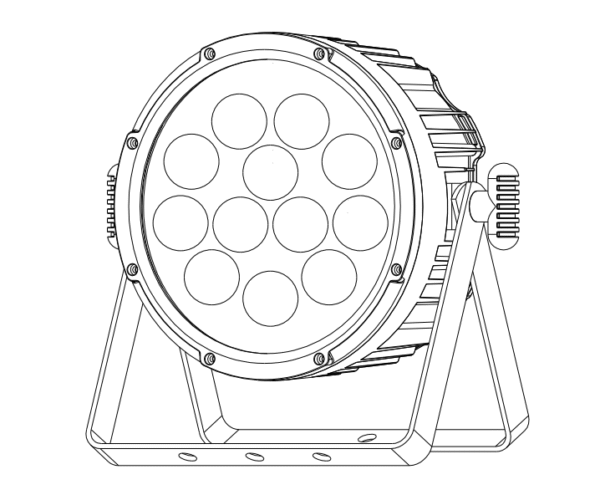

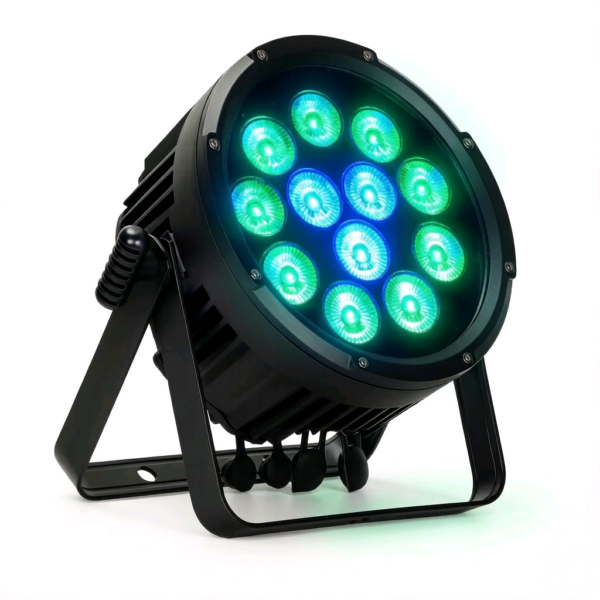

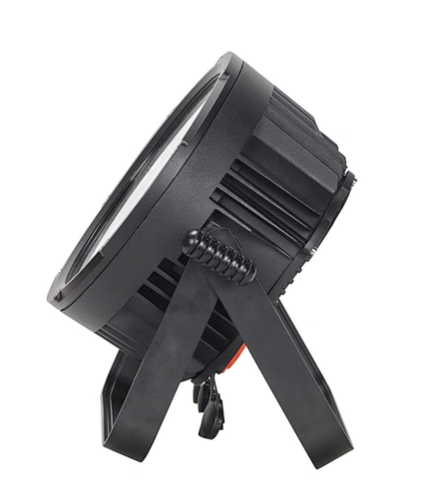

IP65 12x10W Par can is an outdoor LED stage lighting, featuring 12x10W RGBL LEDs,it is an impressive LED par can with super light weight design.

This powerful par can light is a specialized stage or decorative lighting fixture feacturing 12 LEDs circle zone individually controlled, designed to create dynamic visual effects and patterns,often used for clubs,events,and architectural lighting.Key features include full RGBL color mixing,multiple control modes,impressive fade-color setting,and flexible installation options,making them versatile for various entertainment and decorative purposes.

IP65 Protection rate, is suitable for indoor&outdoor applications.

Technical & Specification

Model

Model Name: IP65 12X10 PAR CAN
Model Code: PC-1210IP

Light Source

Light Source: 12X10W RGBL LEDs
Life Expectancy: 50,000 hours

Optical System

Beam Angle: 8°

Control

4 touch button control panel
Display: 1.8 inch display
Protocols: DMX512,sound activated or auto operation
Control Channels: 39/25/8/6
Firmware Upgrade: Upgrade via DMX link

Other Effects

Outstanding strobe effect with variable speed
Flicker-free management
Smooth Dimmer: 0~100%(4 user selectable dimming curves)
Pulse effect
Strobe:1-30Hz
Each Pixel Control
Pure smooth Color Mixing
Color temperature linear up and down in 1800K-10000K
Different kinds of preset macro effects with variable speed
Impressive cross-fade effect
Outstanding strobe effect with variable speed
900-25K LED PWM frequency
DMX recorder and manual memory function

Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 140W
Power In/Out: IP65 power connector IN/OUT
Data In/Out: IP65 3-pin XLR connector IN/OUT

Housing

Material: Aluminum die-cast
Finishing:Matt black
IP Rate: IP65
Net Weight: 4.4 kgs(9.7 lbs)
Gross Weight: 5.4 kgs (11.9 lbs)

Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management

Work Environment

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -10°C
Protection Rating: IP65

Approvals

CE compliant
RoHS compliant
