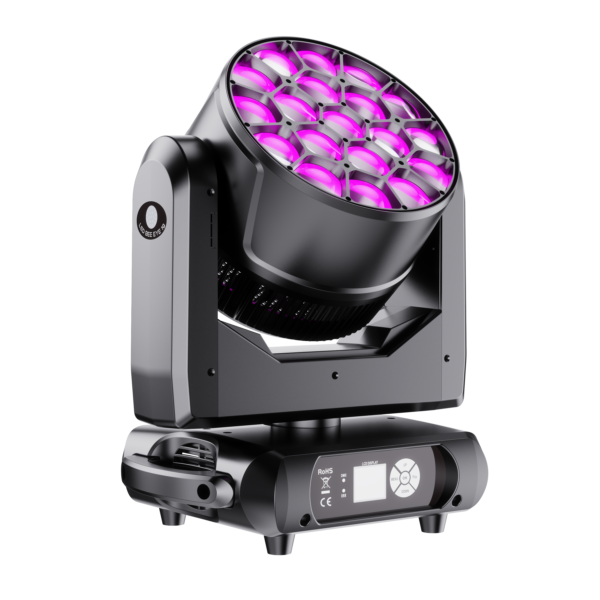

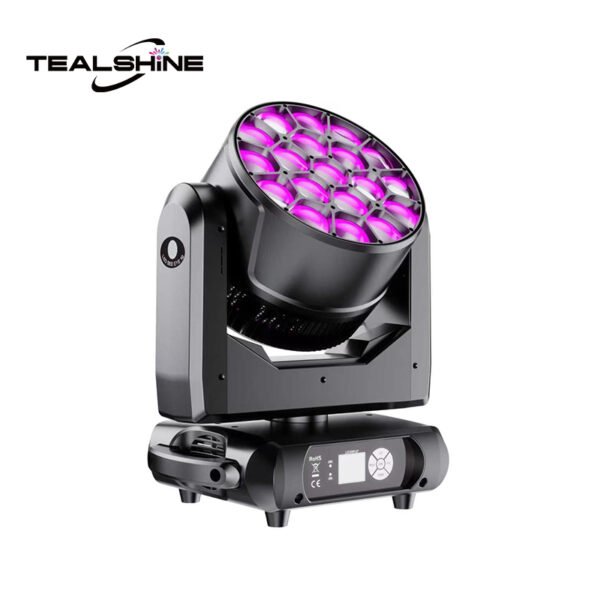

IP20 19x40W BEE EYE WASH ZOOM

Light Source19X40W RGBW LED
LED Life Expectancy50,000 hours
Beam Angle6°-60°
Protection RateIP20
Product Dimension285*210*480mm
Net Weight 14 kgs (30.9 lbs)



Edit Content
1 scaled

Overview

IP20 19X40W moving head wash zoom is an indoor LED effect light, featuring 19x40w RGBW LEDs,it is an impressive LED wash light with super light weight design.

This latest stage light is a specialized stage or decorative lighting fixture,featuring petal-like effect,each pixel control,designed to create dynamic visual effects and patterns,often used for backdrops,events,and architectural lighting.Key features include 19x40w RGBW led,multiple control modes,energy efficiency,and flexible installation options,making them versatile for various entertainment and decorative purposes.

IP20 Protection rate, is suitable for indoor applications.



Technical & Specification



Model

Model Name: IP20 19x40W BEE EYE WASH ZOOM
Model Code:TS-1940BE



Light Source

Light Source: 19X40W RGBW
Life Expectancy: 50,000 hours



Optical System

Beam Angle: 6°-60°



Control

4 touch button control panel
Display: 1.8 inch LCD display
Protocols: DMX512,sound activated or auto operation
Control Channels: 114/102/38/26



Other Effects

Dimming: 0~100%
Each pixel control with strip effect
Front lens can rotate to create Petal-like effect
Different kinds of preset macro effects with variable speed
Outstanding strobe effect with variable speed
Pure smooth Color Mixing
CTO linear 2500K-8000K
Preset static patterns
Preset dynamic patterns with variable speed
Preset dynamic color macro with variable speed
1-30Hz shutter/strobe effect with variable speed
Preset pulse strobe effect with variable speed
Random strobe effect with variable speed







Electrical and Connectors

Input Voltage Range: 90-260V AC,50/60Hz
Power Consumption : 800W
Power In/Out: IP20 power connector IN/OUT
Data In/Out: IP20 3-pin XLR connector IN/OUT



Housing

Material: Metal+Nylon Plastic
Finishing:Matt black
IP Rate: IP20
Net Weight: 14 kgs(30.9 lbs)
Gross Weight:16 kgs (35.3 lbs)



Cooling System

Advanced cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management



Work Environment

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -10°C
Protection Rating: IP20



Approvals

CE compliant
RoHS compliant



1 scaled











Optional Accessories



信号线



NAME: 3-PIN XLR Signal Cable
ORDER CODE:3-PIN Signal cable

电源线 1



NAME: PowerCon Cable
ORDER CODE : PowerCon Cable

灯钩jpg 1



NAME: Clamp
ORDER CODE : Bclamp,Mclamp,Sclamp

安全绳

NAME: Black Safety Chain
ORDER CODE : Bchain

omega

NAME: Omega Blacket
ORDER CODE :Lomega,Momega,Somega

flight case

NAME: 2 IN 1 FLIGHT CASE
ORDER CODE : 2IN1 FC
